Desktop Wave Soldering Machine DWS-200
Desktop Wave Soldering Machine DWS-200

Desktop Wave Soldering Machine DWS-200

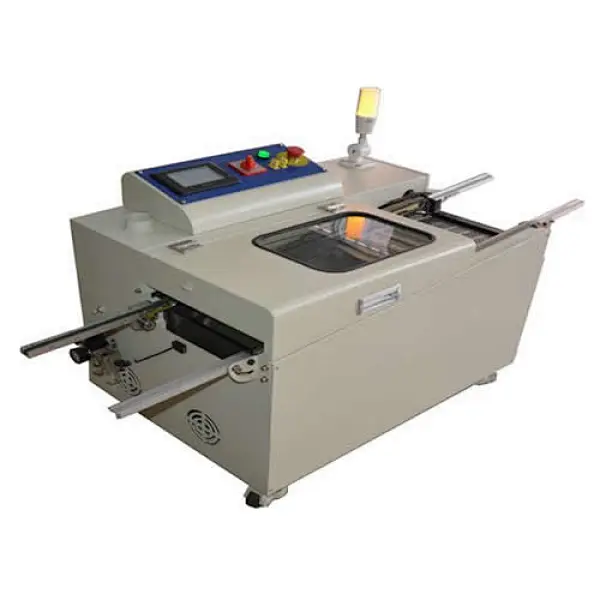

DWS-200 is a desktop compact wave soldering machine with CE certification
Independent speed control of flux, preheating and wave soldering
Preheating delay time function
Chain conveyor system for soldering with pallet
Foam spray system
Infrared panel for preheating
Stainless steel dual wave nozzles
Stainless steel solder pot with 50kg capacity only
Titanium dual wave nozzles & solder pot (Option)

Load pallet process use flatness belt to drive.

● Load pallet process use flatness belt to drive.

Preheating and wave soldering process use 5mm pin chain to transport.

● Preheating and wave soldering process use 5mm pin chain to transport.

The bottom of pallet is designed with groove.

● The bottom of pallet is designed with groove. During the pallet transport , the groove is stuck into the pin chain, making the pallet transportation more stable.


Form spraying system. It is consist of foamed tube and compressed air and saved flux.

● Form spraying system. It is consist of foamed tube and compressed air and saved flux.

Add a air knife behind the foaming box to make the spraying more evenly.

● Add a air knife behind the foaming box to make the spraying more evenly.

One bottom preheating zone.

● One bottom preheating zone. The heater could be take out for the easy maintenace.

Using infared heating plate for preheating , makes heating more evenly.

● Using infared heating plate for preheating , makes heating more evenly.

● Temperature:room temperature~260℃(adjustable) DWS-200 can set the preheating delay time to ensure PCB 100% preheating as standard wave soldering machine .

Solder pot and wave nozzles is made by titanium .

● Solder pot and wave nozzles is made by titanium .

● Independent speed control of wave soldering, different than preheating process.

Drawer design of solder pot is easy to replace and maintain.

● Drawer design of solder pot is easy to replace and maintain.

Drawer design of solder pot is easy to replace and maintain.

● Drawer design of solder pot is easy to replace and maintain.

Included solder pot trolley for replace and maintain.

● Included solder pot trolley for replace and maintain.

The cooling system in the exit is consist of two computer fan.

● The cooling system in the exit is consist of two computer fan.

Drawer design of solder pot is easy to replace and maintain.

● Drawer design of solder pot is easy to replace and maintain.

Pallet.

● Pallet.

All the electrical components and PLC, connector, solid-state relay, disconnector, stepper motor have CE certification.

● All the electrical components and PLC, connector, solid-state relay, disconnector, stepper motor have CE certification.

 Touch screen and PLC controlling system.

● Touch screen and PLC controlling system.

User friendly interface is easy to operate. The temperature could setting/saving/modify/preheating delay time on the screen directly.

● User friendly interface is easy to operate. The temperature could setting/saving/modify/preheating delay time on the screen directly.

PLC and touch screen controlling system realizes that easy to modify temperature.

● PLC and touch screen controlling system realizes that easy to modify temperature.

DWS-200 Desktop Wave Soldering Machine controlled system and electric system:

DWS-200 Specification:

Model

DWS-200

PCB width

50-200MM

Soldering mode

Pallet ( PCB size 50*50-200*200MM)

Solder volume

70kg

Dimension

1300(L)*580(W)*730(H)

Net weight

145kg

Operation mode

touch screen+ PLC

Transport speed

0.3M-0.9M/min

Flux tank capacity

2L

PCB transfer direction

from left to right

Spraying mode

foam type

Preheating zone

one separately bottom preheating zone

Preheating power

1.8 KW / part

Preheating temperature

room temperature~260℃

Solder pot materials

Titanium(Standard)

Solder pot heater

heating tube

Heater power

1.2KW*2PCS

Solder pot temperature

room temperature~320℃

Wave quantity

Dual wave

Max. wave height

8mm

Top Clearance

40mm

Solder pot heating-up time

80 mins

Solder pot lift

manually

Solder pot in and out

manually

Total power

4.5KW

Air supply

3-5BAR

Power supply

single phase 220V 50HZ
