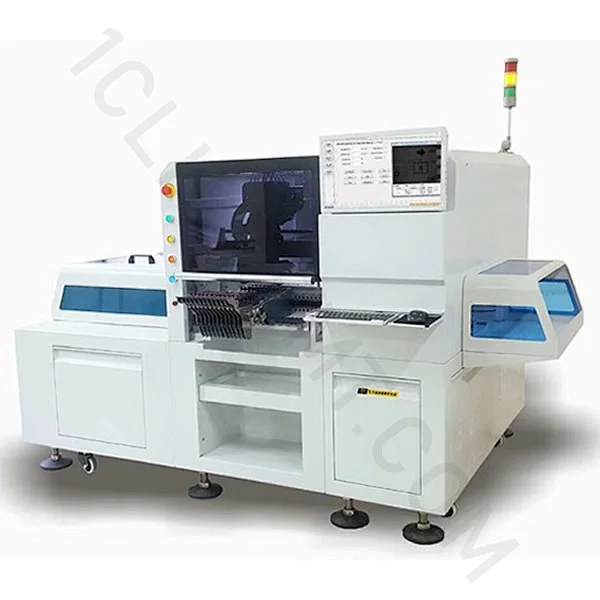

Inline LED Pick&Place Machine NBT-306i
Inline LED Pick&Place Machine NBT-306i

Inline LED Pick&Place Machine NBT-306i

NBT-306i Inline P&P machine Adopt  light  weight head design  with six spindles and  flying cameras , the efficiency of mounting and accuracy can reach  average mounting speed of 30,000 cph , ,and it handle the board size up to 1200*410mm with minimum 0603 to maximum 15*15mm components.

NBT-306i Dimension.jpg

Inline LED Pick&Place Machine NBT-306i Features:

●  NBT-306i inline P&P machine adopt light weight head with six spindles and flying cameras , the efficiency of mounting and accuracy can reach average mounting speed of 30,000 cph , ,and it handle the board size up to 1200*410mm with minimum 0603 to maximum 15*15mm components.

●  X/Y axis adopt Panasonic AC servo-motors and Japan made ball screw and guide rials, which ensures higher mounting speed and long service life.

●  Six independent spindles with high speed serial communicaiton and light head structure ,ensure the mounting stablity.

●  On the fly image recognition technology maximizes the part placement speed by minimizing the time to move between the pickup position and placement position and by reducing the recognition time to almost zero.

●  Automatic nozzle changing function maximizes the part placement speed.

●  1200mm mounting platform supporting 2 section independent mounting process to minimize the PCB exchanging time.

●  Intelligent software automatically optimize the nozzle and feeder distribution and mounting route to maximize the mounting speed, easy to operate.

●  Equipped with vacuum pump to ensures the stable picking and placing process and reduce the air consumption in factory.

Inline LED Pick&Place Machine NBT-306i Specification:

 MACHINE SPECIFICATION

Technical Parameter

PCB dimension

  PCB size

  maximum size     (L)1200 x (W)410mm
  minimum size   (L)70 x (W)70mm
  Conveying height   900±20mm
  PCB conveyance direction   Left to right

Mounting parameter

  Mounting velocity

  theory speed   45,000 CPH
  average speed   30,000 CPH

  Mounting accuracy

  CHIP-LED   ±0.05mm
  Mounting species   LED   LED lights, such as corry, philips, osram and imitated lumen;
  CHIP             0603、3014、2835、5050、□15mm IC, max height : 14mm

System parameter

  Identification equipment   On the Fly image recognition technology
  Suction head type   6 suction nozzle
  Feeder type   8mm、12mm、16mm、24mm
  Quantity of feeder   Front sie : Max 22pcs of 8mm electronic feeder , back side: max 10pcs of 8mm electronic feeder
  Main operating system   Win 7
  Control system   Industrial computers
  Drive system   AC servo motor with control system

Utility

  Working power supply   1 Phase  AC220V, 50HZ
  Rated power   2000W
  Work pressure   80 psi(0.5 Mpa)
  Appearance of size   (L)2500x (W1500 x (H)1750mm
  The product weight   About 1200 KG

Inline LED Pick&Place Machine NBT-306i Includes

●   X/Y/Z/R motion system with 6 spindles*1set

●   Industrial PC, monitor, Keyboard, mouse  *1set

●   Win7 OS *1set

●   Head PCB Camera  *1pcs

●   On-the fly image recoginition camera * 1set

●   1200mm mounting platform *1set

●   Vacuum pump *1set

●   light tower *1pcs

●   Standard nozzle * 24 pcs

●   8mm Feeder * 6pcs

●   12mm Fedder * 6pcs

Optional parts :

●    Suction nozzle

●   8 mm  feeder

●    12mm feeder

●    16mm feeder
