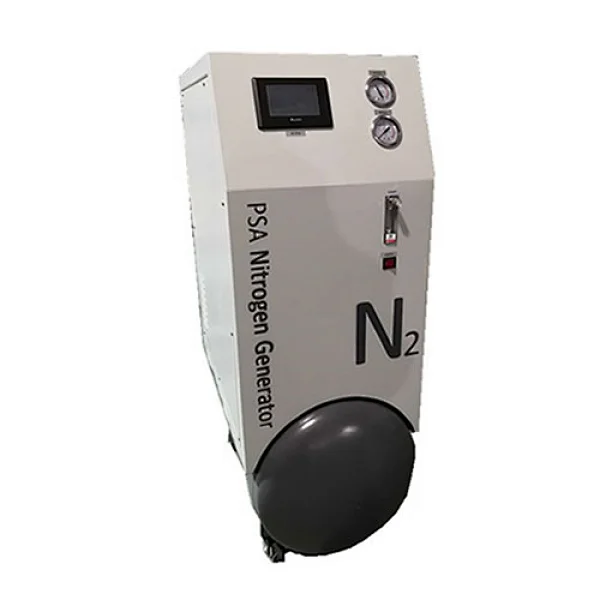

Nitrogen Generating System SelMate-SD series
Nitrogen Generating System SelMate-SD series

Nitrogen Generating System SelMate-SD series

Pressure Swing Adsorption Principles: Pressure Swing Adsorption(PSA) is a form of advanced air separation technique that uses high quality Carbon Molecular Sieve(CMS) and pressure swing adsorption principles to produce high purity nitrogen gas The PSA technique is based on the fact that CMS adsorption rate for nitrogen and oxygen molecules are different. Oxygen molecules have smaller did -meters and can be easily adsorbed by the CMS while the nitrogen molecules can hardly pass through the CMS due to their larger diameter and much slower diffusion rate.

Nitrogen Generating System SelMate-SD series Features:

● Multi-tube structure efficiently prevents movement of Carbon Molecular Sieve(CMS),Attrition is kept to a minimum,thereby prolonging the life span of the CMS.

● N2 purity could reach as high as 99.999%.

● Every adsorption tower is installed with an advanced control system. Also, our special 1Click design controls the air flow to enhance the efficiency of the generator system.

● Ultra-frequency vibration filling technique enables closer and tighter packing of Carbon Molecular Sieve, to minimise movement.

● Nitrogen machine with compressor and filter,small area,save space.

SelMate Series Nitrogen Generating System Specification

Model

Dimensions(mm)

N2 flow rate (L/H) Powe
99.5% 99.9% 99.99% 99.999%

SelMate-SD270

400*650*1000

750 400 270 150 750W

SelMate-SD540

400*850*1300

1500 900 540 350 1500W
