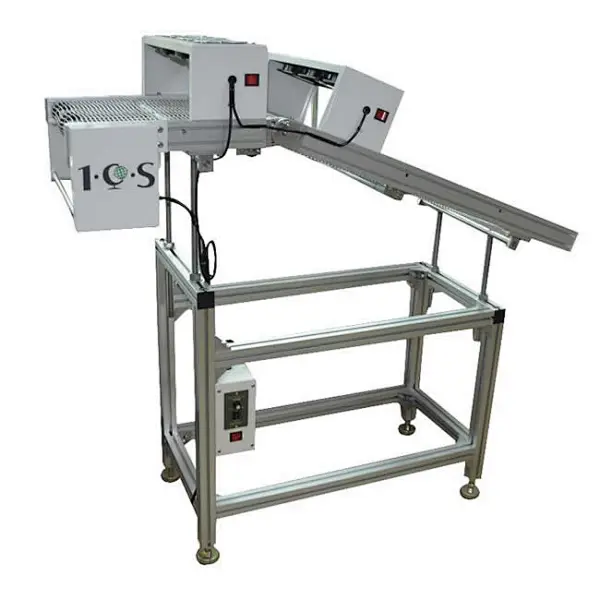

Wave Soldering Machine Unloader MWN-1300
Wave Soldering Machine Unloader MWN-1300

Wave Soldering Machine Unloader MWN-1300

The mesh belt unloader adopt quality motor with speed controller ,guide rail with stainless steel mesh Belt and driving mechanism, runs smooth and low noise, equipped with 2 bottom cooling fan, it is very suitable to match wave soldering machine.

Wave Soldering Machine Unloader MWN-1300 Features:

1. Aluminum conveying guide rail.

2. 40 x 40 mm aluminum profile ,thickness :1.5mm.

3. 400mm stainless steel mesh belt.

4. Conveying angle and height is adjustable.

5. Equipped with quality 60W conveying motor with speed controller, runs smooth and low noise.

6. Equipped with 2 groups of bottom cooling fan.

Wave Soldering Machine Unloader MWN-1300 Specification:

Model

MWN-1300

Conveying width

Max 400mm

Inlet conveying height

1200±100mm

Outlet conveying height

800±100mm

Conveying belt

Stainless steel mesh belt

Conveying speed

0-2M/min

Power supply

1P 220V50/60HZ

Overall dimension

L=1300mm W=530mm H=1200mm

Power

200W
