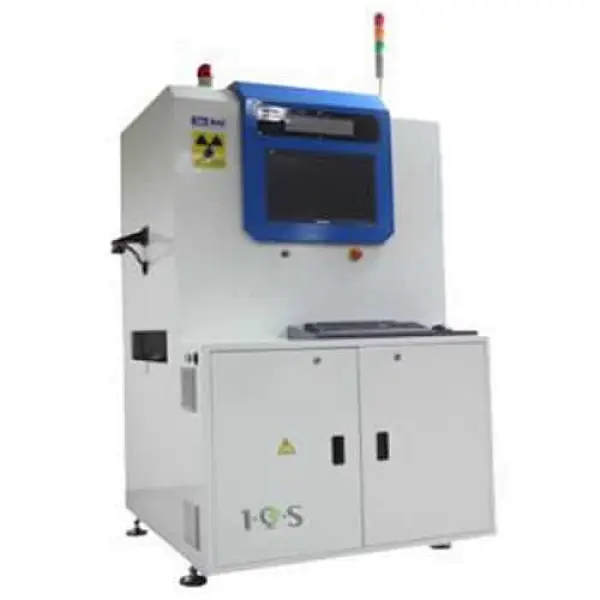

This X-RAY chip counter machine can greatly improve the production efficiency, to realize the automation and electronic components inventory management information, the main principle through X-ray penetrate the imaging principle of image information, for items of the SMT production materials, nondestructive testing, image import artificial intelligence algorithms computing, automatic rapid calculation material the actual number of the material.

Online X-RAY Chip Counter Machine X-Chip-A350.jpg

Working Process

Working Process

X-RAY Counter Principle

X-RAY Counter Principle


Performance Standard

Performance Standard

Software Neuron Algorithm

A neural network is usually composed of a wide range of neurons. The overall behavior of a system depends not only on the characteristics of a single neuron, but may also be determined by the interaction between the elements and the connection. Safety cover with interlock for moving parts , machine will automatically stop when safety cover open.
Software Neuron Algorithm
The nonlinear relationship is a common characteristic of the nature. The wisdom of the brain is a nonlinear phenomenon. The artificial neuron is in the activation or suppression of two different states, this kind of behavior in mathematics is a kind of nonlinear artificial neural network. Artificial neural networks are adaptive, self-organizing and self-learning

Online X-RAY Chip Counter Machine X-Chip-A350 Specification

Reel size

X- Chip-350

X-Chip-A350 X-Chip-150

Scanning Size

180mm-380mm (400mm optional)

180mm-330mm

Speed

15 seconds

25 seconds 20 seconds 35 seconds 20 seconds

X-ray TUBE

TUBE Max Volt

80 KV

100 KV

TUBE max current

4.5 mA

TUBE max power

350 W

150 W

Reel size

Minimal size of the CHIP 0201/01005

Reel height

8mm-45mm

8mm-30mm

Code Scanning Way

Manually scanning/CCD automatic scanning(optional)

Database

Connectible to ERP system or MES system

Sample Conveying

Front Inlet and outlet

Left to right/Right to left Front Inlet and outlet

Equipment Size

1300mm(L)x1200mm(W)x1970mm(H)

1340mm(L)x1545mm(W)x1970mm(H)

Power Supply

220VAC±10% 50/60Hz

Power

3KW

Air Pressure

0.5Mpa

Working Temperature

<40℃

Relative Humidity

Standard 70%@32°

Safety

Comply to national safety scope - 1u Sv/h

Online X-RAY Chip Counter Machine X-Chip-A350 Specification

Item Parameter Traditional X-Chip-150 X-Chip-A350

Labour that is replaced

Condition

Counting Performance Counting time/reel (s) 78 15 20
Efficiency (%) 40 80 100
Data input to system 12~15 s N/A N/A
Time/reel (s) 233 22 20
Time/day 340 3200 3960
Regular Counting Total reel per day
Total shift
Person per day 5~6 1 0.5
Persons needed for 2 shift 10~12 2 1
Cost of Labour & Equipment Cost accounting Labour cost (person/month) 680~760USD 130000USD 145000USD
Technician (person/month) 834~985USD
Total labour cost per year 127272USD
Cost for occupation, power and maintenance/repair 100000
Managing cost

Analysis of investment returning

Need about 10 months to return the investment

Feeding machine FM-200 Specification

Reel size

Diameter of 7 "13" 15"

Reel height

8mm-85mm

Speed

10S

Feeding mode

There are two stations, each of which can cache 50 pieces of reel (calculated at 10mm per reel), and the two stations are recycled.

Function introduced

Automatic continuous to intelligent point feeding machine for automatic equipment, connected to X-Ray chip counter machine.

Weight

380KG

Equipment Size

L1060*W940*H1600

Power Supply

220VAC 50/60HZ

Power

600W

Air Pressure

0.4~0.6Mpa

Working Temperature

<40℃

Relative Humidity

Standard 70%@32°

Labeling machine LM-300 Specification

Reel size

Diameter of 7 "13" 15"

Reel height

8mm-85mm

Speed

10S

Optional

The new barcode is attached to the tray and covered with the old bar code by visual identification of the old barcode coordinates.

Weight

350KG

Equipment Size

L850*W970*H1400

Power Supply

220VAC 50/60HZ

Power

800W

Air Pressure

0.4~0.6Mpa

Working Temperature

<40℃

Relative Humidity

Standard 70%@32°
