BGA Rework Station ECO-S550
BGA Rework Station ECO-S550

BGA Rework Station ECO-S550

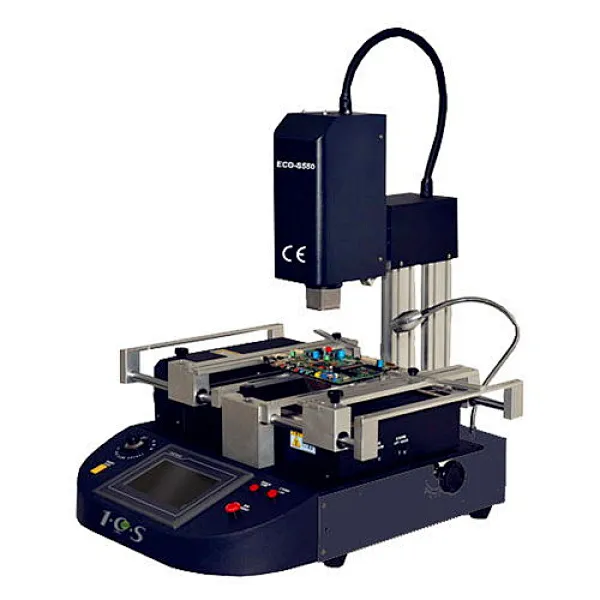

ECO-S550 is an economical BGA rework station with touch-screen control, 3 individual heating, programmable up/bottom heating, laser pointer assistant for manual position. Can satisfy most of BGA rework requirement.

Positioning bracket.JPG

Easily-adjusted PCB positioning bracket
PCB positioning is realized by V-shaped slots Flexible, simple and portable universal fixture can protect PCBs, prevent components along PCB edges from damage and PCBs from deformation, and can adapt to the rework of encapsulated BGAs with various sizes. Maximum PCB size to be held is 370mm×370mm and the minimum PCB size is 20mm×20mm.

Independent three-zone temperature control system.JPG

Independent three-zone temperature control system

Upper heating head and mounting head are designed in an integrated way with the functions of automatic soldering and automatic mounting.The enclosed laser alignment device can help realize fast alignment.

Fast cooling system.JPG

Fast cooling system

High-power cross-current fan can cool PCBs and the bottom IR preheating zone rapidly, thus preventing PCBs from deformation and ensuring higher soldering quality.

Air adjuster.JPG

Upper temperature zones’ air adjuster can control flow accurately.

Upper temperature zones’ air adjuster can control air flow accurately, thus preventing small BGAs or surrounding components from being blown away by too high flow.


K-type closed-loop thermo-couple controller

High-precision K-type thermocouple is used as closed-loop controller with an external temperature interface to realize precise temperature measurement.

Protection for safety.JPG

Protection for safety

Unique hot-air nozzle and mounting head’s dual-pressure sensor protection ensure that the BGA chips are not damaged by pressing.

Operating system.JPG

Multi-function humanized operating system

HD touch screen man-machine interface is used and PLC controller is adopted. It can store groups of users’ temperature curve data. Password protection and modification are available. When it is working, temperatures are displayed on touch screen in curves for instant curve analysis.

Self-defined temperature curve unit.JPG

Self-defined temperature curve unit

6 zones’ temperatures are controlled,temperatures times and slopes at upper heaters, lower heaters and IR pre-heaters and coolers can be set separately.

ECO-S550 Specification

PCB Specification

PCB Size (Minimum)

20*20mm

PCB Size (Maximum Allowable)

380*380mm

PCB Size (Recommended Max.)

350*200mm

PCB Thickness

0.5mm-6mm

Component Specification

Component Size

MAX 50*50mm MIN8*8mm

Minimum BGA Ball pitch

0.3mm

Placement Precision

Manual Positioning

Heating System

IR Bottom-heater

380*290mm(2700W)

Component heater (Top)

Hot Air 800W

Component heater (Bottom)

Hot Air 1200W

Temperature Control

K-Type Thermocouple; Closed Loop PID

Machine Specification

Main Power Source

Single phase AC 220V 50/60Hz

Total Power Consumption

4800W

Machine Dimensions

L630*W630*H750mm

Net Weight

50KG
