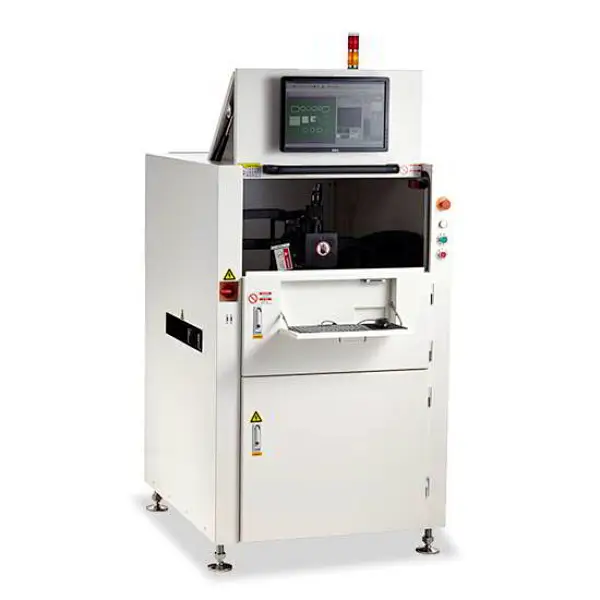

Inline SPI Machine S-510I
Inline SPI Machine S-510I

Inline SPI Machine S-510I

Inline SPI Machine S510I were designed to make in-house Inline SPI , This series SPI apply to small and normal size PCB , and satisfy customers with small investment to inspect printing quality, moving convenience, simple operation and high accuracy,  the highest cost performance options for customers. and acceptable by CE certification.

Phase modulation profiler metry.jpg

Phase modulation profiler metry
Through the phase modulation of full light spectrum, provide a height resolution down to (0.37um), the number of 4-8 times sampling ensure high repeatability . Use high-precision ball screw and linear guide rail to realize perfect detection result.

3D Diffuse lighting.jpg


3D Diffuse lighting & active RGB 2D light source
The use of synchronous structure light perfect solve the influence of the shaded part in solder paste inspection. Based on RGB two-dimensional light source, perfect the base board of high contrast. Like black solder mask and ceramic PCB, etc. Meanwhile, we can provide 2D/3D solder paste color images.

Telecentric Lens is good for warpage compensation , capability is ±5mm

ØTelecentric Lens is good for warpage compensation , capability is ±5mm

High resolution image processing system.jpg

High resolution image processing system

5M pixel industrial CCD to ensure that the extremely small components and high precision SMT (01005) were stable and rapid detection.

5M pixel industrial CCD inspection speed up 25% than other brand

Provide 8um/10um/12um/15um/18um.20um, such as a variety of precision.

Z axis real time and static vision compensation capability.jpg

Z axis real time and static vision compensation capability

The Characteristics of PSLM provide the real-time dynamic tracking on the rigid PCB, for flexible PCB, use static vision compensation to perfectly solve the warpage problems of flexible PCB.

Glue Inspection.jpg

Inspection

PLSM 3D measurement can reach +/-1200um with RGB Tune function is capable of high accurate measuring of none transparent glue proces.

Including missing, overflow, excess, shape and combination view of 2D/3D images

Red Glue Inspection is available (Option)


Multi Array Mark Detection

For multi-array PCB mark, use dynamic capture function, there is no need to capture image one by one and reduce detect time dramatically.

Bad mark on the fly detection function.jpg

Bad mark on the fly detection function.

Automatically on the fly detect PCB bad mark, feed the info into pick and place machine in real time control loop.

Three stage mapping traceability.jpg

Three stage mapping traceability.

Collaborate with pre and post AOI in SMT line, forms close loop process and quality control system, and capable to integrate and synchronize the data to customer ERP quality module.
