Lead Free Wave Solder Machine M400
Lead Free Wave Solder Machine M400

Lead Free Wave Solder Machine M400

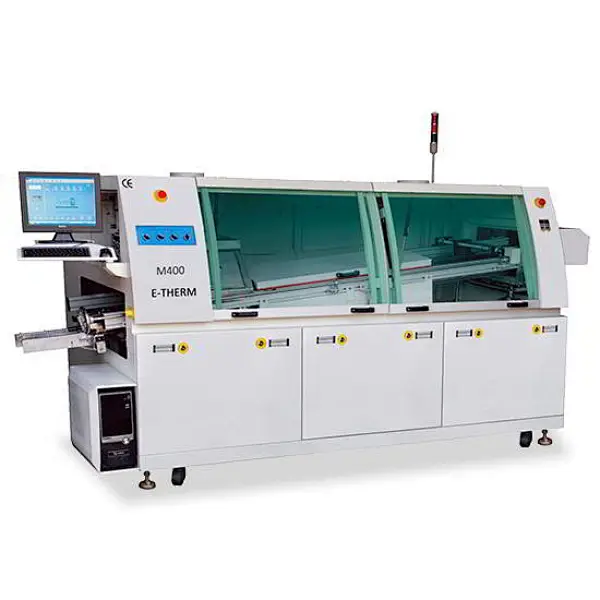

M400 is a CE certificated compact Lead Free Wave Solder Machine with inline finger conveyor, stepper driven spraying fluxer, hot air preheat zone & Ti dua wave solder pot.

In-loading system

In-loading system

Which can connect with the insertion conveyor directly, no need other connecting conveyor,With rule for width indicator, with angle meter for conveyor angle indicator.

Conveyor system

Conveyor system

Ti fingers. In this machine the same conveyor rail can accommodate for both L finger and Hook finger, customer can choose any of them or mixed them.

Center support option

Center support option

Optional with center support system, it can support the PCB all through the machine and position adjustable.

Width adjustmen

Width adjustmen

4 group of width adjustment system, grantee the paralizm of the conveyor.

Finger option

Finger option

Optional with L finger or L mixed with V finger.

Special finger for heavy loading

Special finger for heavy loading

Optional with heavy load finger which made of 5mm Ti, it can transport PCB weight as 20kgs/unit.

Fluxing sysytem

Fluxing sysytem

Sprayer's flow, flux shape, automization etc adjustable, so to meet a perfect flux applying performance.

Fluxing pump

Fluxing pump

Flux is adding via a SMC pump automaticlly, save operator's time and job.

Movement of fluxing system

Movement of fluxing system

Stepper motor/driver, linear rail /slider etc, make sure the spray nozzle moving at needed speed smoothly.

Standard equipped with 2 hot air convection preheating zone

Preheating system

Standard equipped with 3 hot air convection preheating zone at bottom, provide enough heat to active the flux performance.

Preheating option

Preheating option

Optional to add 3rd upper preheating zone, minimize the PCB up/bottom side

temeprature difference and reduce the PCB deformation.

Soldering system

Soldering system

Fully Ti material made solder pot, even for impeller, shaft, nozzle, and bolts. All is

Ti and 100% capable for Lead free. Two wave nozzle, one is for turbulent wave and

another is for flat wave.And solder pot in & out automaticlly, upper & down manually.

Easy maintanence

Easy maintanence

Blower motor can be take out from upper side of machine, easy for maintenance.

Easy change between leaded and lead free solder pot.

Easy change between leaded and lead free solder pot.

Solder pot is equipped with quick connector and trolley, can easy change between

leaded and lead free solder pot.

Nitrogen option

Nitrogen option

Optional with N2 feeding system, enhance the solderbility and reduce solder

dross generation.

Easy operation software

Easy operation software

Full english version software, clean & clear interface which is very easy for

operators to learn. Less than 10 minutes know how.

Parameter saving

Parameter saving

All parameters can be save & edit under different PCB name. Easy to build

the reflow database for different PCBs.

Control system

Control system

Industrial PC and self developed controller for controlling system.

Electrial

Electrial

All brand electrical parts , such as Panasonic conveyor motor ,

Mitsubishi breaker , Schneider transducer etc all wiring

cetificated by CE.

SMEMA Connection

SMEMA Connection

Standardly equipped with SMEMA connector for inline production.

Package

Package

Dry partical with safty certification used in machine to avoid moisture,Vacuming

package for long distance shipping,Plywood case and metal frame for big case.

M400 - Specifications

Model

M400

PCB width

50-400MM

Solder pot capacity

390kg

Running power/general power

7.5KW/22KW

Machine dimension

3140(L)*1250(W)*1600(H)

Net weight

750KG

Controlling system

PC + PLC

Conveyor motor

1Ph 220V , 60W

Conveyor speed

200MM-1500MM/Min

Flux Volume

6.5 liters

Alcohol capacity

4.5 liters

Conveyor direction

Left to right

Spray method

Stepper motor drive

Sprayer

Stainless Steel Spray Nozzle

Preheating zone

2 individual bottom preheating zones

Preheating power

4kw/zone

Solder pot material

Ti

Solder pot heater

Cast iron

Heater power

1.2KW*5PCS

Wave number

dual waves

Wave type

Turbulent first wave

Melting time

90 minutes

Solder pot lift up&down

Manually

Solder pot in&out

Automatic

Finger cleaning pump

1PH 220V 10W

Finger type

Dual hook Or L finger

Finger material

Ti

Solder angle

5-7°

Air supply

3-5BAR

Power supply

3PH 380V 50HZ
