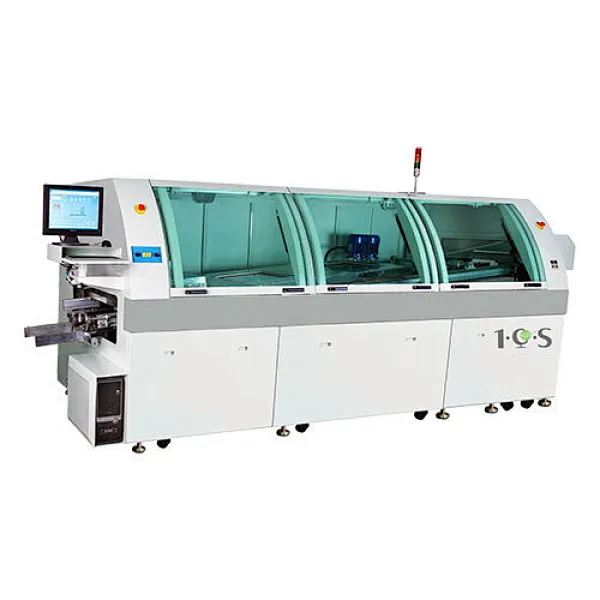

S400 is a CE certificated compact Lead Free Wave Solder Machine with inline finger conveyor, stepper driven spraying fluxer, hot air preheat zone & Ti dua wave solder pot.

In-loading system

In-loading system

Which can connect with the insertion conveyor directly, no need other connecting

conveyor,With rule for width indicator, with angle meter for conveyor angle indicator.

Conveyor system

Conveyor system

Ti fingers. In this machine the same conveyor rail can accommodate for both

L finger and Hook finger, customer can choose any of them or mixed them.

Center support option

Center support option

Optional with center support system, it can support the PCB all through the

machine and position adjustable.

Width adjustmen

Width adjustmen

4 group of width adjustment system, grantee the paralizm of the conveyor.

Finger option

Finger option

Optional with L finger or L mixed with V finger.

Special finger for heavy loading

Special finger for heavy loading

Optional with heavy load finger which made of 5mm Ti, it can transport PCB

weight as 20kgs/unit.

Fluxing sysytem

Fluxing sysytem

Sprayer's flow, flux shape, automization etc adjustable, so to meet a perfect

flux applying performance.

Fluxing pump

Fluxing pump

Flux is adding via a SMC pump automaticlly, save operator's time and job.

Movement of fluxing system

Movement of fluxing system

Stepper motor/driver, linear rail /slider etc, make sure the spray nozzle moving

at needed speed smoothly.

Preheating system

Preheating system

Standard equipped with 3 hot air convection preheating zone at bottom, provide

enough heat to active the flux performance.

Preheating option

Preheating option

Optional to add 3rd upper preheating zone, minimize the PCB up/bottom side

temeprature difference and reduce the PCB deformation.

Soldering system

Soldering system

Fully Ti material made solder pot, even for impeller, shaft, nozzle, and bolts. All is

Ti and 100% capable for Lead free. Two wave nozzle, one is for turbulent wave and

another is for flat wave.And solder pot in & out automaticlly, upper & down

automaticlly.

Easy maintanence

Easy maintanence

Blower motor can be take out from upper side of machine, easy for maintenance.

Easy change between leaded and lead free solder pot.

Easy change between leaded and lead free solder pot.

Solder pot is equipped with quick connector and trolley, can easy change between

leaded and lead free solder pot.

Nitrogen option

Nitrogen option

Optional with N2 feeding system, enhance the solderbility and reduce solder

dross generation.

Easy operation software

Easy operation software

Full english version software, clean & clear interface which is very easy for operators to learn. Less than 10 minutes know how.

Parameter saving

Parameter saving

All parameters can be save & edit under different PCB name. Easy to build the reflow database for different PCBs.

Control system

Control system

Industrial PC and self developed controller for controlling system.

Electrial

Electrial

All brand electrical parts , such as Panasonic conveyor motor ,

Mitsubishi breaker , Schneider transducer etc all wiring cetificated

by CE.

SMEMA Connection

SMEMA Connection

Standardly equipped with SMEMA connector for inline production.

Packing

Package

Dry partical with safty certification used in machine to avoid moisture,Vacuming

package for long distance shipping,Plywood case and metal frame for big case.

S400 - Specifications

Model

S400

PCB width

50-400MM

Solder pot capacity

390kg

Running power/general power

5-12KW/25KW

Machine dimension

4260(L)*1495(W)*1725(H)

Net weight

1500KG

Controlling system

PC + PLC

Conveyor motor

3Ph 220V , 90W

Conveyor speed

200MM-1800MM/Min

Alcohol capacity

4.5 liters

Conveyor direction

Left to right

Spray method

stepper motor and slider moving sprayer

Sprayer

Japan ST-6

Preheating zone

3 individual bottom preheating zones

Preheating power

4kw/zone

Solder pot material

Fully Ti

Solder pot heater

Cast iron

Heater power

1.2KW*10PCS

Wave number

dual waves

Wave type

Turbulence first wave and Lambda 2nd wave

Melting time

110 minutes

Solder pot lift up&down

Electrical switch

Solder pot in&out

Electrical switch

Finger cleaning pump

1PH 220V 10W

Finger type

Dual hook Or L finger

Finger material

Ti

Solder angle

5-7°

Air supply

3-5BAR

Power supply

3PH 380V 50HZ
