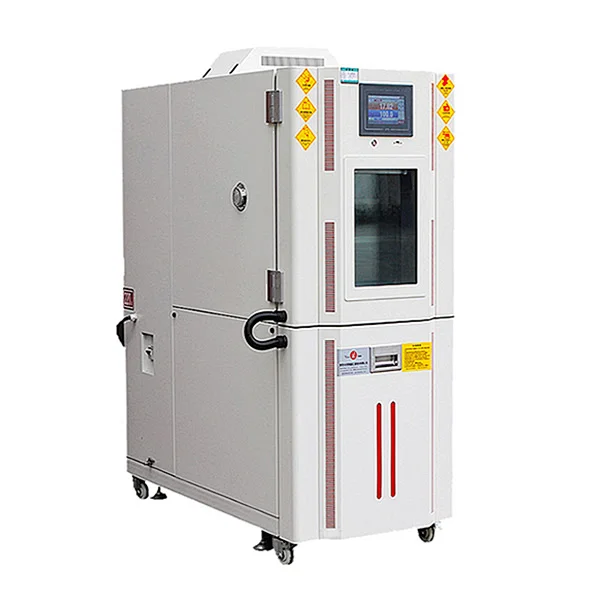

Programmable Fast Temperature Changing Chamber FTC Series Features : |
|
1.Programmable fast temperature changing chamber based onTHC series,it has fast temperature changing function. |
|
2.Professional temperature and humidity control software with profile record function, do not need additional profiler. |
|
3.Controller has Preventing electromagnetic interference function with SGS certificate. |
|
4. The refrigerant flow is controlled by servo control valve to save electricity 30%. |
|
5. Machine has Defrosting function(defrost every 800 cycle , defrosting 2 hours each time, integration test can reach 25% energy saving ). |
|
6.With vacuum glass observation window, directly monitor the test process effectively. |
|
7. Internal chamber is made of SUS 304 material . |
|
8. High quality parts ensures long service life of the machine, such as TECUMSEH compressor, Danfoss heat exchanger, ABB breaker etc. |
Programmable Fast Temperature Changing Chamber FTC Series
Programmable fast temperature changing chamber based on THC series,it has fast temperature changing function . it test the performance of heat , cold , dry , humidity resistance for material , it is suitable for test of electronic devices , instruments , plastic products , metal , food , chemical etc.
|
Programmable Fast Temperature Changing Chamber FTC Series Specification |
||||||
|
Model |
FTC-80 |
FTC-150 |
FTC-225 |
FTC-408 |
FTC-800 |
FTC-1000 |
|
WxHxD(cm)lnternal Dimensinos |
40x50x40 | 50x60x50 | 60x75x50 | 80x85x60 | 100x100x80 | 100x100x100 |
|
WxHxD(cm)External Dimensinos |
62x158x146 |
72x168x155 |
82x183x155 |
100x193x165 |
122x208x185 |
122x208x205 |
|
lnner chamber volume |
80L / 150L / 225L / 408L / 800L / 1000L | |||||
|
Temperature Range |
-70℃～+150℃(B:-40℃D:-70℃) |
|||||
|
Humidity Range |
20%~98%R.H.(10%~98%R.H/5%~98%R.H R.H is a special optional condition ) | |||||
|
Display resolution/Unifoymity of temperature and humidity |
±0.1℃；±0.1%R.H./3.0℃; ±3.0%R.H |
|||||
|
Temperature Rising/Falling Time |
Approximate 3.0-15℃/minute/℃/3.0-15℃/minute | |||||
|
lnner and Outer Materials |
The inside case for SUS stainless steel mirror board,outside the box for iron plate |
|||||
|
Insulation Materials |
Resistant to high temperature,high density,formate chlorine,ethyl acetum foam insulation materials | |||||
|
Cooling System |
Air.water cooling |
|||||
|
Protection Devices |
Fuse-free switch ,overloading protection switch for compressor,high and low coolant pressure protection switch,over-humidity and over-temperature protection switch,fuses,failure waming system | |||||
|
Accessories |
watching window,50mm testing hole,PL internal bulbs partition plate,dry and wet ball gauze |
|||||
|
Control panel |
TH-900C | |||||
|
Compressor Brand |
French Tecumseh |
|||||
|
Power |
1Φ220VAC±10%50/60Hz﹠3Φ380VAC±10%50/60Hz | |||||
