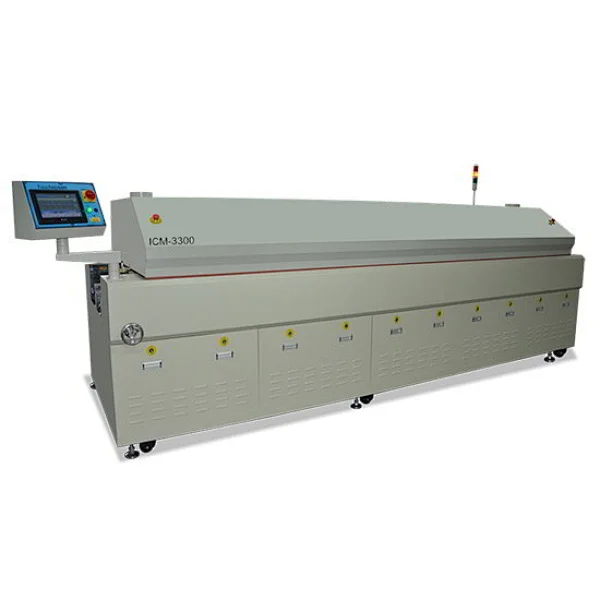

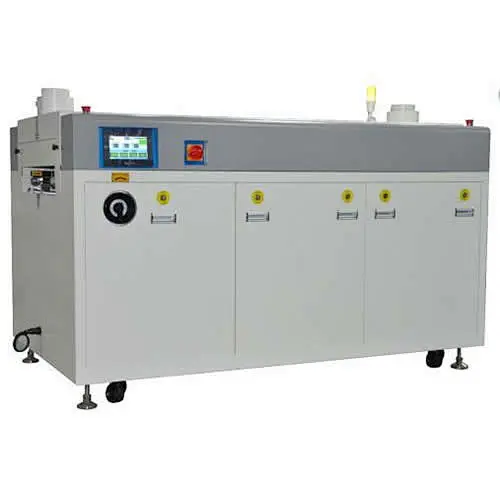

ICM Series is a capable lead free CE certificated reflow oven with upper& bottom individual far Infrared heater zones, pin chain & mesh belt inline conveyor. It's suitable for high-volume curing production. They are easy to integrate with different conformal coating machines.

Heating tunnel:

ICM-3300/3250mm

ICM-4400/4620mm

ICM-5700/5700mm

Overall dimension:

ICM-3300/L4450*W1370*H1600mm

ICM-4400/L6040*W1370*H1600mm

ICM-5700/L7000*W1570*H1600mm

Machine's cover can be easily lifted up.jpg

ICM Series Curing Oven General

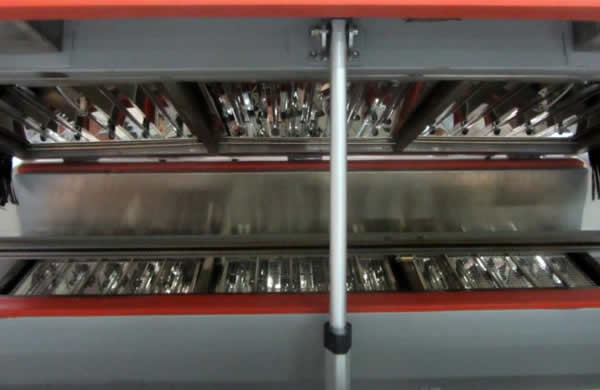

Machine's cover can be easily lifted up by motor -driven lifter. Inner tunnel can be manually lifted up too, easy for clean and maintenance.


ICM Series Curing Oven General

Eqiupped with fan and adjustable bracket angle for cooling system.

ICM Series Curing Oven General

ICM Series Curing Oven General

Upper and bottom induvidual temperature zones.

ICM Series Curing Oven Conveyor

ICM Series Curing Oven Conveyor

Chain and mesh belt conveyor,all rail has been harden-treated, equipped with lubrication cup.

ICM Series Curing Oven Conveyor

ICM Series Curing Oven Conveyor

PLC, Schneider transducer, Panasonic motor formed a stable conveyor system.

ICM Series Curing Oven Conveyor

ICM Series Curing Oven Conveyor

Standardly equipped with SMEMA connector for inline production.

ICM Series Curing Oven Software & Electrical system

ICM Series Curing Oven Software & Electrical system

Full English interface, easy to be operated which can stock more than 50 groups parameters with recommended leaded/leaded free temperature/speed setting before machine be delivered. You can master how to operate it within 10 minutes.

ICM Series Curing Oven Software & Electrical system

ICM Series Curing Oven Software & Electrical system

Colored touchscreen interface with PLC controller ensure stable operation of machine.

ICM Series Curing Oven Software & Electrical system

ICM Series Curing Oven Software & Electrical system
CE certificated wiring and components.

ICM Series Curing Oven package

ICM Series Curing Oven package

Dry partical with safty certification used in machine to avoid moisture,Vacuming package for long distance shipping,Plywood case and metal frame for big case.

ICM Series Curing Oven - Specifications

General of machine

Model

ICM-3300

ICM-4400

ICM5700

Dimension

L4450*W1370*H1600

L6040*W1370*H1600

L7000*W1570*H1600

Net weight

1600Kg

1700Kg

1800Kg

Power supply

3 phase 380v 50hz Optional: 3phase 440v, 3phase 220v

Max temp

280 ℃

Conveyor speed

100--500mm/min

General power

32kw

44kw

65kw

Consumption power

4---13kw

5---20kw

8-30kw

Package

Vacuuming

Heater and controlling system

Heater type

Far Infrared Heater

Heat zone number

6 top zones

9 zones

8 top +8 bottom zones

Heating zone length

3250mm

4620mm

5700mm

Profile change time

5--15 minutes

Tem control

PID close-loop SSR driver

Temp uniform

±5 ℃

Ramp time

15 minutes

Control type

Touch Screen + PLC control

Conveyor system

Conveyor type

Mesh Belt or Pin Chain

Conveyor height

940±20mm

Conveyor speed

100--500mm/min

Conveyor direction

left to Right

Max Product width

50-650mm

Upper clearance

100mm

Under board clearance

100mm

Cooling type

Fans

Exhausting

Two exhausting port

Entrance and exit
