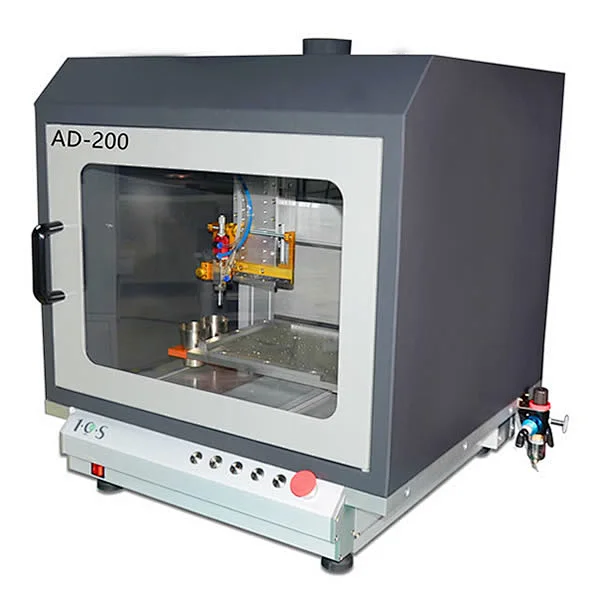

Benchtop Selective Coating Machine AD-200
Benchtop Selective Coating Machine AD-200

Benchtop Selective Coating Machine AD-200

The AD-200 is an automated desktop type selective coating robot with a precision  spraying valve and material  tank to provide a desktop type slective coating  solution.

Built in dispensing controller with independant air regulator.

● Built in dispensing controller with independant air regulator.


● Hand-held teach pendant with powerful software is easy for programming.

Spray valve:


Coating thickness can be adjusted by changing air pressure and moving speed.

Coating width can be adjusted by changing air pressure.

Model

V-1000

spraying swath

6-10mm

air pressure

0.2-0.4Mpa

Max viscosity

1000 cps

edge definition

1mm

Material Tank

10L material pressure tank.

10L material pressure tank.

2L cleaning  pressure tank.

2L cleaning pressure tank.

Benchtop Selective Coating Machine AD-200 specification :

Items

Model

AD-200

Stroke(mm)

NumberofAxis 3
(SingleheadX,Y,Z)
X-aixs 380
Y-aixs 250
Z-aixs 80

Speed (mm/s)

XYaixs

300

Repeatability(mm)

Z-aixs

±0.06mm

Dimensions(mm)

WxDxH

720x700x640

Weight

NetWeight

60kg

Power source

Voltage/Frequency AC220V,singlephase,50/60Hz
Capacity 750W

Motor

Type Step motor
Operation MicroStep

Programming

Techingmethod Hand-heldteachpendant,ManualDatainput
Motioncontrol PTP,CP(3dimensionalstraightline/circulararcinterpolation)
Programcapacity 2G memory ,100 programs or instruction ≤8000

WorkingTemperature

0 - 40°C(32-104°F)

AirInput

5 Kg/cm²(approx.70psi)
