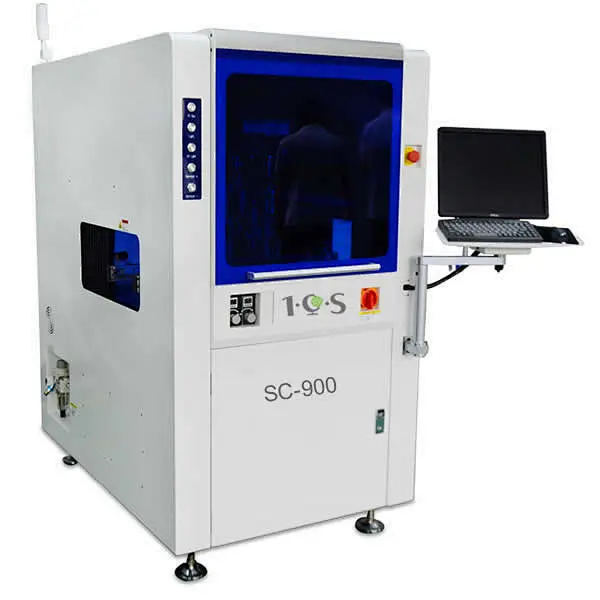

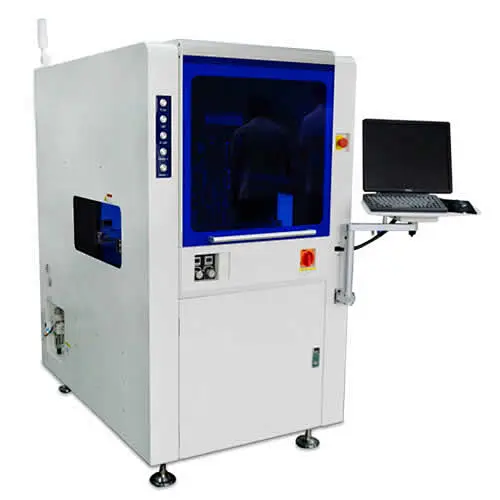

High Performance 4 axis Selective Coating Machine SC-900 is equipped with high precision servo control system , various valves , CCD system ,material tank weight detecting system etc, which can provide a high efficiency conformal coating process .The maximum coating size can reach 400mm*450mm with SC-900.

Machine adopt high strength welding frame

Machine adopt high strength welding frame , X/Y/Z/R axis adopt Panasonic servo motor and ball screw to ensure high speed and stable running.

High precision valve with rotation and tilting device realize high precision coating with  no dead ange.

High precision valve with rotation and tilting device realize high precision coating with no dead ange.

Glue weighing system can detect empty tank to  avoid missing coating.

Glue weighing system can detect empty tank to avoid missing coating.

High quality parts ensures long service life.

High quality parts ensures long service life.

Professional coating software easily meet various requirement of coating prcoess.

Professional coating software easily meet various requirement of coating prcoess.

4 Axis Selective Coating Machine SC-900specification :

Model

SC-800

SC-900

Machine stroke

L400mm*W450mm ,
CCD visual range : X :350mm/Y :400mm

L400mm*W450mm ,
CCD visual range : X :350mm/Y :400mm

Axis number

X/Y/Z axis

X/Y/Z/R axis(+/-180 degree rotable )

Max Work Movement Speed

Max 800mm/s

Max 800mm/s

Max installable valve quantity

2 valves

3 valves

Standard Valve

Narrow spray valve,Needle spray valve

Narrow spray valve,Needle spray valve

Optional valve

Film coating valve, Wide spray valve

Film coating valve, Wide spray valve

Valve tilting device

N/A

narrow spray valve and needle spray valve with tilt angle 35°

Max PCB Component Height

70mm

70mm

Programming

manual teaching by valve or CCD, load .dxf file

manual teaching by valve or CCD, load .dxf file

Repeatable Accuracy

+/- 0.05mm

+/- 0.05mm

Conveyor Height

920mm±30mm

920mm±30mm

Conveyor direction

only left to right

only left to right

Conveyor Speed

2~5M/min

2~5M/min

Conveyor width adjustment

Motorized

Motorized

Material Tank

10L

10L

Cleaning solvent tank

2 L

2 L

PCB clamper

Standard configuration

Standard configuration

Power Supply

AC220V 50~60Hz

AC220V 50~60Hz

Total Power

2 KW

2 KW

Air Requirement

0.4-0.6Mpa

0.4-0.6Mpa

Overall Size W*D*H

1000mm*1310mm*1700mm(not including display bracket )

1000mm*1310mm*1700mm(not including display bracket )

Weight

550KG

580KG
