Working principles of dual fluid potting machine: |
|
|
1.Vacuum pump suck material A, B from 5KG drum to the storage tank . |
|
|
2.Set the mixed proportion on the software . |
|
|
3.Material A, B metering by gear pump are delivered to mixing head. |
|
|
4.Mix material A/B with dynamic or static mode, so as to ensure an adequate mixing. |
|
|
5.Mixed material be potted into the product trough mixing tube . |
|
|
Details: |
|
|
|
|
 |
1. Dynamic mixing head The tube mixer is driven by a mixing motor, so as to make the glue mixed uniformly |
 |
2.Gear pump 1.Stable pressure , not stirred by vortex flush . 2.Compact size , simply structure ,easy for maintenance . 3.Controlled by precise step motor with high glue pumping accuracy. |
 |
|

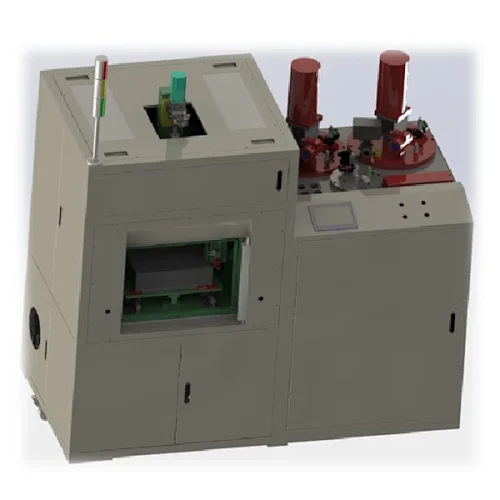

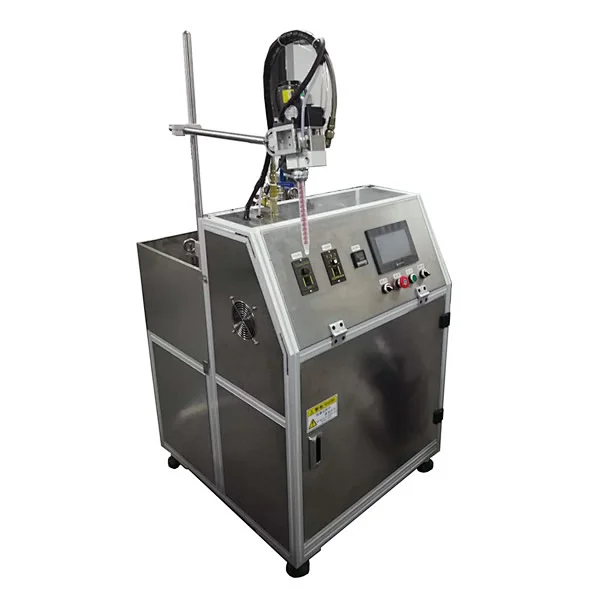

Double liquid Potting Machine DLP-400A
Gear pump for metering, screw pump is optional.
Material loading by vacuum pump.
Material agitating and deforming by vacuum pump.
Metering ratio is adjustable.
Metering accuracy :±3%.
Dynamic mixing head.
PLC and touch screen control.
Full English interface.
|
Parameters of the A/B glue potting part specification : |
|
|
Model |
DLP-400A |
|
Metering ratio |
Adjustable， required ratio ±10% |
|
Material A tank capacity |
15L,25L |
|
Material B tank capacity |
15L,25L |
|
Material A tank agitating |
Yes |
|
Material B tank agitating |
Optional |
|
Material A tank with hose heating |
Optional |
|
Material B tank with hose heating |
Optional |
|
Cleaning tank |
2L |
|
Material A metering |
Volume metering by gear pump or screw pump with step motor control |
|
Material B metering |
Volume metering by gear pump or screw pump with step motor control |
|
Mixing mode |
Dynamic mixing or static mixing |
|
Control mode |
PLC control |
|
Air supply |
0.4~0.7 MPa |
|
Power supply |
1P, AC220V 50Hz |
|
Dimensions |
Approx 700L*650W*1100H(mm),the machine size might differ according to tank dimension |
|
Weight |
180kg |
