L331 Automatic Soldering Robot Features: |
| 1. Advanced industrial design, beautiful shape, solid structure break traditional framework, which is more reasonable and practical. |
| 2. X,Y,Z,R,and soldering wire feeding motion system are all controlled by one combined 5 axis motion control card ,so it can integrate all the functions into one software like programming , soldering time setting ,solder wire feeding length setting .it makes machine running more stable and easy to operate. |
|
3. X,Y,Z,R axis adopt quality step motor with it's contorl system, make machine run smoothly and precisely . |
|
4. It is equipped with automatic soldering tip cleaning device ,which can improve soldering quality and prolong lifetime of soldering tip. |
|
5. L331 is equipped with teach panel for programming , makes programming very easy . |
|
6.150W heating system has rapid temperature recovery time . soldering tip can be easliy changed with lower cost . |
| 7.Self-developed advanced software, fool-style programming with wireless controller like play game , all parameters can be set in one program, solder wire feeding quantity, soldering time etc ,very easy to use. |
| 8. Various soldering tips can meet different process requirement. customized solering tips is also available. |

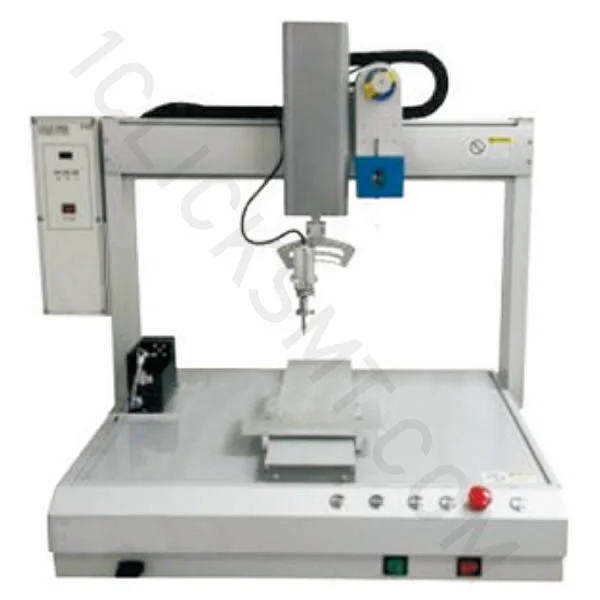

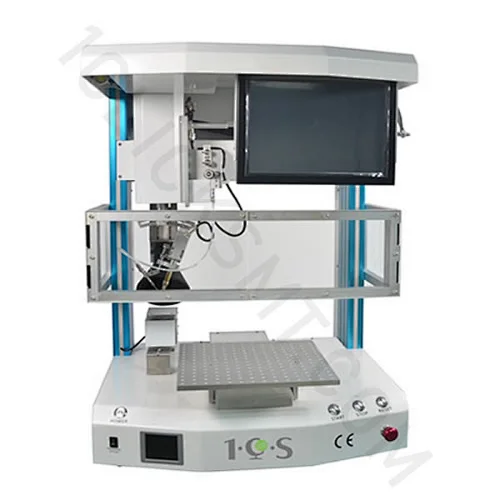

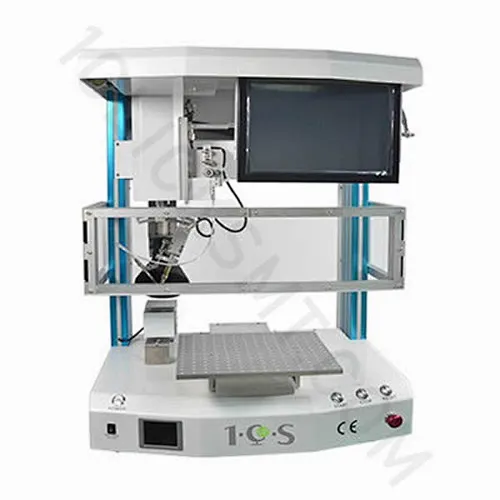

L331 Automatic Soldering Robot
|
L331 Automatic Soldering Robot specification : |
|
|
Model |
L331 |
|
Axes |
X/Y/Z/R/wire feeder |
|
Machine travel(X/Y/Z/R) |
Platform : 260*300*80mm*360˚ |
|
Max running speed(X/Y/Z) |
500mm/s |
|
Repeat positioning accuracy |
±0.06mm |
|
Plateform load |
5KG |
|
Temperature Range |
200℃-450℃ |
|
Temperature control accuracy |
±2℃ (no air flow, no load) |
|
Min Solder wire feeding length |
0.1mm |
|
Solder wire feeder |
standard 0.8mm-1.2mm feeder |
|
Programming method |
Teach panel |
|
Program storage capability |
99 groups program |
|
Power supply |
single-phase: AC 220V f : 50HZ |
|
Air pressure |
0.4-5kg/cm² |
|
Work environment |
0℃~40℃ |
|
Machine size(mm) |
L520*W580*H750(mm) |
|
Weight |
50kg |
|
L331 Automatic Soldering Robot Standard configuration : |
|
Standard configuration: |
|
◎ Automatic Soldring Robot. |
|
◎ X,Y,Z,R and wire feeding driving system. |
|
◎ 0.8-1.2mm solder wire feeder |
|
◎ 150W heating system. |
|
◎ Teach panel. |
| ◎ Soldering tip *3 pcs |
| ◎ 1 year parts warranty |
|
Optional configuration: |
|
◎ Customized fixture. |
|
◎ 150W Soldering tip |
|
◎ 150W Heater |
