L332 Automatic Soldering Robot Features: |
| 1.Advanced industrial design, beautiful shape, solid structure break traditional framework, which is more reasonable and practical. |
| 2.X,Y1,Y2,Z,R,and soldering wire feeding motion system are all controlled by one combined 6 axis motion control card ,so it can integrate all the functions into one software like programming , soldering time setting ,solder wire feeding length setting .it makes machine running more stable and easy to operate. |
|
3. X,Y1,Y2,Z,R axis adopt quality step motor with it's contorl system, make machine run smoothly and precisely . |
|
4. It is equipped with automatic soldering tip cleaning device, which can improve soldering quality and prolong lifetime of soldering tip. |
|
5. L332 is equipped with teach panel for programming, makes programming very easy . |
|
6.150W heating system has rapid temperature recovery time. soldering tip can be easliy changed with lower cost . |
| 7.Self-developed advanced software, fool-style programming with wireless controller like play game, all parameters can be set in one program, solder wire feeding quantity, soldering time etc ,very easy to use. |
| 8. Various soldering tips can meet different process requirement. customized solering tips is also available. |

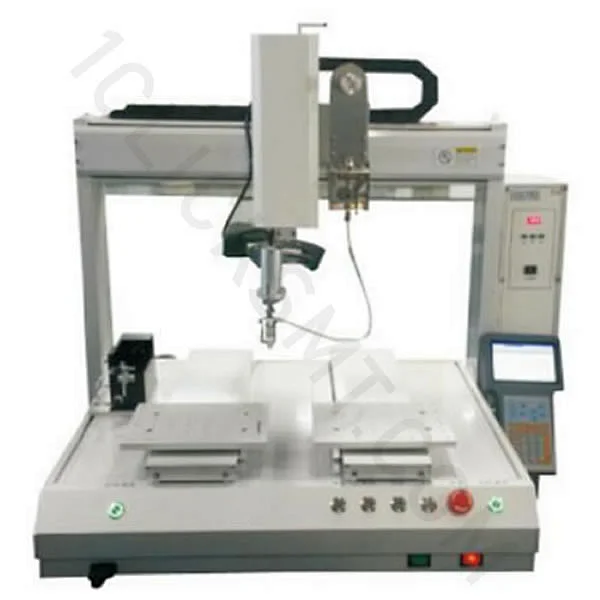

L332 Automatic Soldering Robot
L332 is a 6 axis soldering robot with X,Y1,Y2,Z,R,and solering wire feeding motion system. it is equipped with 150W heating system with rapid heat recovery ,soldering tip is easy to be exchanged with low cost .Automatic solder wire feeder . Self-developed software easy to operate.
|
L332 Automatic Soldering Robot specification : |
|
|
Model |
L332 |
|
Axes |
X/Y1/Y2/Z/R/wire feeder |
|
Machine travel(X/Y1/Z/R) |
Y1 platform : 260*300*80mm*360˚ |
| Y2 platform : 260*300*80mm*360˚ | |
|
Max running speed(X/Y/Z) |
500mm/s |
|
Repeat positioning accuracy |
±0.06mm |
|
Plateform load |
5KG |
|
Temperature Range |
200℃-450℃ |
|
Temperature control accuracy |
±2℃ (no air flow, no load) |
|
Min Solder wire feeding length |
0.1mm |
|
Solder wire feeder |
standard 0.8mm-1.2mm feeder |
|
Programming method |
Teach panel |
|
Program storage capability |
99 groups program |
|
Power supply |
single-phase: AC 220V f : 50HZ |
|
Air pressure |
0.4-5kg/cm² |
|
Work environment |
0℃~40℃ |
|
Machine size(mm) |
L720*W580*H770(mm) |
|
Weight |
70kg |
|
L332 Automatic Soldering Robot Standard configuration : |
|
Standard configuration: |
|
◎ Automatic Soldring Robot. |
|
◎ X,Y1,Y2,Z,R and wire feeding driving system. |
|
◎ 0.8-1.2mm solder wire feeder |
|
◎ 150W heating system. |
| ◎ Teach panel. |
| ◎ Soldering tip *3 pcs |
| ◎ 1 year parts warranty |
|
Optional configuration: |
|
◎ Customized fixture. |
|
◎ 150W Soldering tip |
|
◎ 150W Heater |
