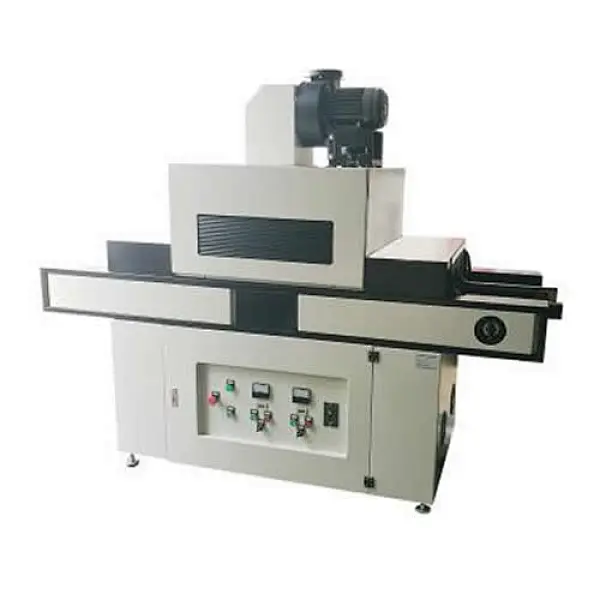

UV Curing Machine UVC-502 Series
UV Curing Machine UVC-502 Series

UV Curing Machine UVC-502 Series

UV Curing machine UVC-502 series is equipped with 2 groups of quality metal halid lamps which is suitable for conformal coating material curing.

2 groups of metal halid lamps ,each lamp is controlled independently, lamp height is adjustable.

● 2 groups of metal halid lamps ,each lamp is controlled independently, lamp height is adjustable.

High quality electrical parts like Schneider contact ensure long service life of machine.

● High quality electrical parts like Schneider contact ensure long service life of machine.

Teflon mesh belt conveyor for Offline mode UVC-502

● Teflon mesh belt conveyor for Offline mode UVC-502, Stainless steel pin chain conveyor for inline mode UVC-502I.

easy-operated control panel.

● easy-operated control panel.

UV Curing Machine UVC-502 Series Specifications

Model

UVC -502

UVC-502I

Overall dimension

L2000*W665*H1800mm

L2000*W790*H1800

Net weight

about 400Kg

about 470Kg

Power supply

3 phase 380v 50hz

3 phase 380v 50hz

Conveyor speed

0-3000mm/min

0-3000mm/min

General power

12kw

12kw

Curing and controlling system

lamp type

metal halid lamp

metal halid lamp

lamp number

2 pieces

2 pieces

curing zone length

800mm

800mm

UV lamp

4.8KW

4.8KW

Conveyor system

Conveyor type

Teflon mesh belt conveyor

Stainless steel pin chain and guide rail conveyor

Conveying height

/

900±20mm

Conveying direction

Left to right only

Left to right only

Max Product height

100mm

100mm

Max Product width

400mm

400mm

Cooling type

cooling fan

cooling fan

Exhausting

Exhausting volume

28m3/min,connecting pipe diameter :150mm

28m3/min,connecting pipe diameter :150mm
