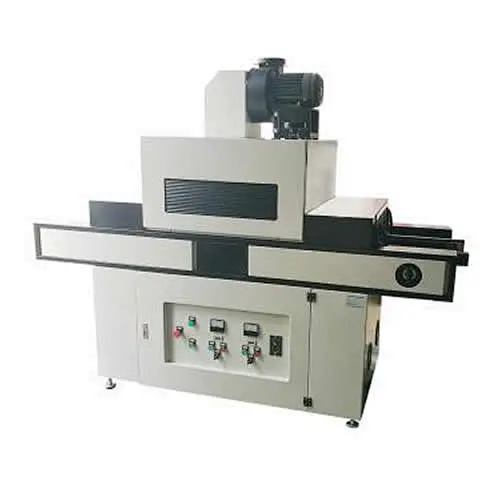

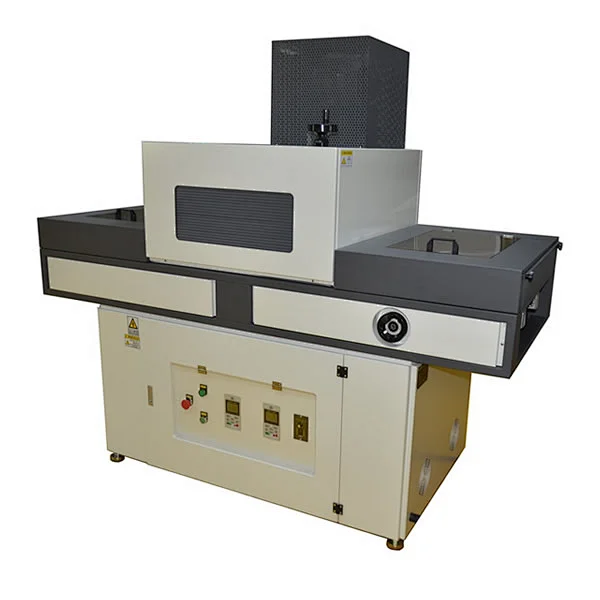

UV Curing Machine UVC-602 Series

UV Curing Machine UVC-602 Series

UV Curing machine UVC-602 series is equipped with 2 groups of quality metal halid lamps and stepless lighting controller, which is suitable for conformal coatng material curing.

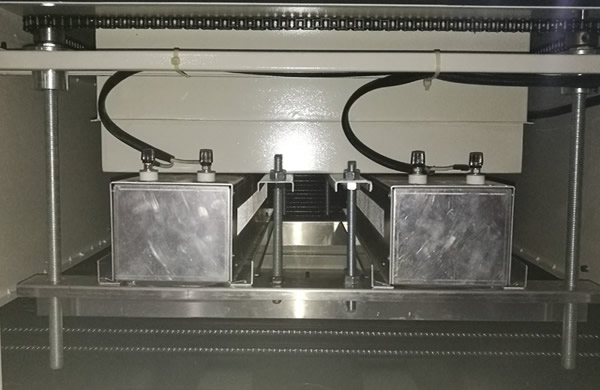

UV system adopt 2 groups of metal halid lamps,

●   UV system adopt 2 groups of metal halid lamps, each lamp is controlled by stepless lighting controller independently, lamp height is adjustable.

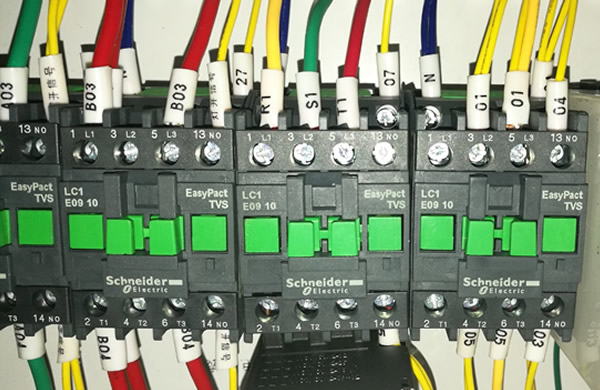

High quality electrical parts like Schneider contact ensure long service life of machine

●   High quality electrical parts like Schneider contact ensure long service life of machine.

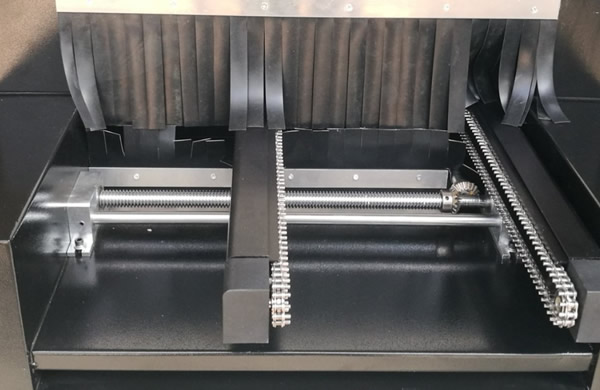

Teflon mesh belt conveyor for Offline mode UVC-602

●   Teflon mesh belt conveyor for Offline mode UVC-602, Stainless steel pin chain conveyor for inline mode UVC-602I.

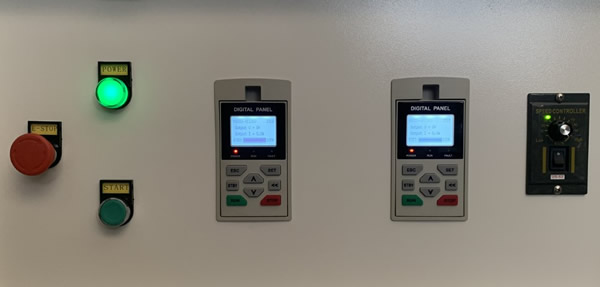

stepless lighting controller, easy-operated control panel.

●   stepless lighting controller, easy-operated control panel.

UV Curing Machine UVC-602 Series Features:

1.  UV system adopt 2 groups of metal halid lamps, each lamp is controlled by stepless lighting controller independently, lamp height is adjustable.

2.  With aluminium-magnesium alloy reflector,  Ultraviolet light can be effectively reflected  more than 95%, CF vapor-plated quartz-glass and filtered IR, temperature is effectively reduced.

3.  Forced air cooling exhausting system is adopted for lamp cooling and to reduce conveying mesh temperature.

4.  Offline mode UVC-602 with teflon mesh belt is easy for placing mutiple PCBs. Inline mode UVC-602I with stainless steel pin chain conveyor can be easily connected with selective coating machine for Inline production.

5.  High quality electrical parts are adopted to ensure long service life of machine.

UV Curing Machine UVC-602 Series Specification

  Model

  UVC -602

  UVC -602I

  Overall dimension

  L2000*W715*H1800mm

  L2000*W840*H1800

  Net weight

  about 320Kg

  about 370Kg

  Power supply

  3 phase 380v 50hz

  3 phase 380v 50hz

  Conveyor speed

  0-3000mm/min

  0-3000mm/min

  General power

  14kw

  14kw

  Curing and controlling system

  lamp type

  6KW metal halid lamp

  6KW metal halid lamp

  lamp  number

  2 pieces

  2 pieces

  curing zone length

  800mm

  800mm

  UV lamp controller

  stepless electronic lighting controller

  stepless electronic lighting controller

  Conveyor system

  Conveyor type

  Teflon mesh belt conveyor

  Stainless steel pin chain and guide rail conveyor

  Conveying height

  /

  920±30mm

  Conveying direction

  Left to right only

  Left to right only

  Max Product height

  100mm

  100mm

  Max Product width

  450mm

  450mm

  Cooling type

  cooling fan

  cooling fan

  Exhausting

  Exhausting volume

  28m3/min, connecting pipe diameter :200mm

  28m3/min, connecting pipe diameter :200mm

UV Curing Machine  UVC-602 Series Includes:

Standard configuration:

● UV curing machine UVC-602 series

● 6KW metal halid lamp with stepless electronic lighting controller * 2set

● 1 year parts warranty

Option:

● Metal halid lamp
