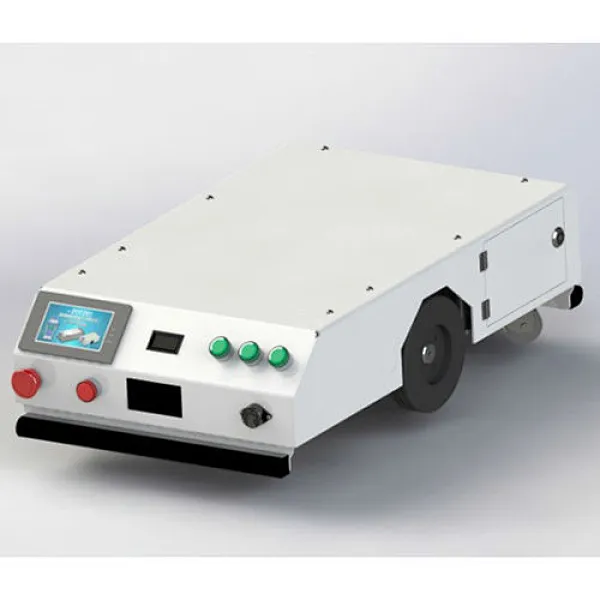

Automatic Guided Vehicle ZBX-50BF
Automatic Guided Vehicle ZBX-50BF

Automatic Guided Vehicle ZBX-50BF

The Max load capacity of this automatic guide vehicle is 50kg.After loading the materials by hand or industrial robot,the AGV can automatically drive to the feeding point entire transport process bar and the location setting.The entire transport process needn't human intervention .The operation is simple and the AGV doesn't conflicts with other units in logistics system.

Magnetic strip guided running method

● Magnetic strip guided running method.

● Laser obstacle sensor,Mechanical anti-collision switch and emergency stop switch 3 safety protection

● Max 50kg load capacity.

Two-wheel different speed driving

● Two-wheel different speed driving

● 3-5degree climbing ability

● Touchscreen control

● Manual and Automatic batter charging optional.

Automatic Guided Vehicle ZBX-50BF Specification

Model

ZBX-50BF

Appearance

715mm*426mm*212mm

Voltage

220V/50HZ

Load capacity

50kg

Running speed

0-45m/min(adjustable)

Navigation mode

Magnetic strip

Min turning radius

400mm

Positioning accuracy

±10mm

Security protection mode

Laser obstacle sensor,Mechanical anti-collision switch,Emergency stop switch

Drive system

Two-wheel different speed driving

Climbing ability

3-5degree

Interactive interface

Touch screen

Working hours

9-12hours

Charging time

4hours

Charging mode

Manual charging(standard),automatic charging (optional)

Battery life

Can be re-used more than 500 times
