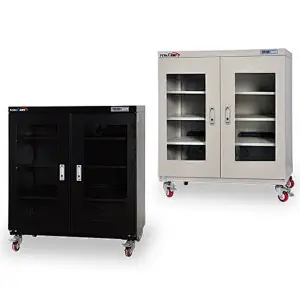

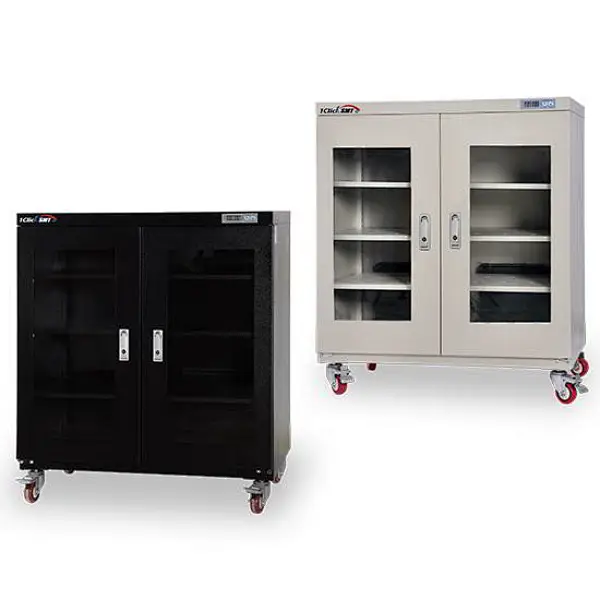

Dry Cabinet Series 320

A full range of various dry storage cabinets ensures that your production is based on the IPC/JEDEC Standard STD-033B for moisture sensitive devices.

320 Dry Cabinet Series Feature

● LED display; conveniently display temperature(Left/Green) and humidity(Right/Red).

● Using 1.0 and 1.2mm Cold-rolled Steel, 3.2mm tempered glass, lock-key handle.

● Door frame covered with magnet rubber keeps reliable air tightness.

● Special desiccant in DRY-UNIT is semi-permanent.

● Humidity controller maintains stable constant humidity.

● Operation in normal temperature, noiseless, long life.

● Fast dehumidifying speed, the humidity of inner cabinet can drop down in several minutes with the nitrogen cabinet TR-DG-320(A).

● Sturdy and durable shelf is movable up and down and slip layer board make the interspaces adjustable.

● Energy saving design: low electricity consumption resurgence, no heating, no condensation dripping, absence of fan noise.

320 - Specifications
Model	TR-FCM-320(A)	TR-FCD-320(A)	TR-FCDE-320(A)	TR-DG-320(A)
Humidity Range	20-60%RH	10-20%RH	1-10%RH	1-60%RH
External Size(mm)	W900D450H1030
Inner Size(mm)	W898D420H848
Material & Finishing	Cabinet: high quality steel plate; Hard-coated resin paint Door: Glass window Powerful magnet rubber seal maintain high airtight
Max Capacity	320Liter
Power Consumption(W/H)	0.5-47W/H(MAX370W) (AC 220V)
Power Source	AC110-115V(50/60HZ) or AC220-240V(50/60HZ)
Removal Shelf	3 (material: steel or stainless)
Door Key	2
Hygrometer	1
Caster	4
Note: 1."A" the model means ESD-Function, color is black. 2. “DG” means the nitrogen cabinet, customer shall order Nitrogen Gas in local to run the N2 cabinet!
