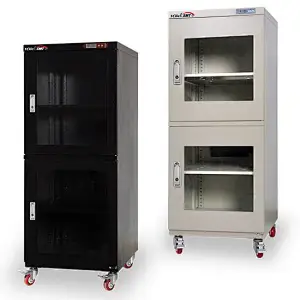

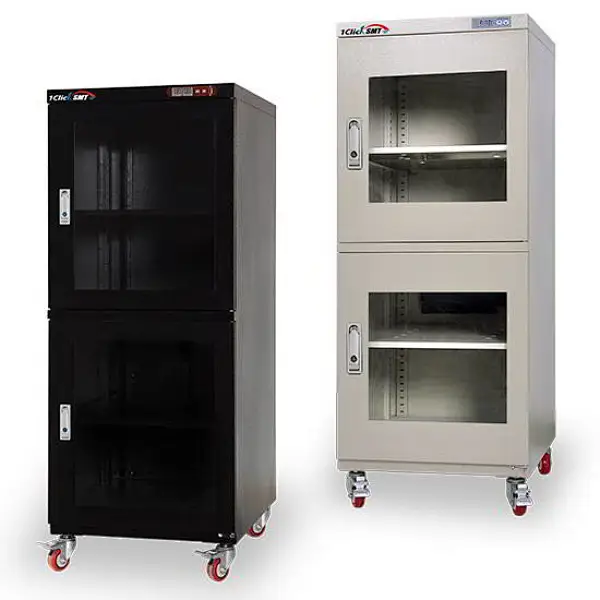

Dry Cabinet Series 540
Dry Cabinet Series 540

Dry Cabinet Series 540

A full range of various dry storage cabinets ensures that your production is based on the IPC/JEDEC Standard STD-033B for moisture sensitive devices.

540 Dry Cabinet Series Feature

LED display; conveniently display temperature(Left/Green) and humidity(Right/Red).

Using 1.0 and 1.2mm Cold-rolled Steel, 3.2mm tempered glass, lock-key handle.

Door frame covered with magnet rubber keeps reliable air tightness.

Special desiccant in DRY-UNIT is semi-permanent.

Humidity controller maintains stable constant humidity.

Operation in normal temperature, noiseless, long life.

Fast dehumidifying speed, the humidity of inner cabinet can drop down in several minutes with the nitrogen cabinet TR-DG-540(A).

Sturdy and durable shelf is movable up and down and slip layer board make the interspaces adjustable.
Energy saving design: low electricity consumption resurgence, no heating, no condensation dripping, absence of fan noise.

540 - Specifications

Model

TR-FCM-540(A)

TR-FCD-540(A)

TR-FCDE-540(A)

TR-DG-540(A)

Humidity Range

20-60%RH

10-20%RH

1-10%RH

1-60%RH

External Size(mm)

W600*D750*H1500

Inner Size(mm)

W598*D720*H1318

Material & Finishing

Cabinet: high quality steel plate; Hard-coated resin paint
Door: Glass window Powerful magnet rubber seal maintain high airtight

Max Capacity

540Liter

Power Consumption(W/H)

0.5-47W/H(MAX370W) (AC 220V)

Power Source

AC110-115V(50/60HZ) or AC220-240V(50/60HZ)

Removal Shelf

3 (material: steel or stainless)

Door Key

2

Hygrometer

1

Caster

4

Note: 1."A" the model means ESD-Function, color is black.

2. “DG” means the nitrogen cabinet, customer shall order Nitrogen Gas in local to run the N2 cabinet!
