Economical & motorized loose radial lead cutter eliminates time-consuming manual trimming.
Stop trimming leads manually!
Linear Feeding on trail with automatic feeding bowl is suitable for most of parts and can realize automatic feeding and cutting.

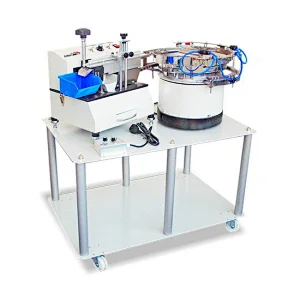

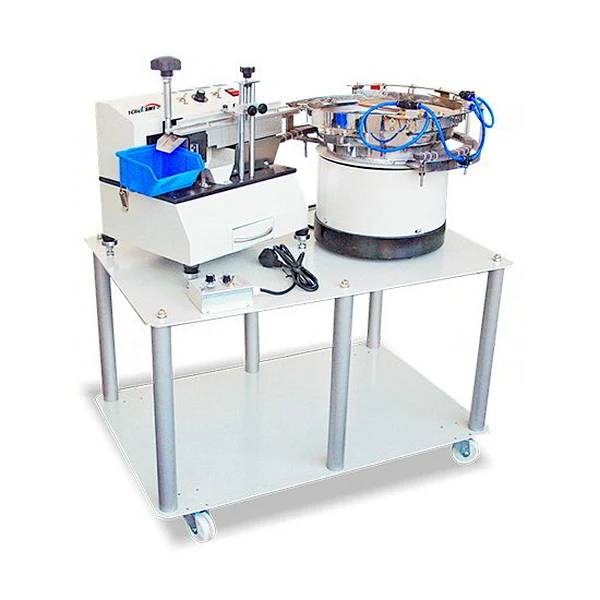

LC-803 Automatic Loose radial lead Cutter Features
|
● Linear Feeding on trail with automatic feeding bowl is suitable for most of parts and can realize automatic feeding and cutting. |
|
● Special cutting design ensures long service life of cutting tools |
|
● Easy maintenance and simple operation. |
|
● Equipped with movable working table ,very convenient for operation. |
|
LC-803 - Specifications |
|||
|
Model |
LC-803 |
||
|
Power |
220V/50HZ ,1PH |
||
|
Machine Size |
L850×W550×H970mm |
||
|
Weight |
145KG |
||
 |
A |
Body Diameter |
3 - 10 m/m |
| Body height |
<13mm |
||
|
H |
Lead Length |
3 - 20 m/m |
|
|
W |
Lead Wire Diameter |
0.4 - 2.0 m/m |
|
|
Capacity |
200-300 pcs/Min |
||
