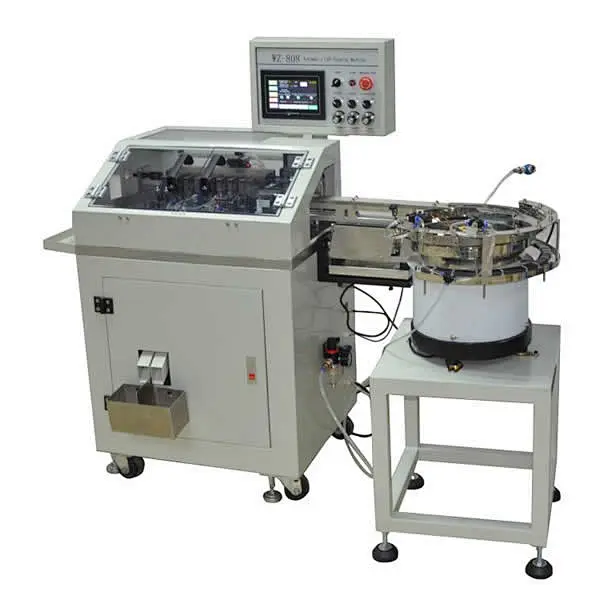

LF-808 Automatic LED Capacitor Former

LF-808 Automatic LED Capacitor Former

Automatic LED Forming Machine LF-808 is specially designed for automatic forming of LED or capacitor ,Forming shape can be straight line, incurvature, excurvature, 90 degrees, front and rear curvature, two-way curvature, long and short pin, and other shapes all can specially customized. it is equipped automatic LED polarity inspecting and reversing device .Friendly all English interface is easy to operate.

Vibrating bowl feeds components automatically.

● Vibrating bowl feeds components automatically.

The vibrating plate feeds component automatically

● The vibrating plate feeds component automatically, the

processes of clamping material, trimming pin, polarity test

and reversing, cutting and forming are finished at one time.

Adopts elastic material clip, which avoids damaging materials and relieve stress of component.

● Adopts elastic material clip, which avoids damaging

materials and relieve stress of component.

Adopts combined type mould, which is fast to replace.

● Adopts combined type mould, which is fast to replace.

Every group of moulds is adjusted separately. Mould cutting

tools are all made of Japanese materials.

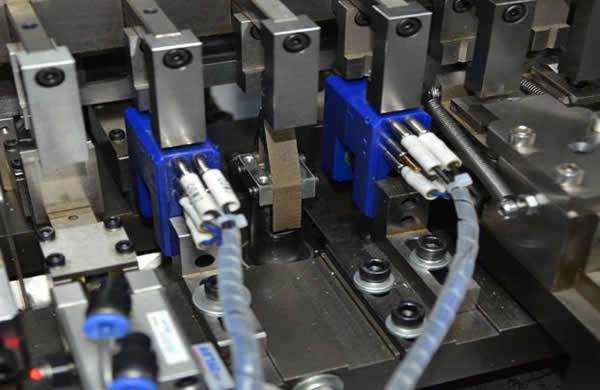

Automatic Polarity inspect and reverse.

● Automatic Polarity inspect and reverse.

Safety cover with interlock for moving parts

● Safety cover with interlock for moving parts, machine will

automatically stop when safety cover open.

PLC with touch screen control, all English interface, easy to operate.

● PLC with touch screen control, all English interface, easy

to operate.

LF-808 - Specifications

Model

LF-808

Cutting lead length

3-20mm

Component diameter

3mm-5mm

Power supply

220V/50HZ ,1PH

Power

250W

Air requirement

0.4-0.6Mpa

Machine Size

L1550×W650×H1280mm

Weight

300KG

Capacity

3600 pcs / Hour
