Micro Nitrogen Generating System SelMate-M500
Micro Nitrogen Generating System SelMate-M500
Micro Nitrogen Generating System SelMate-M500

Micro Nitrogen Generating System SelMate-M500

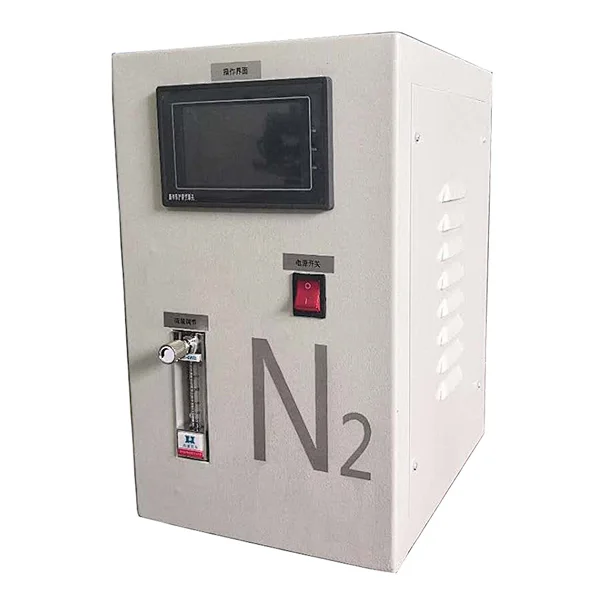

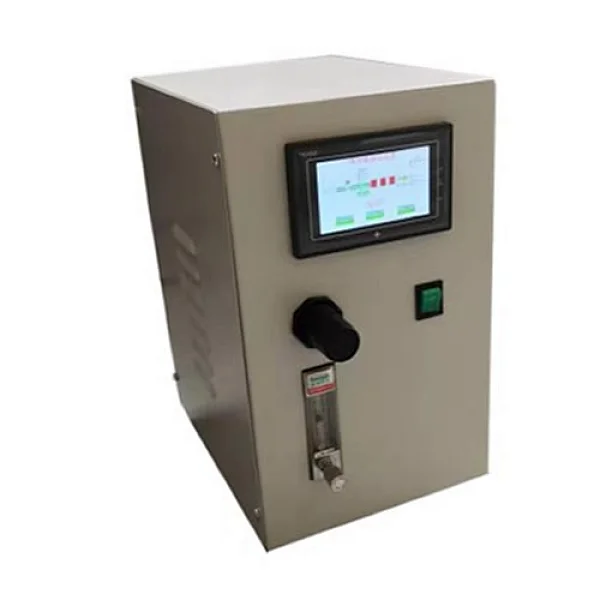

1Click Micro nitrogen generation system SelMate-M500 is the smallest desktop nitrogen machine at present, using the world's high quality, advanced imported membrane separation components.

Micro Nitrogen Generating System SelMate-M500 Features:

● Multi-tube structure efficiently prevents movement of Carbon Molecular Sieve(CMS),Attrition is kept to a minimum,thereby prolonging the life span of the CMS.

● N2 purity could reach as high as 99.999%.

● Every adsorption tower is installed with an advanced control system. Also, our special 1Click design controls the air flow to enhance the efficiency of the generator system.

● Ultra-frequency vibration filling technique enables closer and tighter packing of Carbon Molecular Sieve, to minimise movement.

● Nitrogen machine with compressor and filter,small area,save space.

Micro Nitrogen Generating System SelMate-M500 Specification

N2 flow rate (L/H)

N2 Purity (% )

N2 press Power Szie(mm) Requirements for compressed air


95 0.75Mpa 200W (AC220) 230*300*380 Input air flowrate:≥20NL/min Compressed air pressure: 0.75-0.8Mpa compressed air dew point: -20 °C compressed air temperature: 25-55c Oil content of compressed air: ≦1PPM
