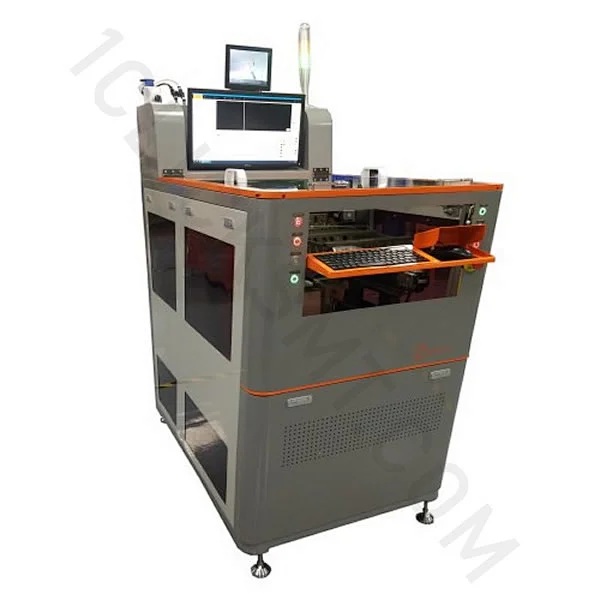

Offline Selective Soldering Machine Ant-i1
Offline Selective Soldering Machine Ant-i1
Offline Selective Soldering Machine Ant-i1

Offline Selective Soldering Machine Ant-i1

PCB is moved by X/Y table with servo motor, Solder pot is moved in Z with servo motor, drop jet flux is moved in Z with aircylinder.


Spray Flux

Flx-DropJet : Standard equipped with drop jet valve from Germanny originally, which can meet dia 2mm flux dot dimension.

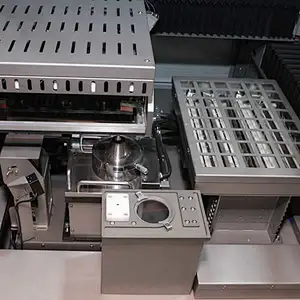

Selecting Soldering Pot

Selecting Soldering Pot

● Titanium soldering pot, 100% capable for lead free application. Standard equipped with mechanical pump, easy for maintenance.

● N2 direct heating system is standard equipped,enhance the wetting ability for lead free sodlering.

Live camer

Live camer

Sod-ProcMoni: Without open machine's door, operator can see soldering process in real time.



Pre-BPRE: Bottom preheating zone, before soldering PCB will move here to heat up setting time under setting temperature.

Solder nozzle

Solder nozzle

Sod-WetNoz: Standard equipped with wet nozzle for customer's universal applicaiton. Can also design solder nozzle according cusotmer's application.

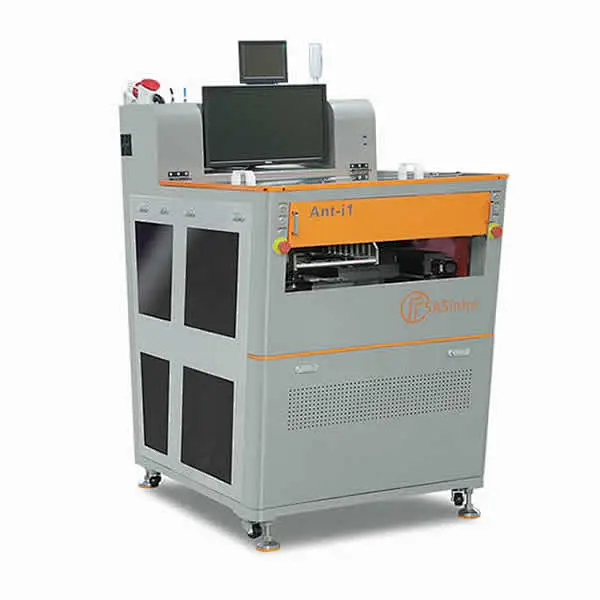

Offline Selective Soldering Machine Ant-i1 Features:

● Small footprint, only W990mm x D1308mm.

● Max board L350mm x W260mm (Can manually rotate board to 180degree to meet L700mm x W260mm).

● English Windows 10 interface.

● 3 servo motors and servo drivers for motion.

● Drop jet fluxer made in German.

● Solder pot system with capacity 15kgs.

● Wave height calibration system.

● Bottom IR preheating zone.

● “on-time” liver camera to show soldering process.

● Pre-maintenance count down function.

Ant-i1 Specifications




Operating power/Max power


PCB dimension

50x50---350x260mm (Can manually rotate board to 180degree to meet L700mm x W260mm)

Machine dimension

W990mm X D1308mm X H1714MM

Net weight


Power supply

1PH 220V 50HZ MAX 30A Equip 40A contactor in factory

Air supply

3-5 bars

Exhausting required


Solder Management

Standard Solder Stations


Solder Pot Capacity

15 kgs

Heat-Up Time

About 40mins

Solder Pot heater

380 ℃

Solder Pot heater


Solder Nozzles

Mini Wave Nozzles

Dia 2 to 8mm

Customized nozzle


Nozzle Material

Proprietary Alloy

(N2) Inertion Management

N2 heater

Standard Equipped

N2 Temp PID Control Range

0 - 300℃

N2 Consumption per Nozzle


Required N2 Purity


Flux Management

Spray Flux Nozzle

Standard equipped with drop jet nozzle made in Germany

Flux Capacity


Flux Tank

Constant pressure tank


IR heater


Controlling System

Industrial PC


Typical Program Time

10 Minutes

Program method

Draw path in scanned picture of board

Controlling system


Solder It

Solder it” is windows10 based software. With board scanned picture or Gerber file, “POINT AND CLICK” to “draw and drag” motion path easily, make the initial programming in less than 10 minutes.

Path programming :

Point and Click

“Point and Click”

● to draw path with scanned picture as background, easiest way for path programming.

Solder path editing:

Solder path editing:

● Moving speed,Z height, wave height, Dwell time, wave slope speed etc are editable, get max flexibility to fit different type of components on the board. Empth move time, site working time, total cycle time are estimated once path programming finished. Easy for balance production line.

Maintenance & replacement assisting function :

Maintenance & replacement assisting function :

● we know how important the maintenance for a selective soldering machine. In the software, we list all maintenance job, time taking, comsumable parts life and remain life, etc. It can export to excel list, engineer can check what parts need to replace in next 3 month or 6 months, in this way to they can prepare everything in advance.
