Lead Free Reflow Oven E4/E6

Lead Free Reflow Oven E4/E6

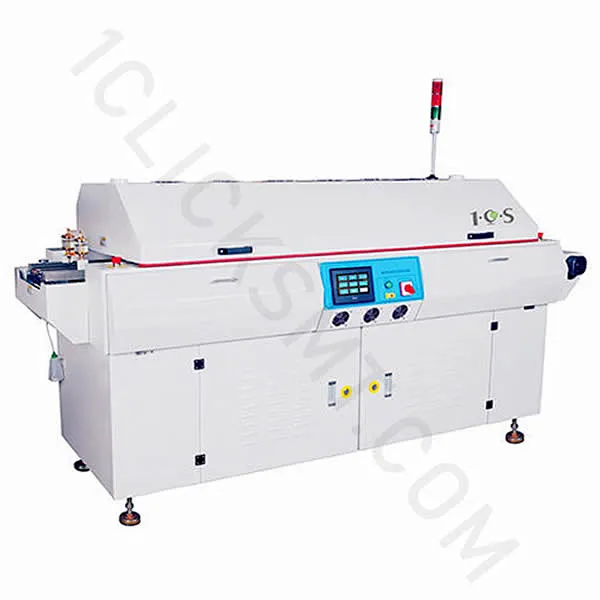

E4/E6 is a capable lead free CE certificated reflow oven with 4/6 upper & 4/6 bottom individual hot air convection zones, pin chain&mesh belt inline conveyor. It's the best choice to go with small volume pick&place machine like Autotronik, TWS, DIMA, ESSEMTEC etc.

E4/E6 Lead Free Reflow Oven General

E4/E6 Lead Free Reflow Oven General
Machine's cover can be easily lifted up with air spring holder. Inner tunnel can be manually  lifted up too, easy for clean and maintenance.

E4/E6 Lead Free Reflow Oven Tunnel

E4/E6 Lead Free Reflow Oven Tunnel

Latest self-designed porous plate, get  best uniform hot air distribution under the theory of static pressure.

temperature resistant motor

E4/E6 Lead Free Reflow Oven Tunnel

Upper 4 zones/bottom 4 zones hot air convection latest CE certificated high temperature resistant motor. Eqiupped with fan and adjustable bracket angle for cooling system.

E4/E6 Lead Free Reflow Oven Controlling

E4/E6 Lead Free Reflow Oven Controlling

Full English interface, easy to be operated which can stock more than 50 groups parameters with recommended leaded/leaded free temperature/speed setting before machine be delivered. You can master how to operate it within 10 minutes.

Power Saving

E4/E6 Lead Free Reflow Oven Controlling

Unique program design can adjust the start power consumption and lower the start current . Best choice for customer with limit power supply.

Electrical

E4/E6 Lead Free Reflow Oven Controlling

Colored touchscreen interface with PLC controller ensure stable operation of machine. The whole machine was built under CE instruction, Branded electrial components like Schneider converter, Mitsubishi breaker, Xinje PLC etc.

Chain and mesh belt conveyor

E4/E6 Lead Free Reflow Oven Conveyor

Chain and mesh belt conveyor,all rail has been harden-treated, equipped with lubrication cup.PLC, Schneider transducer, Panasonic motor formed a stable conveyor system.

SMEMA

E4/E6 Lead Free Reflow Oven Conveyor

Standardly equipped with SMEMA connector for inline production.

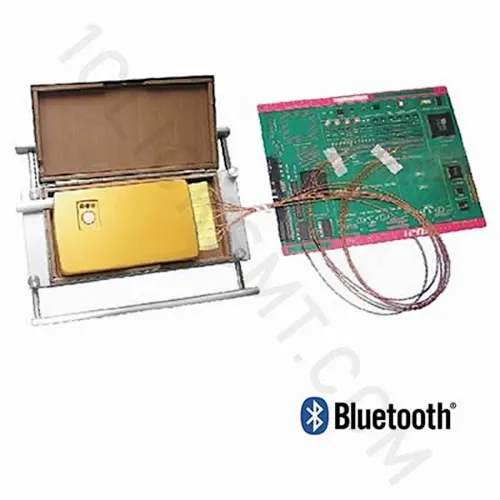

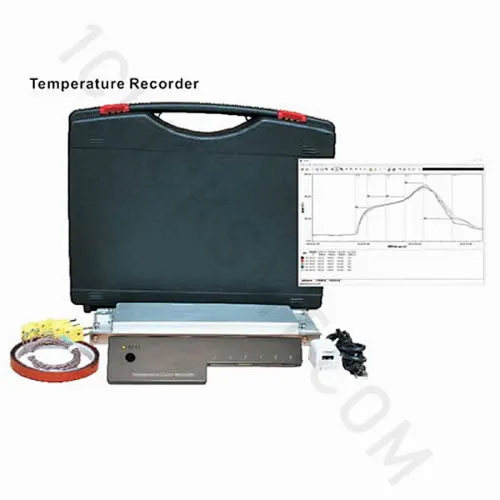

Temperature profile

E4/E6 Lead Free Reflow Oven Calibration

Temperature profile of every reflow oven will be tested before delivery.

Packing

E4/E6 Lead Free Reflow Oven aging before package

Dry partical with safty certification used in machine to avoid moisture, Vacuming package for long distance shipping,Plywood case and metal frame for big case.

E4/E6 Lead Free Reflow Oven Features

● Streamline shape design make the oven looks great. Touch screen with PLC controller which can save 50 groups  of  temperature parameters and provide extra 2 ports for profile test.

● Equipped with brand electrical component like Schneider (German made ) contactor, Omron (Japan made ) box relay.CE certificated high temperature resistant blower ensure stable and lower noise operation.

● Upper zone, hood and electrical box cover can be opened easily, easy  for cleaning and maintenance.

● The inner tunnel of the oven is made of stainless steel which can stand the high temperature and easy for cleaning.

● The entire upper and bottom zones are forced hot air convection.

● Stainless steel mesh belt,  chain conveyor and SMEMA connector.

● Unique program design can automatically adjust the start power consumption and  lower the start current.

E4 Structual Drawing


E6 Structual Drawing


E4 / E6 - Specifications

 Model

 E4

 E6

 Heating zones

 Upper 4 zones

 Upper 6 zones

 Bottom 4 zones

 Bottom 6 zones

 Heating tunnel

 980mm

 1540mm

 Dimension

 L1920*W750*H1250

 L2550*W750*H1250

 Net weight

 about 280Kg

 about 360Kg

 General power

 23KW

 33KW

 Power consumption

 Approx.3--7KW

 Approx.4--8KW

 Rising time

 15 mins

 15 mins

 Controlling type

 Touch screen and PLC

 Touch screen and PLC

 Heating method

 Fully forced air convection

 Fully forced air convection

 Temperature controlling

 PID close-loop control, SSR drive

 PID close-loop control, SSR drive

 Temperature range

 Ambient---350℃

 Ambient---350℃

 Temperature accurancy

 ±1 ℃

 ±1 ℃

 Temperature uniform

 ±2 ℃

 ±2 ℃

 Cooling

 one cooling zones, fans for cooling

 one cooling zones, fans for cooling

 Conveyor method

 Mesh belt and chain conveyor

 Mesh belt and chain conveyor

 Conveyor height

 900±20mm

 900±20mm

 Mesh belt width

 330mm

 330mm

 Max PCB width

 300mm

 300mm

 PCB clearance

 30mm

 30mm

 Conveyor direction

 Left to right

 Left to right

 Conveyor speed

 0-900mm/min

 0-900mm/min

 Hook lift

 Manual

 Manual

 Power supply

 380v,3ph,50hz

 380v,3ph,50hz

E4/E6 Lead Free Reflow Oven Include

1 PC. E4/E6 Lead Free Reflow Oven with:

 ◎ Air cooling

 ◎ Pin conveyor lubrication

 ◎ Mesh belt chain conveyor

 ◎ Colored  touch screen panel

 ◎ 4/6 independently controlled upper heating zones

 ◎ 4/6 independently controlled lower heating zones

 ◎ Corrosion-resistant, heatproof, stainless steel heating tunnel

 ◎ PID temperature controls for each zone with ±1˚C accuracy

 ◎ 1 year parts warranty

Plenty Free accessories:

430 630 Parts.PNG

Shipping Information:

E4

•Dimensions:

  E4 L2.19*W1.08*H1.48m

•Gross Weight:

  E4 about 500 KG

•Cubic Meter:

  E4  3.5CBM

E6

•Dimensions:

  E6 L2.77*W1.06*H1.52m

•Gross Weight:

  E6 about 700 KG

•Cubic Meter:

  E6  4.46CBM
