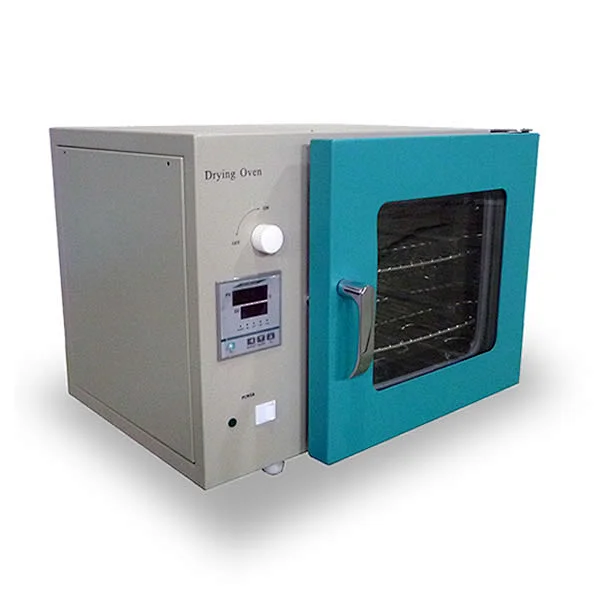

Desktop Drying Oven series

Desktop Drying Oven series

Versatile, affordable drying system suited to a number of applications like PCB baking & drying.(Bigger capacity than dektop series)

Desktop Drying Oven series Feature

Polished stainless-steel chamber.

Latest PID controller.

Uniform distribution of air temperature.

Forced-air convection.

Independent temperature-limiting alarm system ensures experiments run safely. (option)

RS485 connector is option which can connect computer to record the parameters and the variations of temperature. (option)

Forced-air convection system consists of a fan keeping running under a high temperature and proper air ducts to ensure a uniform

distribution of temperature in chamber.

Desktop Drying Oven - Specifications

Model

SX-9023A

SX-9053A

SX-9123A

SX-9203A

Temperature Range

RT+10~250℃,RT stands for room temperature.

Temperature Control

0.1℃

Temperature Stability

±0.5℃

Electrical Requirements

220V 50Hz

Input Power

500W

750W

1500W

2000W

W×D×H Interior Dimension(mm)

300*300*270

420*350*350

550*350*550

600*550*600

W×D×H Overall Dimension(mm)

500*450*440

710*520*520

840*530*730

890*730*780

Shelves per Chamber(Normal)

2 pcs

Timing Range

(mm)

1-9999min

Characteristic

Digital display, microcomputer controller, double tempered-glass observation window, adjustable air flow of both air inlet and outlet, mirror-surface stainless-steel inner tank, four circular corners, optional smart programmable temperature controller, model without “A” post-fixed means galvanized-steel tank
