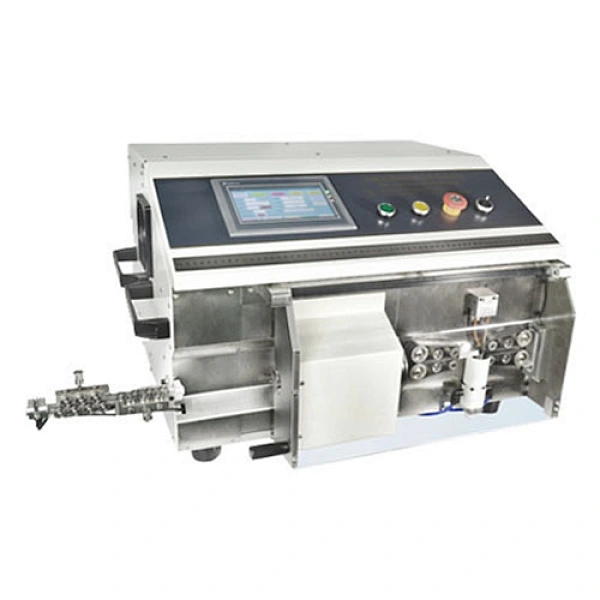

Automatic coaxial cable stripping machine TBX-9550

Automatic coaxial cable stripping machine TBX-9550



Rotating cutting head and V-shape blade :TBX-9550 adopt rotating cutting head to cut ,V-shape blade to cut and strip wire,it can precisely complete cutting process and improve productivity .



Motor and ball screw : Japan made step motor and Taiwan made Hiwin ball screw driving ensure stripping precision.

Automatic Coaxial Cable Stripping Machine TBX-9550 Features

TBX-9550 is a automatic high-precision coaxial-cable stripping equipment which is suited to strip flexible coaxial cable of 0.6- 3.5mm diameter,it can automatically complete multi-layer and multisegment wire cutting and stripping at one time .

TBX-9550 adopt rotating cutting head to cut ,V-shape blade to cut and strip wire,it can precisely complete cutting process and improve productivity .

TBX-9550 is equipped with high quality Japan made step motor and Taiwan made Hiwin ball screw which can ensure 0.01mm processing accuracy .

Adopt intelligent control technology ,friendly man-machine interface ,can store all kinds of process data ,easy to operate.

Blade is made of Swiss tungsten steel ,unique 3 side grinding technology on blades makes longer service life than normal blade.

Automatic Coaxial Cable Stripping Machine TBX-9550 specification :

  Model

  TBX-9550

  Maximum processing cable diameter

  3.5mm

  Minimum processing cable diameter

  0.6mm

  Maximum processing cable length

  9999mm

  Minimum processing cable length

  22mm

  Cutting depth

  0.01mm

  Maximum stripping length A-end (front-end)

   60mm

  Maximum stripping length B-end(rear-end)

  35mm

  Minimum stripping length

   0.1mm

  Maximum stripping layers

  9 layers

  Speed

  Stripping speed and feeding speed can be adjusted with the requirements

  Productivity

   800-1200 PCS/hr (depending on the cable type and length)

  Drive mode

  Motor/ball screw drive

  Display mode

  7”Touch screen with English interface

  Rotary cutting blade

   2pcs

  Cut stripping blades

  4pcs

  Wire clamping device

   Automatic self-aligning, motor drive, clamping force is controlled by program

  Store capacity

  0-99 kinds of cable processing data

  Power supply

  AC220V/50/60HZ,700W

  Dimensions

  L750X W670 X H460mm

  Weight

   93 KGs

  Working environment

  0 to 50℃,dry environment and no vibration of the work surface

Automatic coaxial cable stripping machine TBX-9550 application
