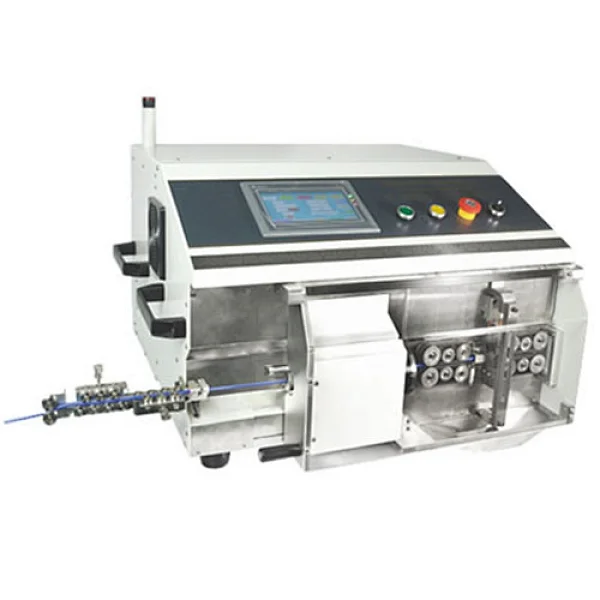

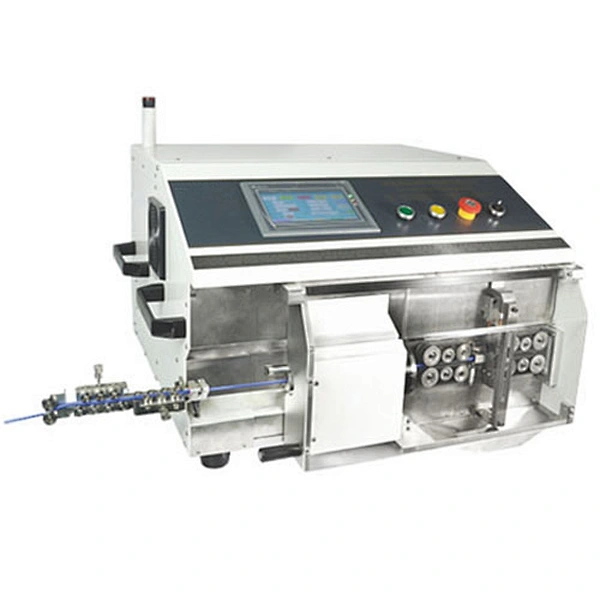

Automatic coaxial cable stripping machine TBX-9600

Automatic coaxial cable stripping machine TBX-9600



Rotating cutting head and V-shape blade :TBX-9550 adopt rotating



Motor and ball screw : Japan made step motor and Taiwan made Hiwin ball screw driving ensure stripping precision.

Automatic Coaxial Cable Stripping Machine TBX-9550 Features

TBX-9600 is a automatic high-precision coaxial-cable stripping equipment which is suited to strip flexible coaxial cable of 1.37- 5.5mm diameter(max 12mm is optional),it can automatically complete multi-layer and multisegment wire cutting and stripping at one time .

When machine start cable will be automatically positioned by clamping device ,cutting blade will cut shield according to setting parameter,then cable will be conveyed to cutting and stripping station,at last complete cutting and stripping process for each end of cable.

TBX-9600 is equipped with high quality Japan made step motor and Taiwan made Hiwin ball screw which can ensure 0.01mm processing accuracy .

Adopt intelligent control technology ,friendly man-machine interface ,can store all kinds of process data ,easy to operate.

Blade is made of Swiss tungsten steel ,unique 3 side grinding technology on blades makes longer service life than normal blade.

Automatic Coaxial Cable Stripping Machine TBX-9600 specification :



  Maximum processing cable diameter

  Standard 5.5mm,max 12mm is optional

  Minimum processing cable diameter


  Maximum processing cable length


  Minimum processing cable length


  Cutting depth


  Maximum stripping length A-end (front-end)


  Maximum stripping length B-end(rear-end)


  Minimum stripping length


  Maximum stripping layers

  9 layers


  Stripping speed and feeding speed can be adjusted with the requirements


   300-600 PCS/hr (depending on the cable type and length)

  Drive mode

  Motor/ball screw drive

  Display mode

  7”Touch screen with English interface

  Rotary cutting blade


  Cut stripping blades


  Wire clamping device

   Automatic self-aligning, motor drive, clamping force is controlled by program

  Store capacity

  0-99 kinds of cable processing data

  Power supply



  L970X W770 X H560mm


   102 KGs

  Working environment

  0 to 50℃,dry environment and no vibration of the work surface

Automatic coaxial cable stripping machine TBX-9600 application
