Wire clamping device :4 blades design,auxiliary blades has automatic straight-aligning function make stripping more precise,never damage cable. |
Cutting blades :Blade is made of Swiss tungsten steel ,unique 3 side grinding technology on blades makes longer service life than normal blade. |
|
|
|
|
Motor and ball screw : High quality step motor and ball screw driving ensure stripping precision. |
|

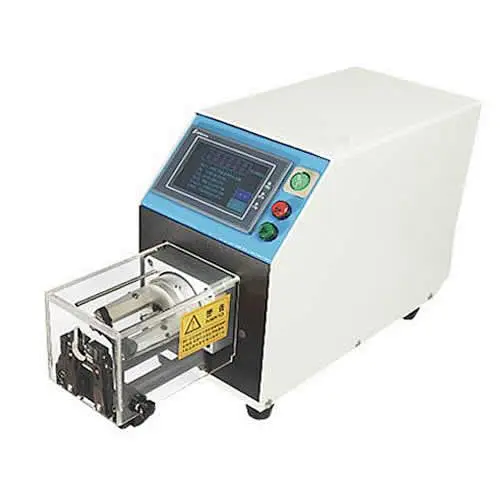

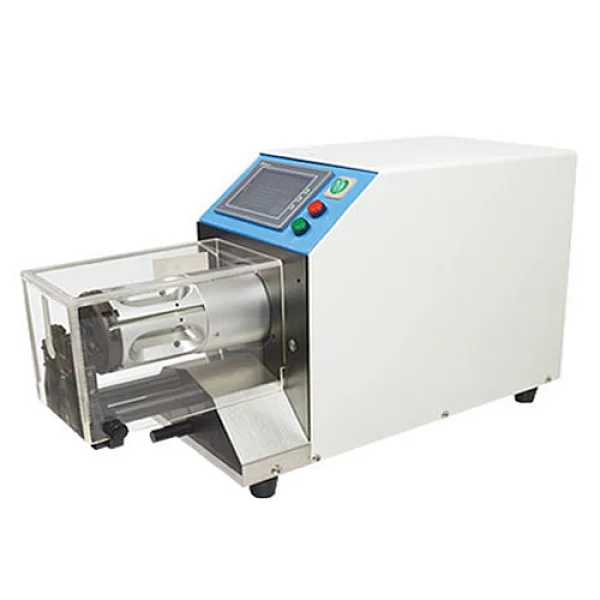

Semi automatic coaxial cable stripping machine TBX-8515/8023
![6_7$KVM5SOR]5OCI36S%JES.png](https://site-1306369054.file.myqcloud.com/4937895644105774/2022/06/62b270e64edab.png?imageMogr2/format/webp/auto-orient "6_7$KVM5SOR]5OCI36S%JES.png")
Semi Automatic Coaxial Cable Stripping Machine TBX-8515/8023 Features
|
● BX-8515/8023 Series is a high-precision coaxial-cable stripping equipment ,unique 4 blades design makes it can strip thin and hard material of coaxial cable with wide processing range , max stripping layer is 9 layers. |
|
● Wire clamping device is programmable with motor driving, self-align ,clamping force can be set on software . |
|
● 4 blades design,auxiliary blades has automatic straight-aligning function make stripping more precise,never damage cable. |
|
● Adopt intelligent control technology ,friendly man-machine interface ,can store max 100 kinds of process data ,easy to operate. |
|
● 2 kinds of start function of button or pedal ,stripping speed is adjustable. |
|
● Blade is made of Swiss tungsten steel ,unique 3 side grinding technology on blades makes longer service life than normal blade. |
|
TBX-8515/8023 Series Specification |
||
|
Model |
TBX-8515 |
TBX-8023 |
|
Maximum processing cable diameter |
15mm |
23mm |
|
Minimum processing cable diameter |
1.5mm |
2mm |
|
Minimum cutting depth |
0.01mm |
0.01mm |
|
Maximum stripping length |
85mm |
80mm |
|
Minimum stripping length |
0.1mm |
0.1mm |
|
Maximum stripping layers |
9 layers |
9 layers |
|
Driving mode |
Motor/ball screw drive |
Motor/ball screw drive |
|
Display mode |
Touch screen with English interface |
Touch screen with English interface |
|
Cutting blade |
4pcs |
4pcs |
|
Blade material |
Swiss tungsten steel |
Swiss tungsten steel |
|
Blade lifetime |
Approx 300,000 -500,000 times |
Approx 300,000 -500,000 times |
|
Centering plate |
4pcs |
4pcs |
|
Wire clamping device |
Automatic self-aligning, motor drive, clamping force is programmable |
Automatic self-aligning, motor drive, clamping force is programmable |
|
Productivity |
400-600 PCS/hr (depending on the cable type and length) |
400-600 PCS/hr (depending on the cable type and length) |
|
Starting mode |
Button/ Pedal |
Button/ Pedal |
|
Power supply |
AC220V/50/60HZ |
AC220V/50/60HZ |
|
Power |
380W |
380W |
|
Dimensions |
L640X W230 X H330mm |
L640X W230 X H330mm |
|
Weight |
19kgs |
19kgs |
