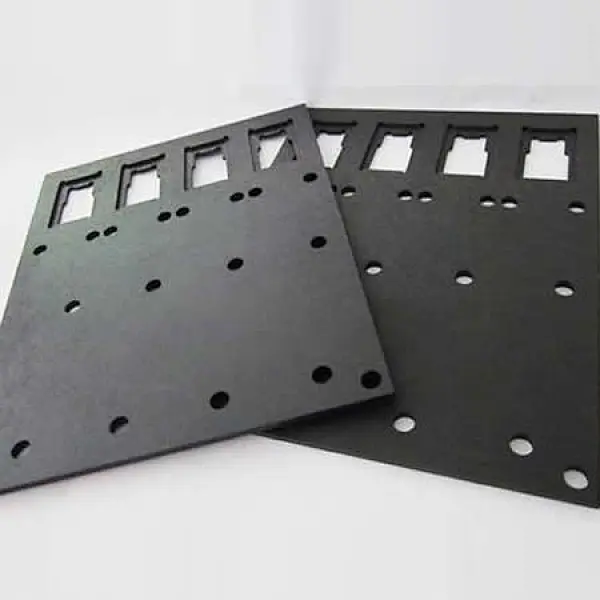

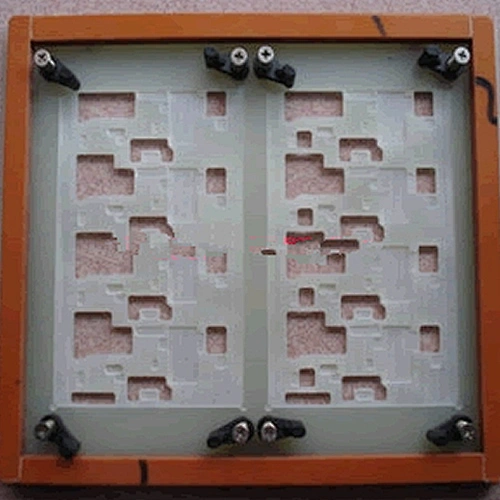

SMT Reflow fixtures

SMT Reflow fixtures

Accurate, repeatable location of PCB.Protect bottom side components from double-sided reflow.Prevent distortion and support the board through printing, placement and reflow without operator intervention.


Accurate,repeatable location of PCB.
Required for rigid-flex and flex circuit processing.
Process odd-shaped PCB's.
Process PCB's that are too thick for conveyors.
Process PCB's with components close to the edge of the board.
Protect bottom side components from double-sided reflow
Prevent distortion and support the board through printing,placement and reflow without operator intervention.

SMT Reflow fixture Feature

Flush-mounted PCB hold downs.
Reduced thermal mass for process transparency
ESD composite construction
Finger slots for easy PCB loading and unloading
