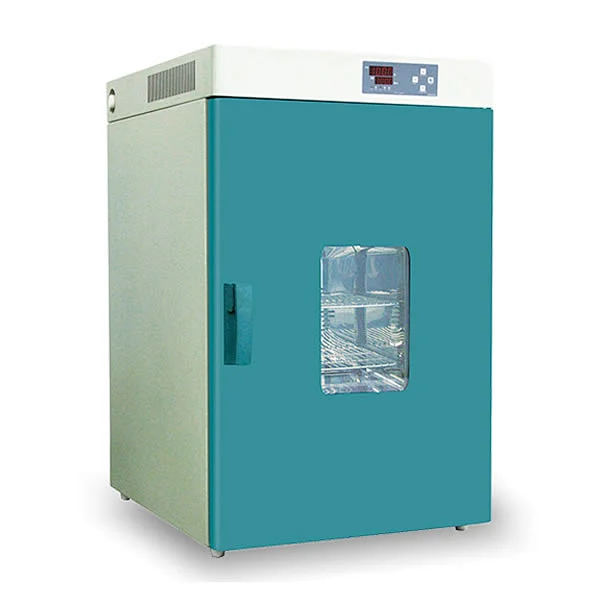

Vertical Drying Oven Series

Vertical Drying Oven Series

Versatile, affordable drying system suited to a number of applications like PCB baking & drying.(Bigger capacity than dektop series)

Vertical Drying Oven Series Feature

Polished stainless-steel chamber.

Latest PID controller.

Uniform distribution of air temperature.

Forced-air convection.

Independent temperature-limiting alarm system ensures experiments run safely. (option)

RS485 connector is option which can connect computer to record the parameters and the variations of temperature. (option)

Forced-air convection system consists of a fan keeping running under a high temperature and proper air ducts to ensure a uniform

distribution of temperature in chamber.

Vertical Drying Oven - Specifications

Model

SX
9030(A)

SX
9070(A/B)

SX
9140(A/B)

SX
9240(A/B)

SX
9420(A/B)

SX
9620(A/B)

SX
9920(A/B)

Temperature Range

Model with “A” post-fixed has a temperature range of +10~250℃ and model with “B” post-fixed has a temperature range of +10~300℃.

Temperature Control

0.1℃

Temperature Stability

±0.5℃

Electrical equirements

220V 50Hz

380V 50Hz

Input Power

550W

1050W/1240W

1500W/1740W

2100W/2500W

4000W/4500W

4500W/4800W

6000W/6500W

W×D×H Interior Dimension (mm)

340*320*320

400*350*500

450*550*550

500*600*750

600*550*1300

800*600*1300

1000*800*1600

W×D×H Overall Dimension (mm)

485*500*620

600*550*755

600*710*845

650*755*1045

745*750*1670

945*800*1690

1140*800*2150

Shelves per Chamber (Normal)

2 pcs

3 pcs

4 pcs

5 pcs

Timing Range (mm)

1-9999min

Characteristic

Digital display, microcomputer controller, double tempered-glass observation window, adjustable air flow of both air inlet and outlet, mirror-surface stainless-steel inner tank, four circular corners, optional smart programmable temperature controller, model without “A” post-fixed means galvanized-steel tank
