Hot Bar Soldering Machine HBS-A3 specification : |
|
|
Model |
HBS-A3 |
|
Y-axis movement mode |
cylinder |
|
Way of starting |
Start button |
|
Soldering head size |
MAX 60*5mm(Or customized) |
|
Minimum soldering pitch |
0.2mm |
|
power |
AC220V±10% 50HZ,2300W |
|
Soldering time |
1~99.9s adjustable |
|
Work pressure |
0.45-0.70Mpa |
|
Temperature setting |
RT ~ 500 ± 5 DEG C |
|
Machine weight |
75kg |
|
Soldering pressure |
1~20kg |
|
Work size |
Max 200*170mm |
|
Work environment |
10-60℃ |
|
Machine Size |
660*660*700mm |

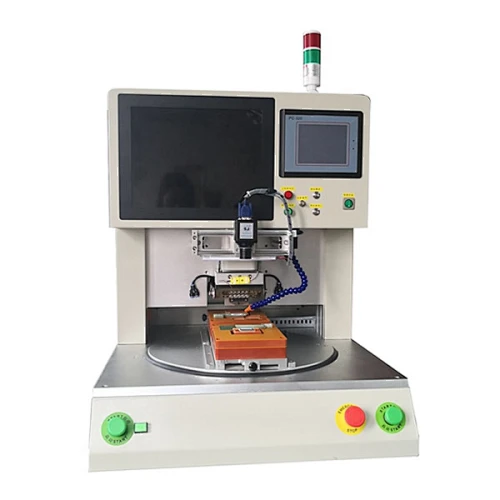

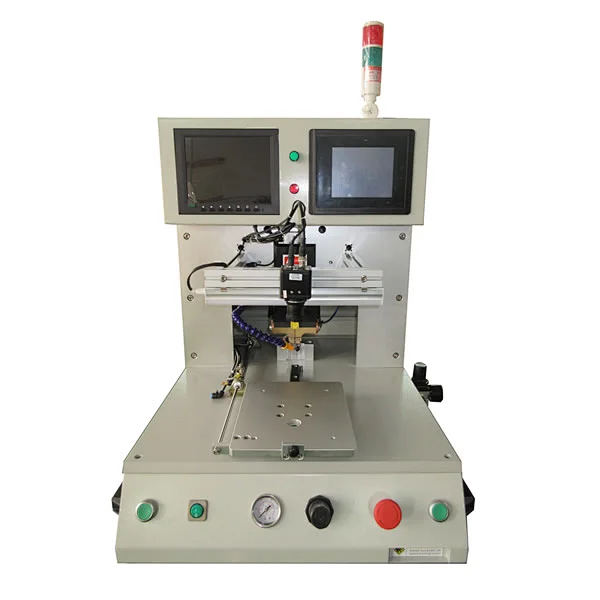

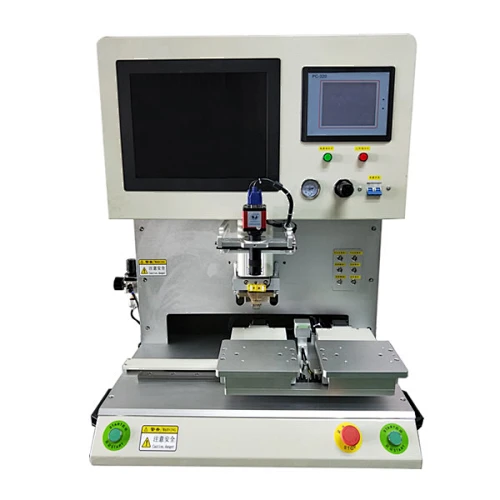

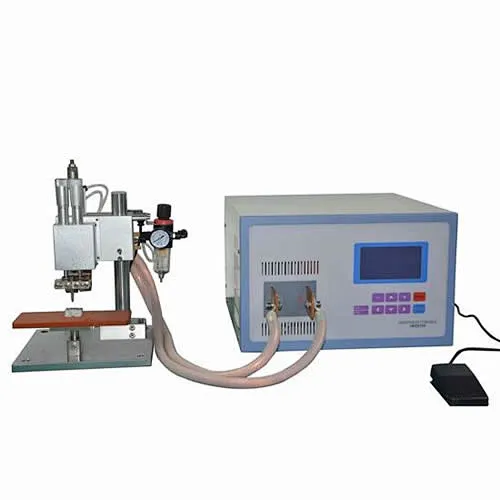

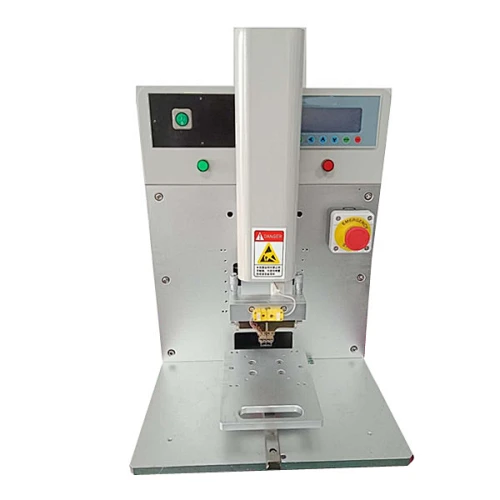

Hot Bar Soldering Machine HBS-A3
HBS-A3 Hot Bar Soldering Machine use thermode technology that based on repid reflow by pluse heating to effectively solder flexible board on the PCB .Real time display on the touch screen.CCD+displayer can accurate positioning and soldering quality check.
|
Hot Bar Soldering Machine HBS-A3 Configuration: |
|
1.Magnetic cylinder sensor switch : SMC |
|
2.Solenoid valve : made in Taiwan |
|
3.Connectors and trachea : made in Taiwan |
|
4.Filter regulator : made in Taiwan |
|
5.Precision cylinder under pressure regulator : SMC |
|
6.Control system: independent research and development ( Chinese ) |
|
7.Power transformer : 220V, 2000W |
|
8.Driver module : 45A |
|
9.Vacuum Generators : SMC |
|
10.Button switch: Schneider |
|
11.Relay: Omron |
|
12.Chassis components: aluminum plus bending parts |
|
13.Body color：gray |
|
Hot Bar Soldering Machine HBS-A3 Standard configuration : |
|
● Hot Bar Soldering Machine |
|
● Start button*1pcs |
|
● CCD+display*1set |
|
● Touch screen programming interface*1set |
|
● Air pipe*1pcs |
|
● 1 year parts warranty |
|
Hot Bar Soldering Machine HBS-A3 Optional configuration : |
|
● Customized precision fixture. |
|
● Customized Soldering tip |
|
● Start button |
|
● Emergency Stop button |
|
● Power switch button |
