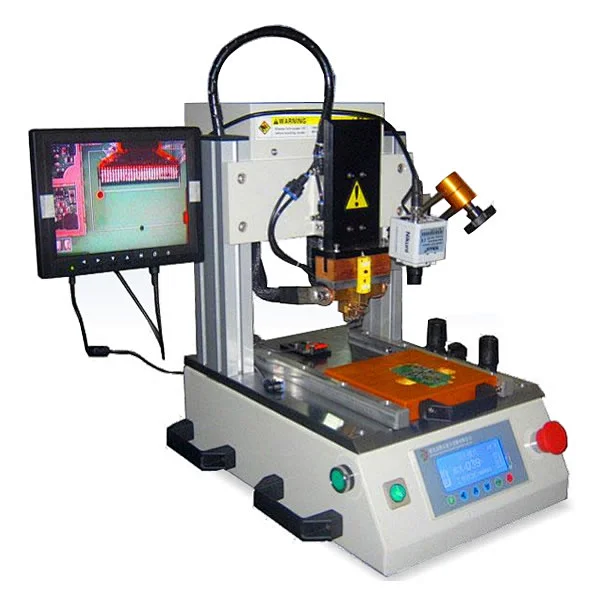

Hot Bar Soldering Machine HBS-A4
Hot Bar Soldering Machine HBS-A4

Hot Bar Soldering Machine HBS-A4

HBS-A4 Hot Bar Soldering Machine use thermode technology that based on repid reflow by pluse heating to effectively solder flexible board on the PCB .Real time display on the touch screen.Can option CCD+displayer can accurate positioning  and  soldering quality check.It is an economical high-cost ratio hot bar soldering machine

Hot Bar Soldering Machine HBS-A4 Features:

1.The heating rate is customized to meet different products.

2.Molybdenum alloy head to ensure temperature stability, fast heating speed and long service life.

3.The level of soldering head is adjustable , to ensure uniform part assembly processing.

4.Digital display to control temperature,easy and clear.

5.With digital pressure meter, can be preset pressure range.

6.Special welding materials.

7.It is equipped with precise PID control, phase Angle instead of pulse drive.

8.Little vibration, low noise, no voltage fluctuation.

9.Molybdenum alloy soldering head instead of traditional titanium alloy, warmming faster, good coefficient of heat transfer, wear-resisting.

Hot Bar Soldering Machine HBS-A4 specification :

Model

HBS-A4

Y-axis movement mode

cylinder

Way of starting

Start button

Soldering head size

MAX 60*5mm(Or customized)

Minimum soldering pitch

0.2mm

power

AC220V±10% 50HZ,2300W

Soldering time

1~99.9s adjustable

Work pressure

0.45-0.70Mpa

Temperature setting

RT ~ 500 ± 5 DEG C

Machine weight

75kg

Soldering pressure

1~20kg

Work size

Max 150*150mm

Work environment

10-60℃

Machine Size

460*480*560mm
