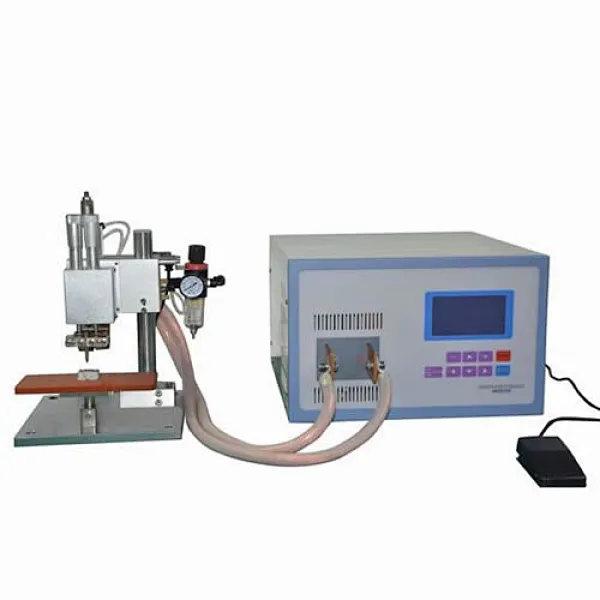

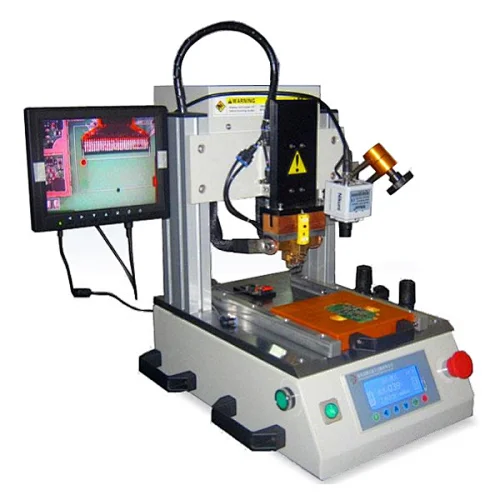

Precise resistance soldering machine WZ-04LB
Precise resistance soldering machine WZ-04LB

Precise resistance soldering machine WZ-04LB

Precision resistance welding machine using AC-DC-AC-DC conversion technology to implement DC spot welding, compared to frequency AC spot welding technology, DC spot welding high quality, fast welding, energy saving effect, small size, light weight equipment . Using the MCU precise control of welding process, real-time monitoring and display the current welding current and other parameter values.

SSIY8Y%CUM}N`OXLX}HSN7G.jpg QUHICXI(QGI(J(W{F0TEI4U.jpg
Inverter resistance welding power supply : DC output. Welding current is pulsating DC, waviness is small, no AC zero cross-heating workpiece shortcomings, heat concentration, improve the thermal efficiency of welding for non-ferrous materials and some difficult welding of welding materials particularly suitable for welding process stability, welding quality Significantly increased. At the same time the electrode life has been extended. By adjusting the size of the air pressure to control the soldering pressure
R3TOW0B)LXNE{9A$CBHBK8H.jpg 7EC}OT5GB~MU]~%9B4CP(5E.jpg
Using AC-DC-AC-DC conversion technology, making the time control can reach milliseconds and accuracy, control response and control accuracy has been greatly improved.Inverter bridge current automatic shutdown, and enhance system protection Current soldering waveform
9)_V27(HN$0B8JO)XV8PD6Q.jpg L)H(RJ(@6C{WM77GQ${$2V5.jpg
Separate increase pressure adjustment knob:Together with the air pressure to adjust the soldering pressure. Throttle valve : By controlling the cylinder throttle valve to adjust the rise and fall speed
[KDJK_PL]KW[FJ9V(5E`}7F.jpg 4TRL@P9B$3EO1WN316F@09E.jpg
Electrode: The electrode is made of tungsten alloy, has a strong high temperature hardness and strength, at room temperature and high temperature environment has good electrical conductivity and thermal conductivity. And strong antioxidant capacity. Customized soldering electrodes

Customized fixture

D1%R[50HL3~B6)[I_9{RF}1.jpg _4Q}E(T4D{6}C`5VG]F7_AN.jpg
Three-stage heating setting, with the current slow rise and slow down function, the time is set to (0-250ms or 0-1s), suitable for complex welding process needs.The soldering current is displayed on the LCD screen in real time

Current upper and lower limit setting interface

, real-time monitoring current current is beyond the se tting range


Warning interface : Displays the current error

Precise resistance soldeing machine specification

Model

Input voltage(V)

rated power(kVA)

Maximum output current(DCA)

Control mode

Duty cycle(%)

Inverter frequency(kHz)

WZ-04LB

3~380V

12

4000

Constant current mode/Constant power mode/Constant voltage mode/Constant pulse width mode

10

4

Welding cycle time

Number of soldering pulses

Current ramp-up and ramp-down control

Soldering Parameters Storage Quantity (Group)

Dimensions(mm)(L*B*H)

weight(kg)

11

3

have

20 groups

460*400*300

33
