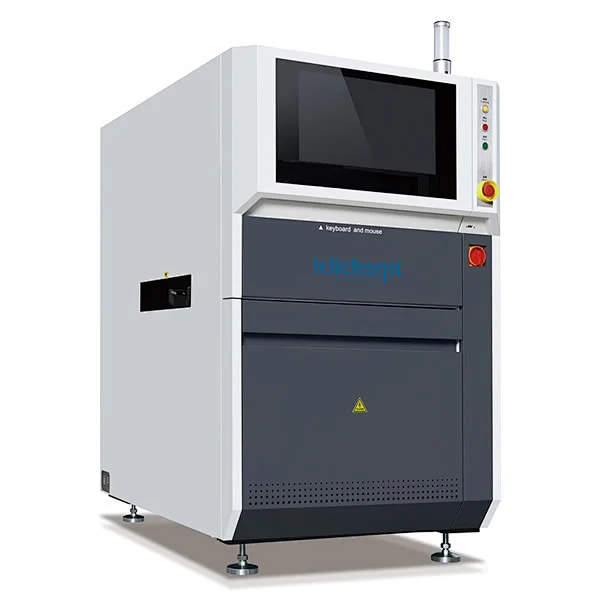

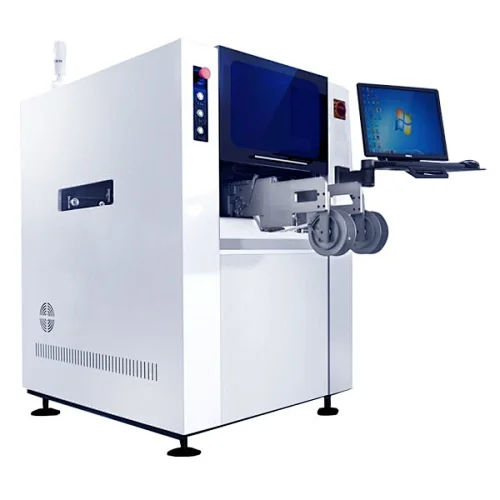

LM450 series is a  fully automatic laser marking machine  for marking 1D code, QR code, text, symbol or graphic on the surface of PCB. It consists of laser marking system, XY precision motion platform, CCD visual system for PCB positioning, conveyor with automatic width adjustment  and camera online barcode reading system. CO2 laser system/UV laser/Fiber laser is selectable for different application.

Laser Marking System LM450 series Description :

1. Laser Marking System LM450 series with compact size, can be easliy intergrated into production line help you realize automation.

2. LM450 series can mount virous high quality laser head for different application, such as USA SYNRAD CO2 laser head, INNO UV /Green laser head, Raycus fiber laser head.

3. Capable to print 1D barcode, 2D Data matrix barcode, 2D QR code etc.

4. X/Y axis adopt servo motor control system with high precison ball screw and linear guide rail which ensures high accuracy of motion system.

5. CCD +fiducial recognition system automatically correct the offset of PCB position.

6. Standard equipped with fume extrator ensures a clean environment.

7. CCD barcode reader check the printed barcode to avoid defective barcode printed going to next process.

8. Optional built in PCB flipping system realize automatic PCB flipping and double side marking.

9. LM450-C is capable to connect with customer MES system.

10. Industrial PC, full English interface with Windows 7 OS, professional software, easy to operate.

Laser Marking System LM450-C CO2 laser head Features:

Laser Marking System LM450-C CO2 laser head  Features :

● Laser head:Synrad’ s 48-series Rugged & reliable.

● Wave length : 10640nm

● More than 50,000 applications worldwide
Service life : more than 40,000 hours.

● Frequently used bar code format

Frequently used bar code format

Laser Marking System LM450-C Features:

Mark Sample with CO2 laser head :

Mark Sample with CO2 laser head :

Mark Sample with CO2 laser head (under 60times microscope)

Mark Sample with CO2  laser head  (under 60times microscope)

Laser Marking System LM450-U UV laser head Features:

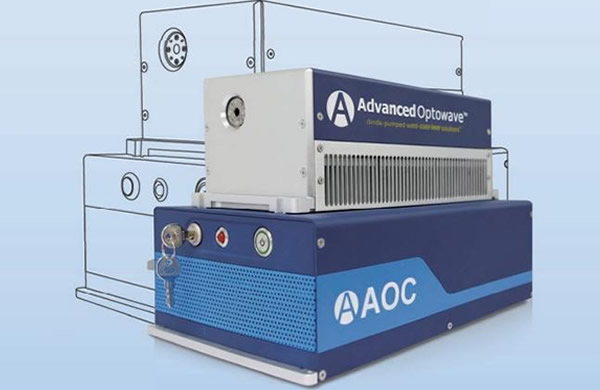

Laser Marking System LM450-U  UV laser head

● Laser head:INNO laser

● model : FOTIA-355

● Wave length : 355 nm

● More than 50,000 applications worldwide
Service life : more than 20,000 hours

● UV laser application:

UV laser application

Laser Marking System LM450-G Green laser head Features:

Laser Marking System LM450-U  UV laser head

● Laser head:INNO laser,

● model : FOTIA-532

● Wave length : 532 nm

● More than 50,000 applications worldwide
Service life : more than 20,000 hours

● Suitable application: certain plastics, silicon and reflective metals material.

Suitable application:  certain plastics, silicon and reflective metals material.

Laser Marking System LM450-G Fiber laser head Features:

Laser Marking System LM450-G  Fiber laser head

● Laser head:Raycus laser

● model : RFL-P20QEr

● Wave length : 1060 nm

● More than 50,000 applications worldwide
Service life : more than 50,000 hours

● Suitable application: electronic components, hardware accessories, screen cover etc.

Suitable application: electronic components, hardware accessories, screen cover etc.

PCB Laser Marking Application comparison:

PCB Laser Marking Application comparison

Laser Marking System LM450 series Flipping system:

Optional built in PCB flipping system easily realize automatic PCB flipping and double side marking.

Laser Marking System LM450 series Flipping system

Laser Marking System LM450 series Features:

Laser Marking System LM450 series

● Standard equipped with fume extrator ensures a clean environment.

Laser Marking System LM-450 Specification :

Model

LM450-C

LM450-U

LM450-G

LM450-F

Laser type

CO2 laser

UV laser

Green laser

Fiber laser

Laser wave length

10640 nm

355 nm

532 nm

1060 nm

Laser head

USA made Synrad laser system

China made INNO UV laser

China made INNO green laser

China made Raycus fiber laser

Laser power

10 W

5 W

10 W

20 W

varifocal range

2D laser

Working method

laser moving

X/Y platform moving

X/Y platform moving

laser moving

Laser cooling

Forced air cooling

Water cooling

Water cooling

Forced air cooling

2D barcode marking

2mm*2mm

1.5 mm*1.5 mm

1.5 mm*1.5 mm

2mm*2mm

Laser marking range

55*55mm

Repeatable positioning accuracy

±0.025mm

Positioning system

CCD+mark recognition

Max PCB Size

Standard with L450*W450mm Option with PCB flipping system 450*450mm

PCB Thickness

0.5—3mm

PCB Height

UP:35mm DOWN:15mm

PCB Clamping system

Standard configuration

Conveying System

900+-20mm, left-right

Marking object

characters, 1D, 2D barcode, drawing data.

Power supply

1P , AC 220V, 50/60HZ

Power

1.5KW

Machine size

Machine size Standard :W 900*D 1480*H1650mm, W900*D1760*H1650mm with built in flipper

Standard :W 900*D 1530*H1650mm Standard :W 900*D 1530*H1650mm Standard :W 900*D 1555*H1650mm

Machine weight

Approx standard : 650KG, 800KG with flipper

Approx standard : 650KG Approx standard : 650KG Approx standard : 650KG
