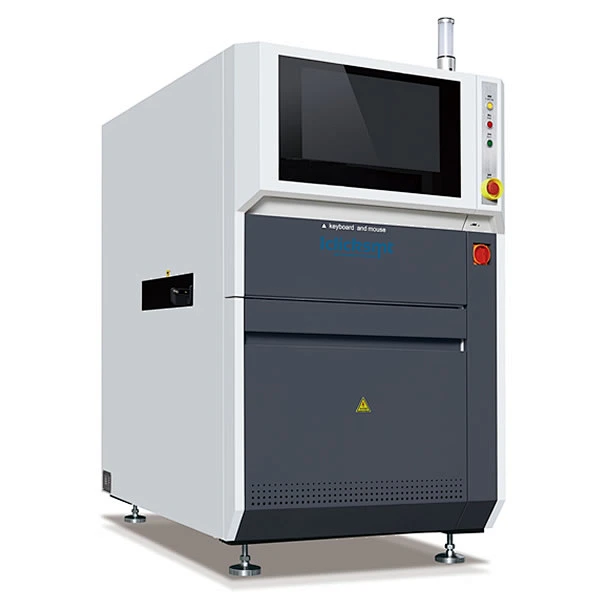

PM-450 is a fully automatic inkjet printing machine for printing 1D code, 2D QR code on the surface of PCB. It consists of ink jet printing system, X/Y/R precision motion platform, CCD visual system for PCB positioning and barcode scanning, conveyor with automatic width adjustment.

PM-450 adopt famous brand  Videojet 1620HR inkjet system which ensures high quality inkjet printing with high printing speed.

● PM-450 adopt famous brand Videojet 1620HR inkjet system which ensures high quality inkjet printing with high printing speed.

● Capable to print Capable to print 1D barcode:CODE39 EAN128 DM, 2D QR etc.

Automatic  Inkjet Printing System  PM-450  inkjet printing system :

X/Y axis adopt Panasonic servo motor with it's control system with high precison ball screw and linear guide rail which ensures high accuracy of motion system.

● X/Y axis adopt Panasonic servo motor with it's control system with high precison ball screw and linear guide rail which ensures high accuracy of motion system.

Automatic width adjustment and PCB clamping device.

● Automatic width adjustment and PCB clamping device.

Automatic Inkjet Printing System PM-450 specification:

Model

PM-450

Inkjet Printing System

Inkjet printing system Markem.imaje inkjet 9000 series printing head
2D barcode printing size 2.0mm*2.0mm to 8.0mm*8.0mm
Max printing rows 5
Suitable material accuracy PCB
Repeatable printing accuracy ±0.1mm
Printing resolution 115 DPI
Printing speed 6.6m/sec (according to font type)
Printing direction 0-360 degree
Barcode type code-39, EAN128, 2D:data matrix, QR, etc.
Positioning system CCD+mark recognition

PCB parameter

Max PCB Size L450*W450mm
PCB Thickness 0.5—3mm
PCB edge width 5mm
Max load ≦2Kg

PCB parameter

Axis number 3 axis, X/Y axis driven by servo motor, R axis driven by step motor

Conveying system

PCB Clamping system lower clamping
Conveying System 900+-20mm, left-right ro right -left
Communication SMEMA , Ethernet

PC and software

Industrial PC, LCD monitor, keyboard&mouse
Windows 7 operation system, English interface of software

Utility

Power supply 1PH AC 220V, 50/60HZ
Air requirement 0.5-0.7Mpa, 10L/min.
Power 1.5KW
Machine size W 950*D 1460*H1600mm(not including light tower)
Machine weight approx 600Kg
