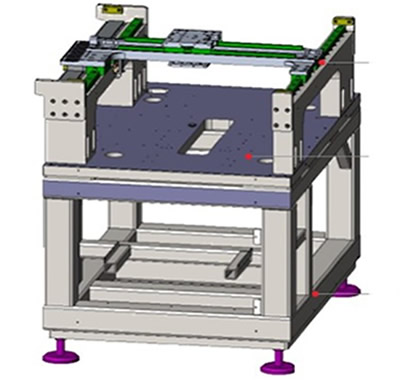

● High rigidity welding frame to ensure high speed and stable operation. |
|
|

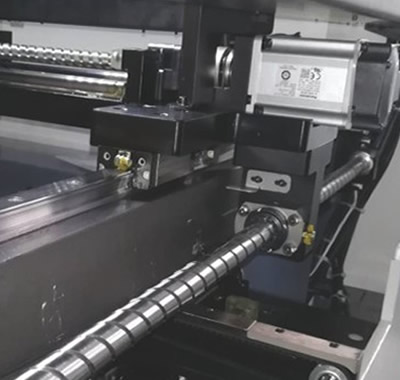

● X/Y axis driven by servo motor with THK guide rail, repeatability can reach ±0.01mm. ● Labeling accuracy: ±0.1mm. |
|
|

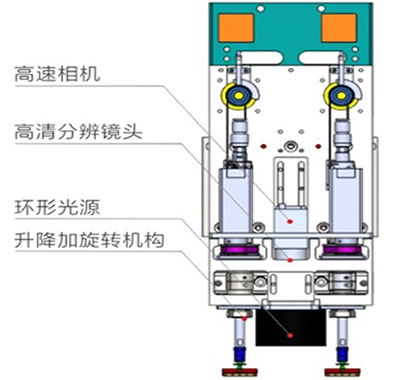

● 2 Lableing head with rotation mechanism. ● Top camera to recognize fiducail and correct offset. |
|
|

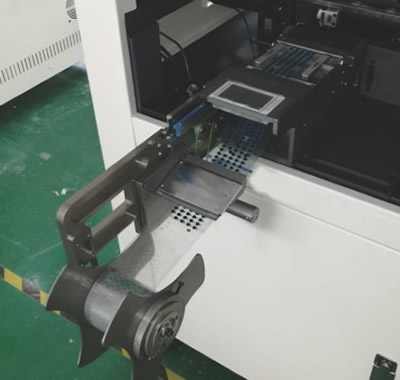

● High precision electronic feeder for various label with precise label stripping and feeding. |

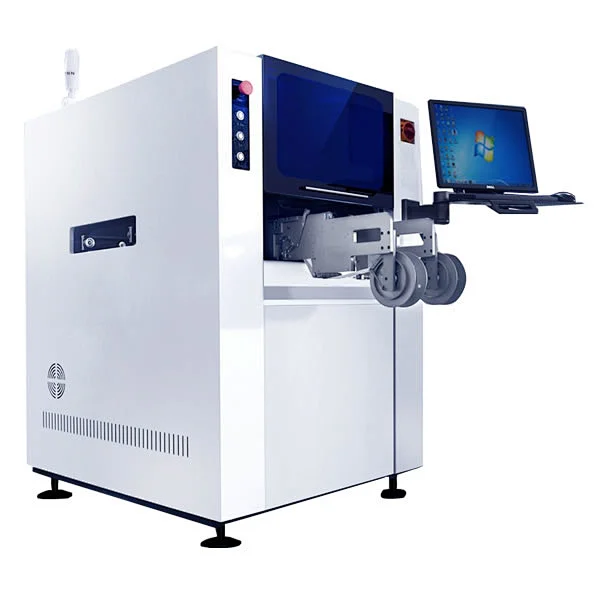

Automatic Labeling Machine LAB-400S
Inline labeling system , conveyor with standard SMEMA connector .
Max Product size : 400mm x 400mm
X/Y axis driven by servo motor .
Top CCD for Fiducial recognition .
Bottom CCD to correct lable position.
2 Labeling head
Industrial PC, full English interface with Windows 7 OS.
|
Automatic Labeling Machine LAB-400S Features: |
| ● Inline labeling system, conveyor with standard SMEMA connector. |
|
● Max Product size : 400mm x 400mm. |
|
● X/Y axis driven by servo motor. |
|
● Top CCD for Fiducial recognition. |
|
● Bottom CCD to correct lable position. |
|
● 2 Labeling head. |
|
● Industrial PC ,full English interface with Windows 7 OS. |
|
Automatic Labeling Machine LAB-400S specification: |
||
|
Model |
LAB-400S |
|
|
Overall Dimension |
L*W*H | Approx 900*1200*1500cm |
| Weight | around 800kg | |
|
PCB Parameter |
PCB size | Min:60mm*60mmMax:400mm*400mm |
| PCB thickness | 0.5-3.0mm | |
|
Operation System |
OS |
Windows 7 |
|
Vision System |
Top CCD | Fiducial recognition |
| Bottom CCD*1set | Correct X/Y/R labeling offset | |
|
Labeling accuracy |
±0.1 mm |
|
|
Labeling speed |
approx 3000 CPH |
|
|
Lable size |
L5mm*W5mm-L60mm*W30mm |
|
|
Labeling head |
Double labeling head |
|
|
Conveyor |
Auto width adjustment | |
| SMEMA connector | ||
| Conveying height: 900mm±20mm, Conveying direction: L to R, or R to L | ||
|
Feeder Quantity |
Standard 1 set |
|
|
Power supply |
1P, 220V, 50/60Hz |
|
|
Air pressure |
0.6Mpa |
|
|
Power |
Max 2 KW |
|
