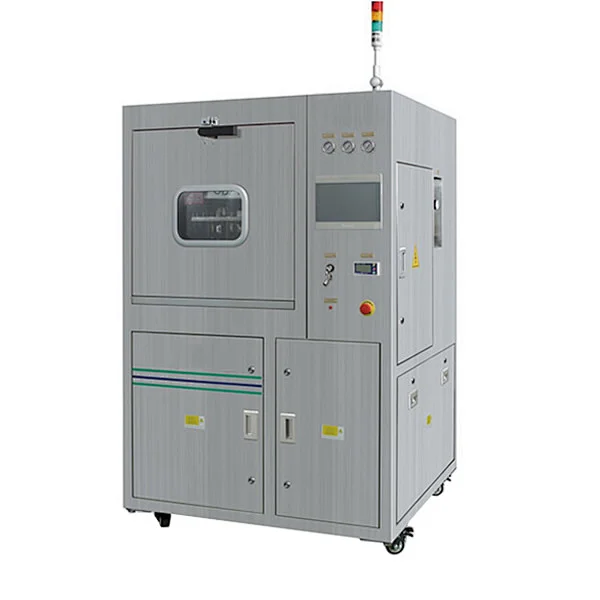

AQ-650 is mainly developed for the cleaning of PCBA in the electronics manufacturing industry. It uses the industry's most advanced cleaning process “water-based liquid” for cleaning, achieving 99% cleaning and environmental protection. The machine consists of a cleaning system, a rinsing system, a drying system, a filtration system.

Visualization of the whole process: Cleaning room equipped with visual windowcleaning process can be monitored at all time.

● Visualization of the whole process: Cleaning room equipped with visual windowcleaning process can be monitored at all time.

● Large cleaning baskets:610mm(L) ×560mm(W) × 100mm(H) 2 layer , Meet larger PCBA sizes and higher cleaning production.

Spraying System: Upper and bottom spraying system, each 12 sets nozzles , total 48 sets nozzle to make sure 360 degree cleaning.

● Spraying System: Upper and bottom spraying system, each 12 sets nozzles , total 48 sets nozzle to make sure 360 degree cleaning.

● The most scientific nozzle design(patent ):Increasing nozzles from left to right, Enhance the cleaning efficiency, Distribution nozzles up and down, Completely solve the blind clean area

Spray Pump System

● Spray Pump System: High power(5.5KW) & high efficiency stainless steel spray pumps, spray pressure can reach 60 ~ 80PSI, pressure can be adjusted based on actual requirement to clean the contamination.

Nozzle pressure is adjustable

● Nozzle pressure is adjustable

Convenient liquid add System:

● Convenient liquid add System: Adopt “Dosatron Automatic mixing System” from Germany, it can set according to proportion (5% ~ 25%) automatic proportioning DI water and chemical liquid.

Circulating and Filtering System:

● Circulating and Filtering System: Adopt 0.45μm filter, can filter dust and other particulate impurities. So that the chemical liquid recycling can be maintained better cleaning performance and longer life. Meanwhile ,can reduce operating costs.

DI water conductivity mointor.

● DI water conductivity mointor.

Independent chemical liquid adding pump.

● Independent chemical liquid adding pump.

Drying system.

● Drying system.

Offline PCBA Cleaner AQ-650 specification :

Model

AQ-650

Clean Basket Size

Max 610mm(L) X560mm(W) X100mm(H)mm 2layers

Max Product Size

Max 600mm(L) X520mm(W) X150mm(H)mm

Min Product Size

Min 20mm(L) X20mm(W) X150mm(H)mm , the small product need customized fixture to fix it.

Dilution Tank Capacity

Max 70L

Chemical Liquid Tank Capacity

30L

Spray Tank Capacity

17L-23L

Cleaning method

360°Whirl/Ejection for cleaning; hot air for drying

Cleaning Time

5~20 Minutes ( Reference )

Rinsing Time

1-2 Minutes ( Reference )

Rinsing Times

1-10(Set)

Drying Time

20~30 Minutes ( Reference )

Cleaning Liquid Recovery Filter

0.45um ( filter tiny impurities: solder paste, flux, rosin and pollutants )

Rinsing Liquid Discharge Filter

0.45um ( filter tiny impurities: solder paste, flux, rosin and pollutants )

Dilution Liquid Heating Temperature

Room temperature~75°

Drying Heating Temperature

Room temperature~75°

Resistivity Meter Monitoring Range

0mΩ~18mΩ.cm

DI Water Supply

30~60L/min

DI Water Pressure

0.2-0.4Mpa

DI Water Entrance Pipe Connection

6/8 inch

Dilution Tank Heating Power

9KW

Spray Tank Heating Power

3KW

Drying Heating Power

8KW

Cleaning Motor

5.5KW

Total Power

32KW

Total Current

55A

Air consumption

200-400L/Min

Air Supply

0.45Mpa~ 0.7Mpa

Chemical liquid Adding

Automatic

Power Supply

3Phase 380V 50/60HZ

Net Weight

400Kg

Exhaust Size

Φ100mm(W)×30mm(H)

Machine Size

L1200 × W1100 × H1830(mm)
