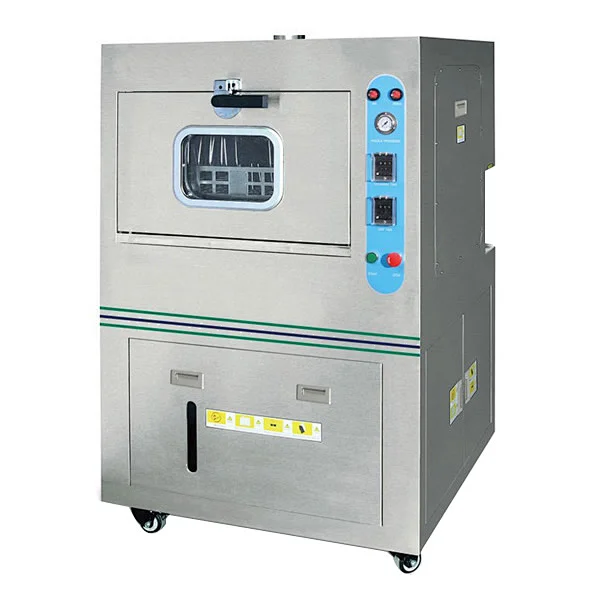

Pneumatic Scraper And Misprinted PCBA Cleaner PSC-600
Pneumatic Scraper And Misprinted PCBA Cleaner PSC-600

Pneumatic Scraper And Misprinted PCBA Cleaner PSC-600

Pneumatic Scraper And Misprinted PCBA Cleaner PSC-600  Cleaning process :

PSC-600  Cleaning process :

Exhaust port

Exhaust port
Inlet air pressure regulator, which filter the oil and water in the compressed air. ●    Inlet air pressure regulator, which filter the oil and water in the compressed air.
Stainless steel liquid tank with level display, which can  contain various types of  acid and alkali resistant cleaning liquid. ●    Stainless steel liquid tank with level display, which can  contain various types of  acid and alkali resistant cleaning liquid.
Germany made Hengstler pneumatic timer. ●    Germany made Hengstler pneumatic timer.
USA made Ingersoll RandIp neumatic diaphragm pump. ●    USA made Ingersoll RandIp neumatic diaphragm pump.
10 μm filtering screen(filter impurities and labels). ●    10 μm filtering screen(filter impurities and labels).

filter (filtering tiny particles and solder paste)

●    5 μm  filter (filtering tiny particles and solder paste)

●    1 μm (filter micro particles and rosin)

Cleaning basket size : Maximum size L560*W610*H100 (mm)

●    Cleaning basket size : Maximum size L560*W610*H100 (mm)

Pneumatic Scraper And Misprinted PCBA Cleaner PSC-600 specification :

  Model

  PSC-600

  Cleaning basket size

   Max  L560 × W610 × H100(mm)

   Scraper size (max)

    600mm

  Cleaning fluid capacity

   50L(Max)

  Optimum liquid usage

    40L

   Cleaning method

   360 ° rotating cleaning fluid injection and high pressure air injection (cleaning and drying)

    Cleaning time

   1-15 minutes (conventional process)

   Drying time

   1-15 minutes (conventional process)

   External air pressure

   0.45Mpa ~ 0.7Mpa

    Filtering system

   Three-stage filtering

    Level 1 filter

   10 μm filtering screen(filter impurities and labels)

    Level 2 filter

   5 μm  (filtering tiny particles and solder paste)

   Level 3 filter

   1 μm (filter micro particles and rosin)

    Exhaust port size

    Φ120  × H40(mm)

    Air consumption

   400-600L/Min

    Machine net weight

    260kg

   Machine size(mm)

   L1000  × W1000 × H1650(mm)
