Vertical Cleaner for Stencil & PCBA VSP-870

Vertical Cleaner for Stencil & PCBA VSP-870

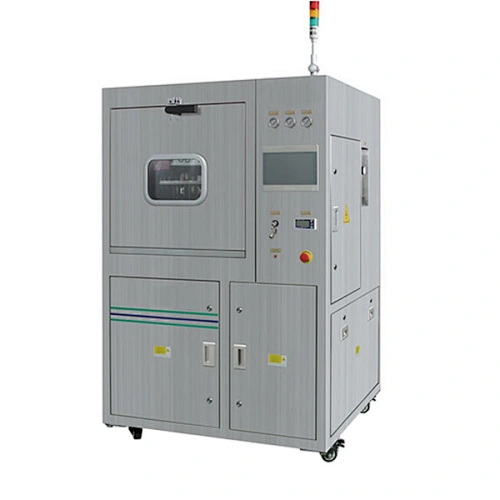

VSP-870 use water based liquid  for screen stencil ,PCBA, printing scraper cleaning. The equipment  can realize atutomatic cleaning ,rinsing and drying process accroding to  preset program.

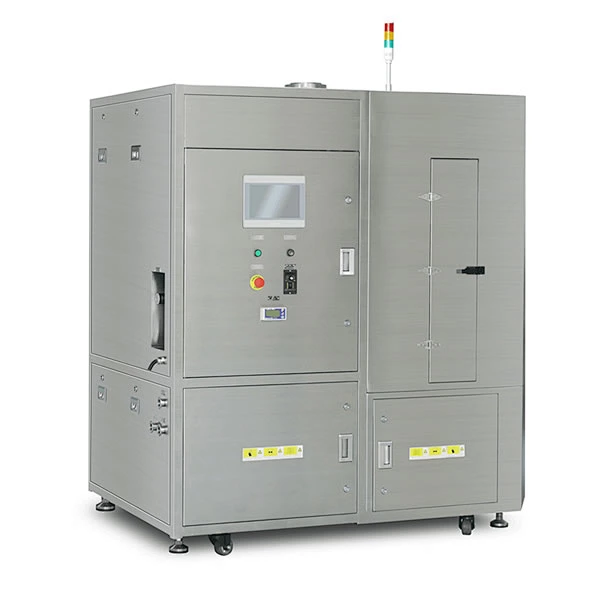

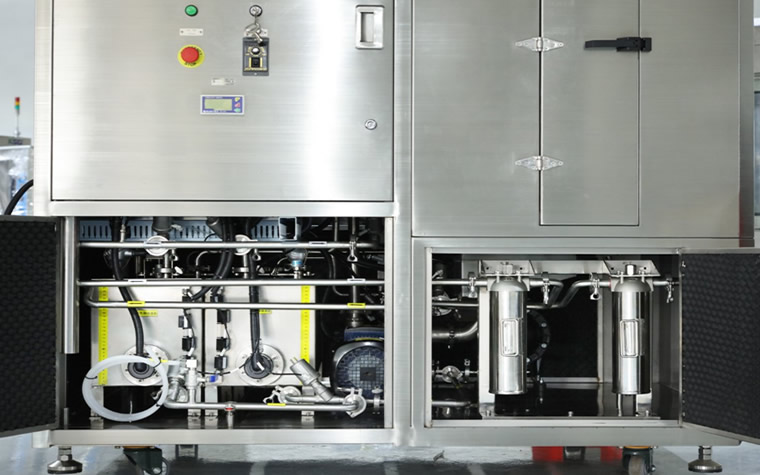

The whole machine is made of 304 stainless steel, beautiful and durable.

beautiful and durable.jpg

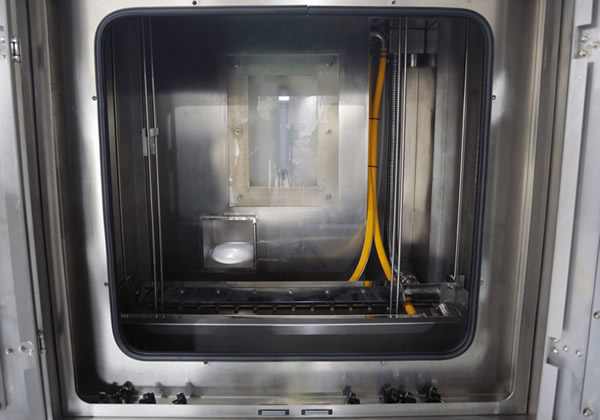

Visual viewing window to monitor cleaning process, pressure guage to monitor system working pressure  in real time.

●   Visual viewing window to monitor cleaning process, pressure guage to monitor system working pressure  in real time.

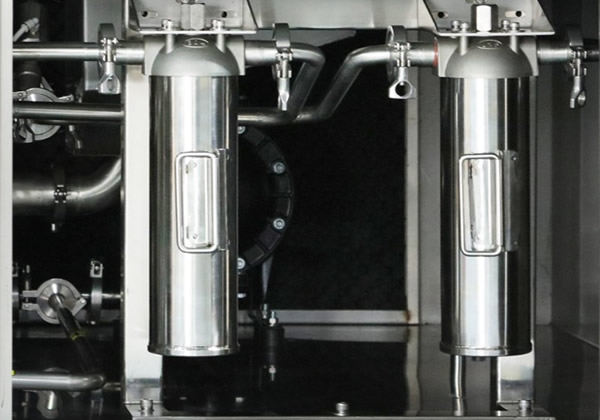

0.22um precision Filtering System ensure cleaning quality

●   0.22um precision Filtering System ensure cleaning quality

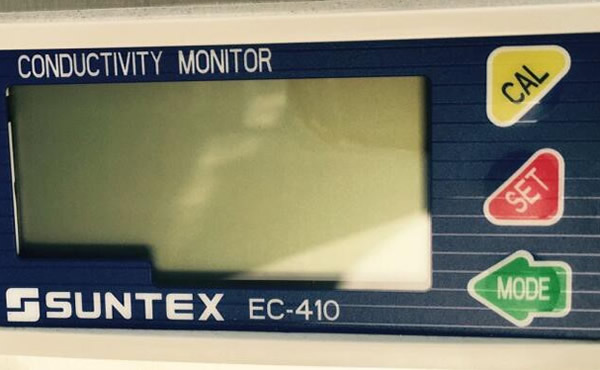

DI water conductivity mointor to monitor resistivity of rinsing DI water in real time

●   DI water conductivity mointor to monitor resistivity of rinsing DI water in real time

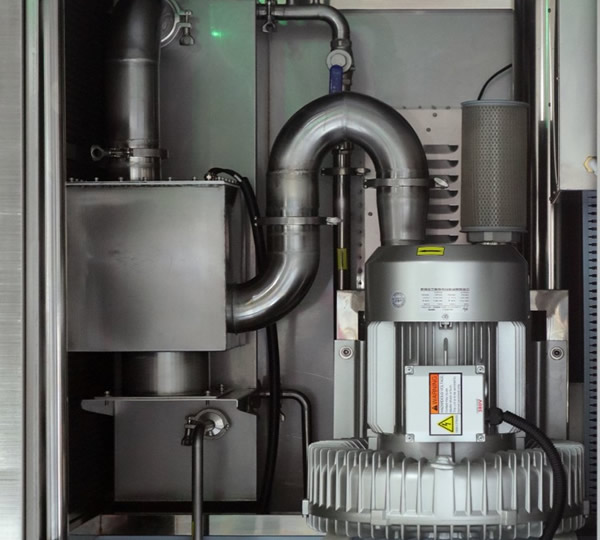

Hot air drying system.

●   Hot air drying system.


Vertical Cleaner for Stencil & PCBA VSP-870 Features:

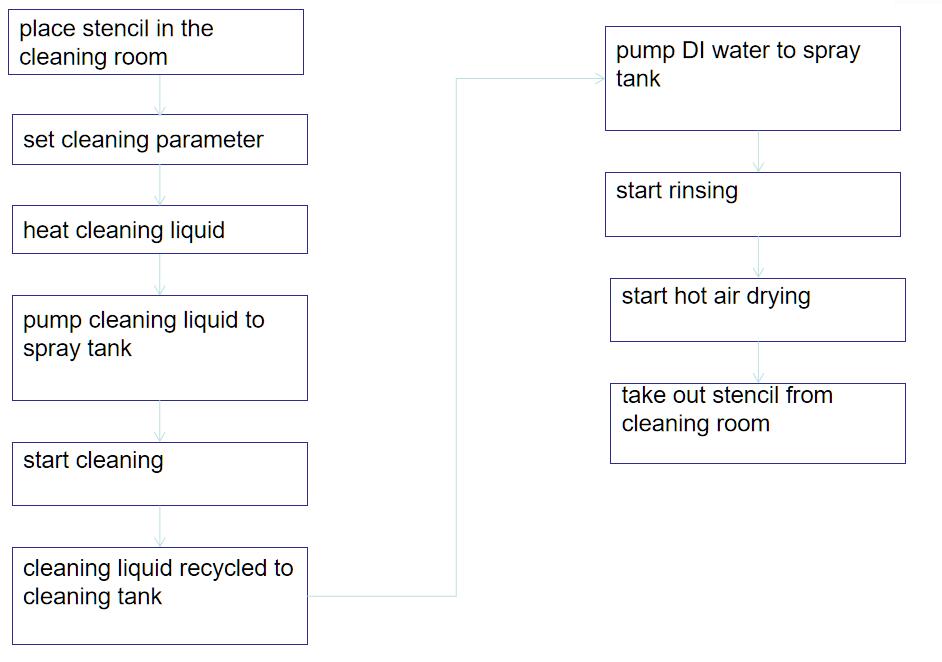

●   Double liquid tank with heating, hot air drying,  realize atutomatic cleaning, rinsing and drying process accroding to preset program. Cleaning process: High pressure liquid jet cleaning -chemical insolation- DI water rinsing - hot air drying.

●   The equippment use water based liquid with high pressure jet  for screen stencil ,PCBA, printing scraper cleaning. production.

●   The most scientific nozzle design:Increasing nozzles from left to right, Enhance the cleaning efficiency, Distribution nozzles up and down, Completely solve the blind clean area.

●    Large cleaning size:800mm(L) ×750mm(W) × 40mm(H), special product size can be customized.

●    Quick installed nozzle is easy for maintenance.

●   Cleaning pressure is adjsutable to meet different cleaning requirement.

●   Monitor resistivity of rinsing DI water in real time to ensure cleaning quality.

●    Mointor filter lifetime in real time  and remind operator to replace filter.

●   Automatically count cleaning time.

●    PLC + touchscreen control, full english interface, easy to operate.

●    Motor overload protection, overheating protection to prevent machine damaged.

Vertical Cleaner for Stencil & PCBA VSP-870 specification :

  Model

  VSP-870

  Max Product Size

  Max 800mm(L) ×750mm(W) × 40mm(H)

  Cleaning Tank Capacity

  Max 50L

  Cleaning method

  High pressure jet liquid  for cleaning

  Drying method

  hot air for drying

  Cleaning liquid filtering

  0.22 um filter

  Cleaning Time

  Reference cleaning time: solder paster 8-10 minutes, red glue 15 minutes, misprinted board 15 minutes.

  Dilution Liquid Heating Temperature

  RT+15~70℃

  Resistivity Meter Monitoring Range

  1mΩ~18mΩ.cm

  DI Water Supply

  15~50L/min

  DI Water Pressure

  0.2-0.4Mpa

  DI Water Entrance Pipe Connection

  1 inch

  Power Supply

  3Phase 380V 50/60HZ

   Net Weight

  Approx 500Kg

  Exhaust Size

  Φ124mm(W)×30mm(H)

  Machine Size

  1650mm(L) ×1160mm(W) ×1910mm(H)

  Exhaust flowrate requirement

  20M3/Min

  Cleaning liquid consumption

  20ml--300ml/batch, varies according to products.

  DI water consumption

  40L/rinsing for 3 times
