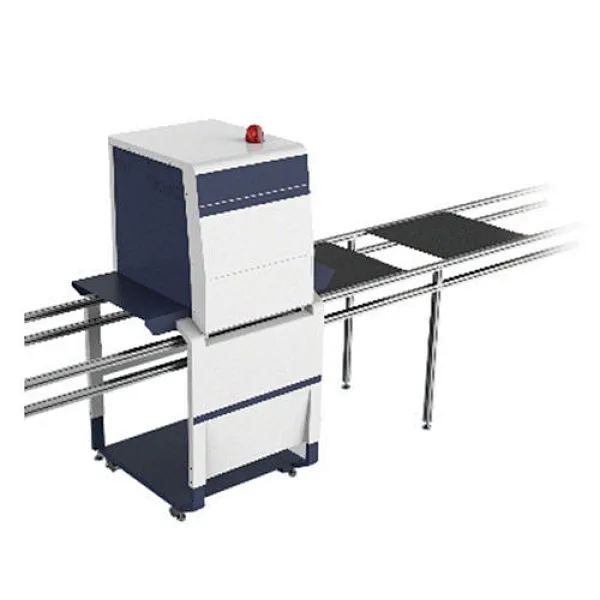

THT Component Automated Inspection System DA-1200
THT Component Automated Inspection System DA-1200

THT Component Automated Inspection System DA-1200

DA-1200 is a new kind of automtaic AOI equipment for THT component with high cost performance, which can be easily installed on the existing production line . It can automatically inspect defects of THT compoments instead of the traditional manual inspection. DA-1200 uses intelligent algorithm which can train the components with large sample images to comprehensively recognize the features of the components to improve the misjudge problems , and make programming very easy.

THT Component Automated Inspection System Dimension :

Dimension of the machine :

The equipment can be easily installed on the production line without any modification of production line.


THT Component Automated Inspection System Software :

Detection items : Wrong,Miss,Reversed,Skew,Redundant of THT components.

Rapid detection: Machine is installed above existing conveyor , automatically inspect PCBA without stopping PCBA , production efficiency :> 450pcs /hour


THT Component Automated Inspection System Algorithm:

Intelligent algorithm : Intelligent neural network algorithm which can train the components with large sample images to comprehensively recognize the features of the components to improve the misjudge problems , and make programming easy.

Priciple comparision with raditional algorithm

Priciple comparision with raditional algorithm.jpg

Programming

Simple programming: click the automatic search button, and the software will automatically identify the standard components such as capacitance, diode.

Support online debugging and update the program , support offline programming.

Support panel board programming.

Support panel board programming.

Multi boards can be inspected at same time.

Powerful data statistic software, easy to search and to be exported as a exel file.

Powerful data statistic software, easy to search and to be exported as a exel file.

THT Component Automated Inspection System Specifications

Model DA-1200 DA-2900
Optics Specification Testing method Deep neural networks based methods, contrast based methods, col based methods Deep neural networks based methods, contrast based methods, col based methods

Camera

12 million pixel, Color CCD 29 million pixel, Color CCD

Light source

Flat white LED Light

Flat white LED Light

Testing Specifacation

Items of testing

Wrong, Miss, Reversed, Skew, Redundant, 1/2W resistance and bigger than 1/2W resistance color ring Wrong, Miss, Reversed, Skew, Redundant,1/4 W, 1/8W resistance color ring, printed character detection.

Min component size

3*3mm

3*3mm

Detectable PCB size

Max:L400*W300mm Max:L450*W300mm
Computer specifications

Operation System

ubuntu 14.04 64bit

ubuntu 14.04 64bit

Industrial control computer

CPU : Intel i5
Memory : 8G
CPU : Intel i7
Memory : 16G

Displayer

22 inch

22 inch

Equipment Specification

Size

W 640*D(760~1210)*H(1315~1700)mm(Desktop type without conveyor)

Weight

100kg

100kg

Power supply

1P, AC220V 50HZ 1P , AC220V 50HZ

Power

230W

230W

Operating temperature

5~45℃ 5~45℃
