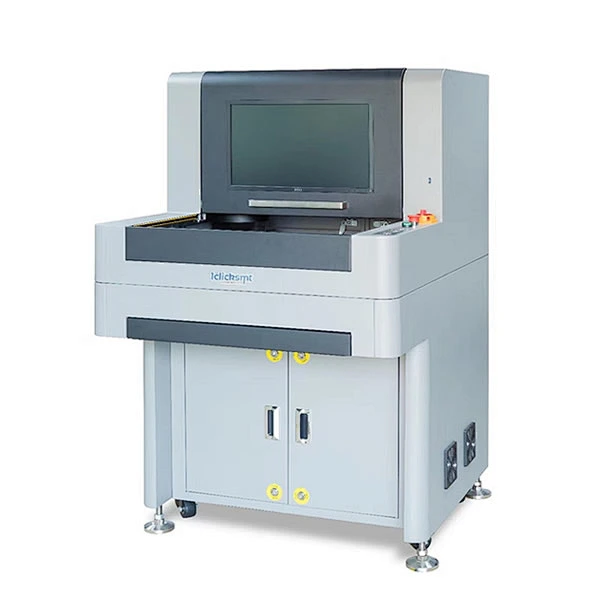

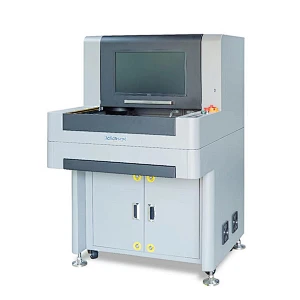

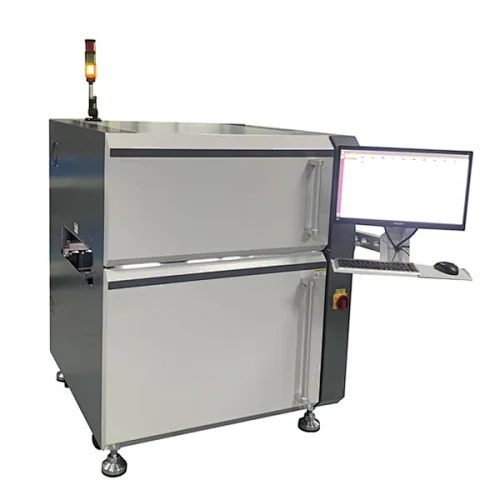

Offline  Automated Inspection System A-400

Offline Automated Inspection System A-400

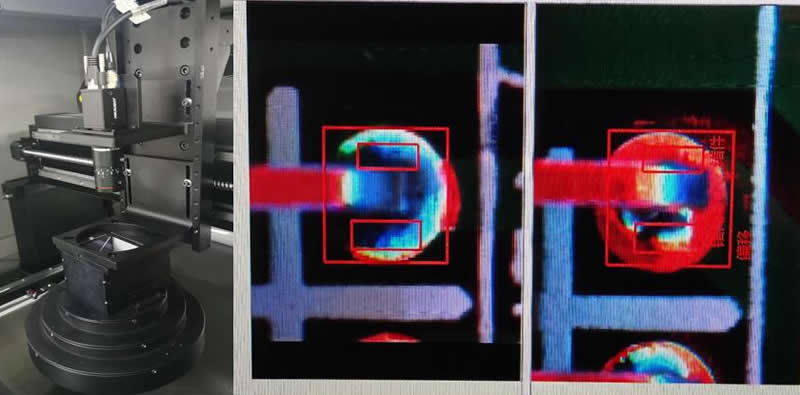

4-channel lighting source system

●   4-channel light source system is specially designed for PCBA inspection. RGB multi-angle ring light can reflect the 2D information of solder joint. Professional optic architecture design ensures the evenness of light distribution within each FOV, which reduces the false call rate significantly while ensure to catch the defects.

4-channel lighting source system

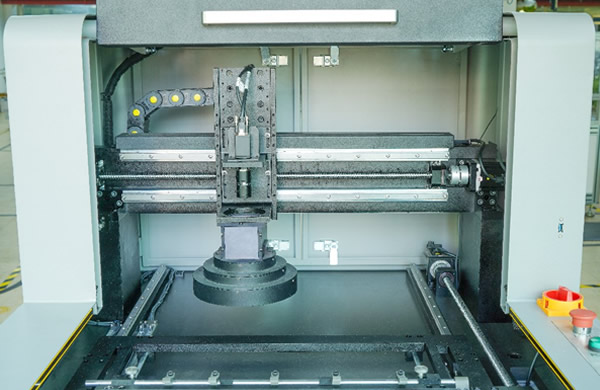

The X/Y axis of the machine is controlled by servo and grinding screw, and the positioning accuracy of the machine is high.

●   The X/Y axis of the machine is controlled by servo and grinding screw, and the positioning accuracy of the machine is high.

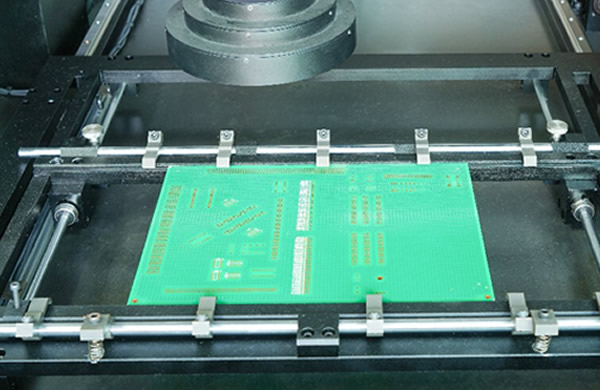

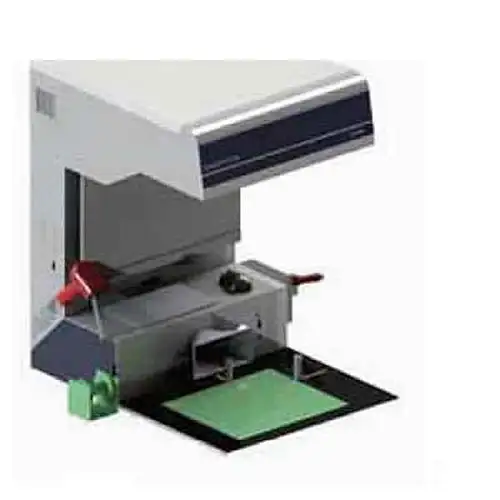

A fully automatic device for clamping PCB boards, it is very convenient to install and pick up PCB boards

●   A fully automatic device for clamping PCB boards, it is very convenient to install and pick up PCB boards

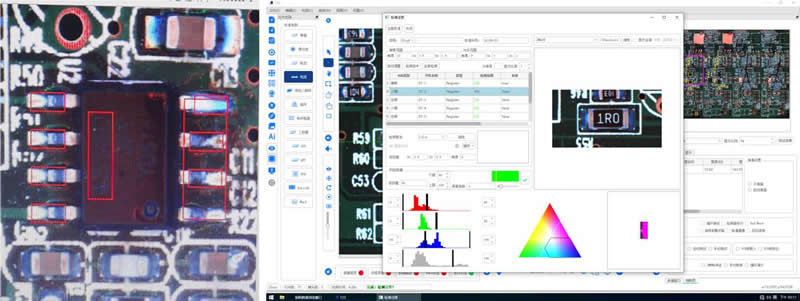

The software adopts the color algorithm, the software can automatically adjust the range of detection acquaintance according to the color of the solder joints, and the programming is simple.In the software, each detection position can be edited separately, and different upper and lower limit detection acquaintance values can be set to ensure the accuracy of detection.

The software adopts the color algorithm

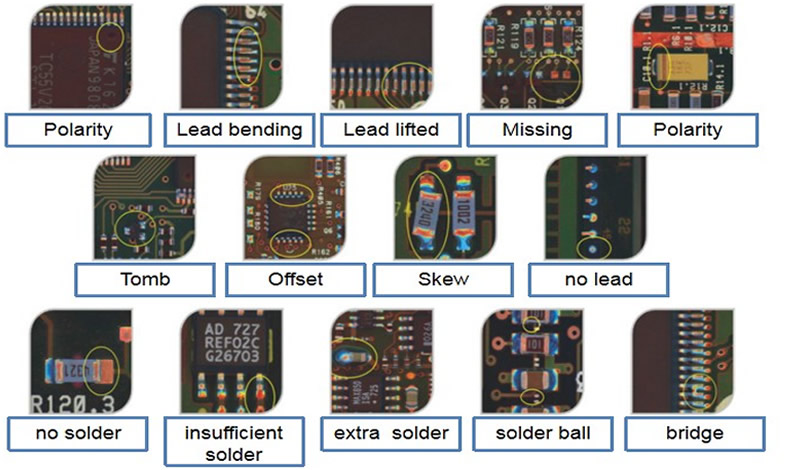

SMD Component Detection item:

Missing, Reversed, Shift, Damaged, Skew, Redundant, Foreign material.

SMD Component Detection item

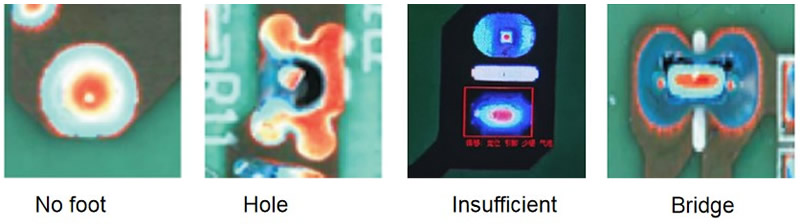

THT Solder Joint Detection item:excess, insufficient, no foot, bridge, hole etc.

THT Solder Joint Dtection item:excess, insufficient, no foot, bridge, hole etc.

Offline  Automated Inspection System A-400 Features

●    High stability  platform ensure machine running fast and stably.

●    X/Y servo motor with high precision ball screw driving system ensures running accuracy.

●   Equipped with  5M pixels CCD with RRGB 3 color light source to ensure inspection accuracy.

●   Detection SMT items: Wrong,Miss, Reversed, Skew, Redundant, shift, foreign matter.  Solder detect: excess, insufficient, no foot, bridge.

●   THT solder joint detection:excess , insufficient , no foot , bridge ,hole etc.

●   Easy programming: Automatically load CAD data to position component ,and search component library.

●   Equipped with Data statistics software, easy to search and  export detailed statistical data.

●   Equipped with barcode reading system.

Offline  Automated Inspection System A-400 Specification:

  Model

  A-400

  Image System

  Camera   Top 5M pixels Camera
  Resolution   Standard :15um
  Lighting   3 color ring shape LED(RGB)

  Motion System

  X/Y Movement     AC Servo motor ball screw and linear rail.

  Hardware

  PC configuration   I5, 4 core,  8G RAM, hard disk: 500G ROM
  Power Supply   1P,  220V,50/60Hz , 1KW
  Machine Size   W953*D1160*H1533mm
  Weight   486kg

  Software

  Operation System   Windows 10
  Programming     CAD file loading, manual teaching.

  PCB Size

  Size   50*50-450*360mm
  Thickness   ≤6.0mm
  Clearance   Top/Bottom:40/60mm
  Clamping Edge   >3.0mm

  Inspection Catagories

  SMT Component   Wrong, Miss, Reversed, Skew, Redundant, shift, foreign matter.  Solder detect: excess, insufficient, no foot, bridge
  THT solder joint   excess, insufficient, no foot, bridge,hole etc.
  Inspection Component   Chip:0201 ( 15um lens).

Offline  Automated Inspection System A-400 Includes:

Standard configuration:

1.A-400  Automated Optics Inspection Machine

Optional:

1. Offline programming software
