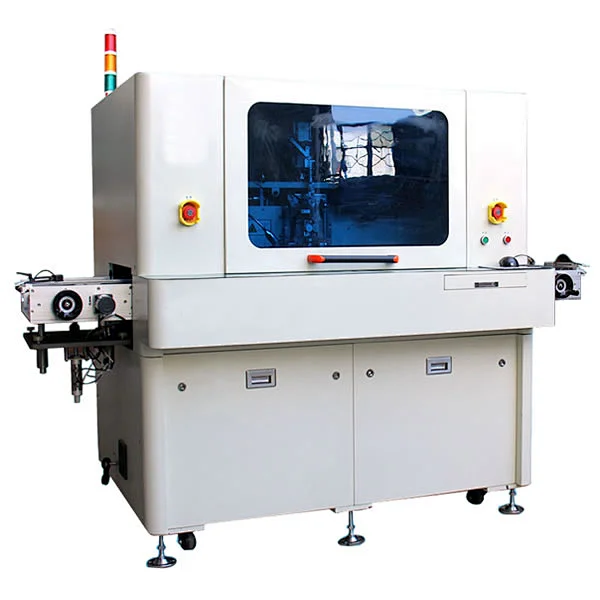

Intelligent Terminal Insertion System TI-880

Intelligent Terminal Insertion System TI-880

Intelligent Terminal Insertion System TI-880 Features:

●    X/Y platform adopts Panasonic servo and TBI ball screw and high quality guide rail.

●   the insertion height of the terminal is freely adjusted. Head can  rotate 360 degree for different angle insertion.

●    High-speed cam mechanis automatically feed and cut Terminal.

●    CCD visual  system is adopted for PCB positioning.

●    Equipped with inline conveyor to realize full automatic process.

●   Win7 operating system, English operating interface, easy to operate.

Intelligent Terminal Insertion System TI-880 Specification:

Machine Specification

Technical Parameter

PCB dimension

  PCB size

  maximum size   standard :L480 x W340mm

  PCB transport direction

  Left to right, conveying height : 900±20mm

Insertion parameter

  Insertion speed   7200 pcs /hour
  Insertion accuracy     ±0.05mm
  Insertion species     reel Terminals

Vision system

  Basler camera   For ficucial recogition

  Inserting head

  Inserting head quantity   1 inserting head with 360 degree rotation

  Inserting platform

  X/Y   Driven by servo motor


  Feeder type   customized terminal reel feeder


  PC control   Industrial PC with software based on Windows 7 OS , English interface


  Working power supply   1 Phase  AC220V, 50HZ
  Rated power   2KW
  Work pressure   0.6 Mpa
  Machine size   L2200*W1200*H1600mm
  Machine weight   About 1400 KG

Intelligent Terminal Insertion System TI-880 includes:

1 Inserting head with Terminal feeding system

X/Y insertion platform.

Top fiducial recognition vision system

Industrial PC with display, mouse and keyboard.

Conveying system with manual width adjustment.

Bottom PCB supporting device *1 pcs

1year warranty.
