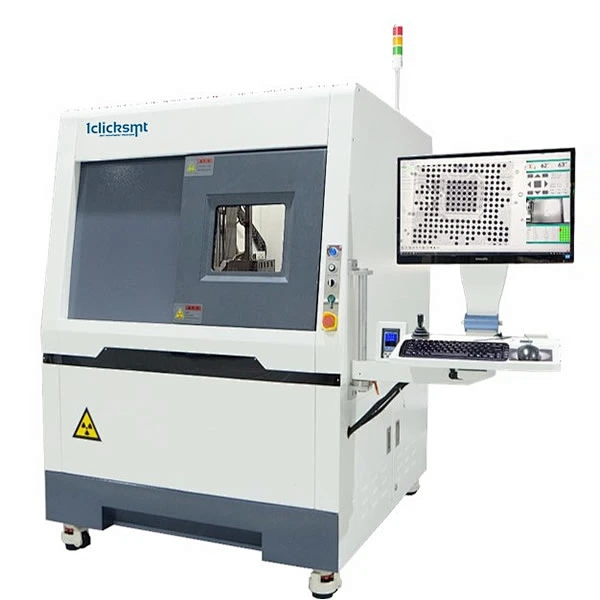

RL-8200M X-Ray Detector

RL-8200M X-Ray Detector

The system mainly consits of micro focal X-ray source, image imaging unit,computer image processing system, mechanical system, electrical control system, safety protection system, warning system , including modern non-destructive tessolderg, computer software technology, image acquisition and processing technology, mechanical transmission technology as a whole, covering the optical, mechanical, electrical and digital image processing four categories of technology fields.



Quick login

Quick login

●   Quickly login software with fingerprint, no need to input  password, improve work efficiency.

●   Improve safety function.

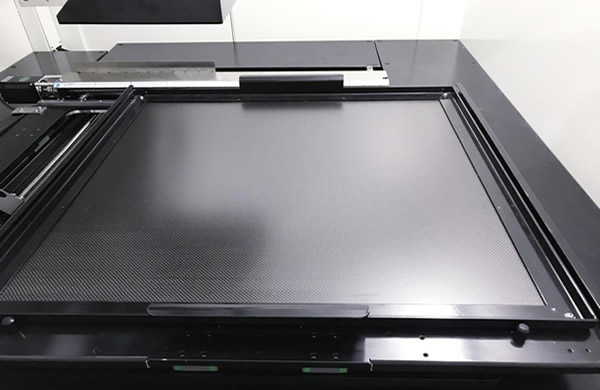

Big loading platform

Big loading platform

●   610mm*610mm loading area.

●   550mm*550mm detecting area.

●   Mutiple product can be placed to improve efficiency.

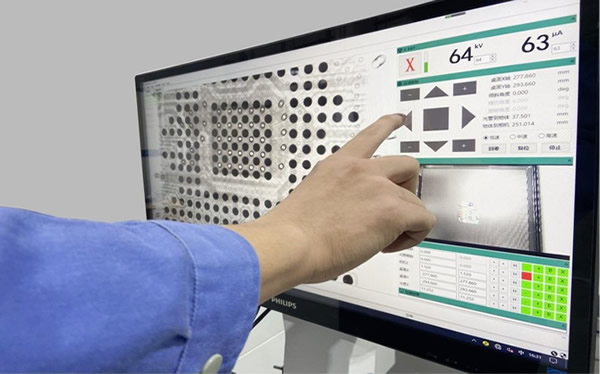

24HD touch screen control panel

24”HD touch screen control panel

●   24 inch HD touch screen display, can be directly operated by hand on the display, makes operation convenient and fast.

●   At the same time can cooperate with mouse, keyboard, joystick.

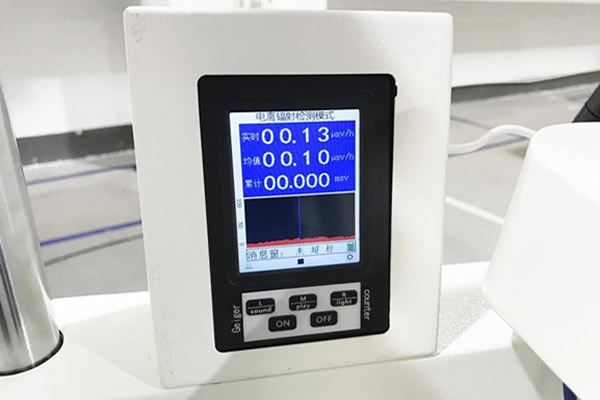

Safety radiation real-time monitoring function

Safety radiation real-time monitoring function

●   With real-time radiation detector, it can display real-time, average and cumulative radiation dose .

●   Responsible for operator health while monitoring radiation dose.

Tilt function of the imaging system

Tilt function of the imaging system

●   With the x-ray source tilt, 60 degrees of 2.5D detection is realized.

●   Imaging tilt, no product tilt, to ensure that the product in the process of inspection will not be offset.

Electrical door

Electrical door

●   In order to ensure the safety of radiation protection, even the weight of the front door is considerable. The front door adopts electric switch mode to reduce the work burden of the operator for a long time and avoid the premature damage of the door caused by the operation error.

Common defect-Electronic semiconductor

Common defect-Electronic semiconductor

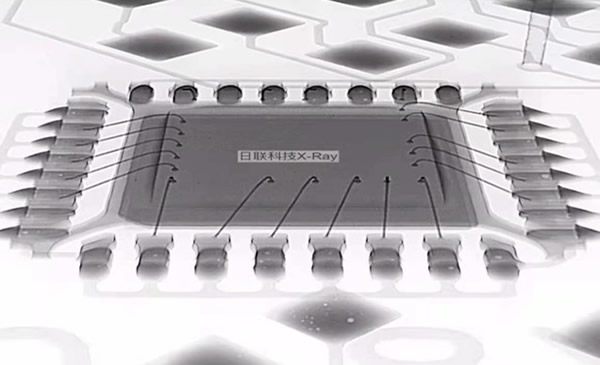

IC golden wire bubble detecting

IC golden wire、bubble detecting

Solder height

Solder height

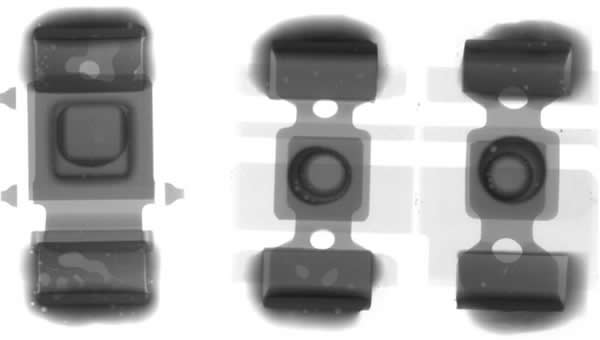

Soldering point bubble measuring

Soldering point bubble measuring

BGA bubble measuring

BGA bubble measuring

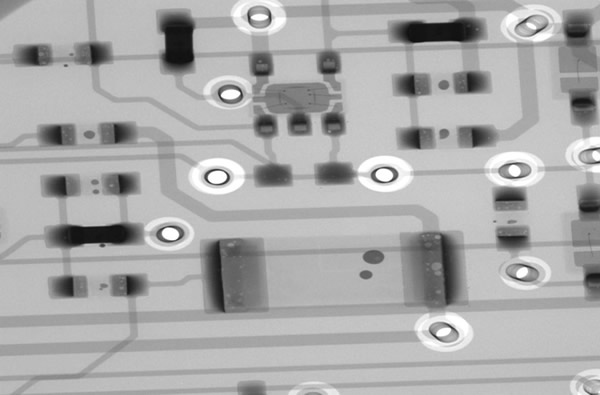

PCBA detecting

PCBA detecting

5G Base station circuit board detecting

5G Base station circuit board detecting

LED bubble detecting

LED bubble detecting

Chip bubble detecting.jpg

Chip bubble detecting

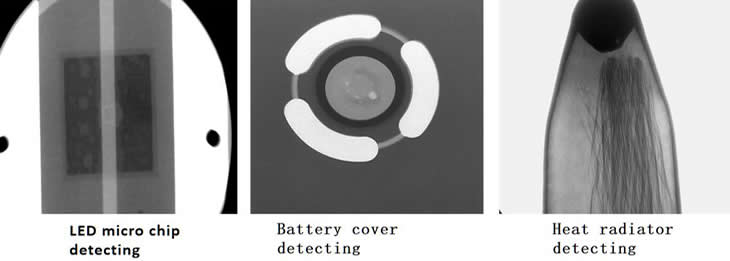

LED micro chip detecting Battery cover detecting Heat radiator detecting.jpg

Mobile phone fingerprint chip detecting.jpg

DIP soldering height detecting

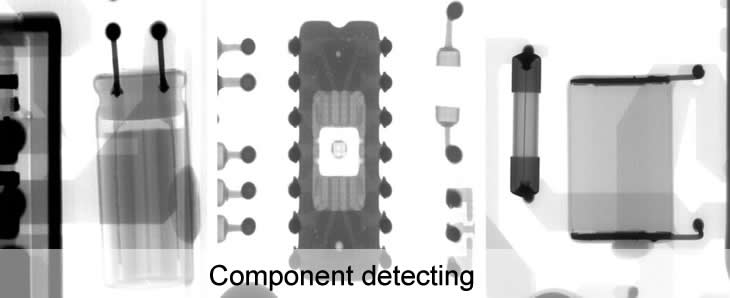

Component detecting

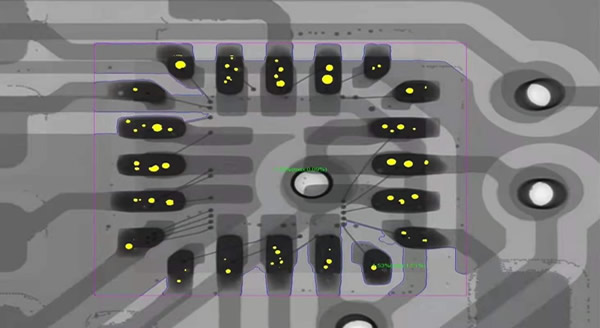

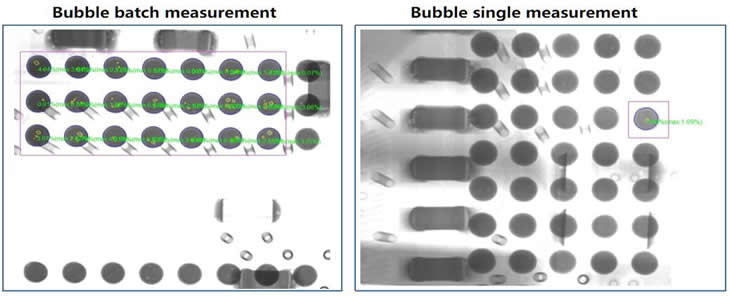

Bubble batch measurement

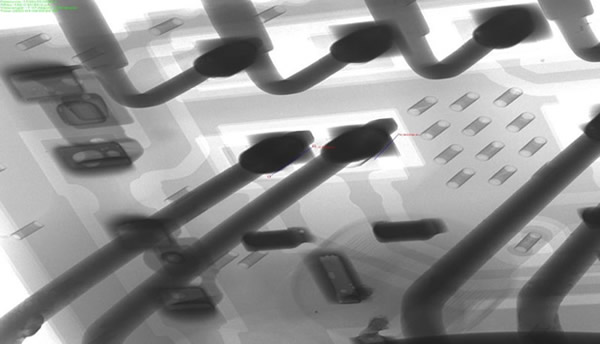

Tilt test--Tilt effect



RL-8200M X-Ray Detector  Software

Advanced features

Advanced features:

●   Control mode: keyboard and mouse ,joystick to complete the whole detection.

●   Standard graphics program processing function can be established, any operator with simple training can get the best X-ray image, with the center locking function of the measured point: when rotasolderg the detector, it can ensure that the observation point remains centered on the screen.

●   With navigation function and CNC edisolderg function.

●   The image has black and white automatic contrast function, edge sharpening and strengthening function.

●   Bubble measurement function, can accurately measure the solder ball, chip bottom filling and other internal bubble proportion.

●   False welding analysis through hole plug solder penetration measurement and other functions.

●   BGA detection function, can automatically detect BGA short circuit, offset, solder bubble ratio, solder ball deformation, insufficient solder ball, missing, false welding and other defects.

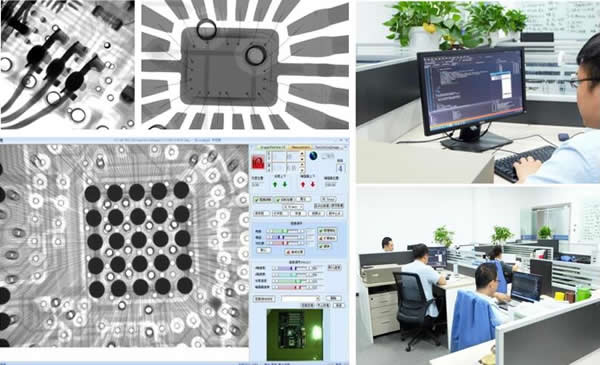

Core technology :Imaging software

Core technology :Imaging software

●   X-RAYReal-time online image acquisition.

●   Image enhancing technology.

●   Image algorithm simulation.

●   High speed defect locating and recognizing.

RL-8200M X-Ray Detector Specification

Hardware

  X-Ray source

  Type   Enclosed
  Voltage   90kV(8W,160uA)
  Imaging unit   Type   Flat panel detector
  Tilt angle     Single side 60°

  Computer

  Industrial PC   Industrial PC
  Display   24”

  Loading platform

  Loading area   610mm×610mm
  Detecsolderg area (max)   550mm×550mm
  Sample weight (max)   8kg
  Moving control   Joystick, mouse and keyboard

  Software

  Software   Self-developed image processing system
  Auto setsolderg   Record coordinate and parameter of Character
  Auto navigasolderg    Quickly move to detecsolderg point
  Measuring   Capable to measure component bubble
  Position edisolderg   Multi point detecsolderg
  Whole machine   Weight   1400kg
  Power supply   220V 50Hz
  Power   2kW
  Size     1280(L)×1500(W)×1700(H)mm
  Radiation leakage dose  <1μSv/h
  Electrical door open
  Fingerprint , password enter
