H450 with automatic recognition function of machine vision, using high-precision Servo drive system to achieve fast and accuracy alignment .The precision can reach +/- 0.01mm.It build in independent cleaning system, the cycle time less than7s,ensure the high printing quality of solder paste and ultimate product efficiency. It also can print 0.3mm ultra fine pitch pad perfectly .This machine controlled by computer ,with Windows XP user interface and abundant software functions, it can set printing height, squeegee pressure, printing stroke, speed, and stencil automatic cleaning cycle etc. by software .It designed to keep the stability of printing quality, and greatly facilitate to users.



Arch bridge type suspending direct-connected scraper programmable printing head.

Arch bridge type suspending direct-connected scraper programmable printing head.

Double sliders ensures the printing head moving accuracy and stability when scraper is running back and forth.

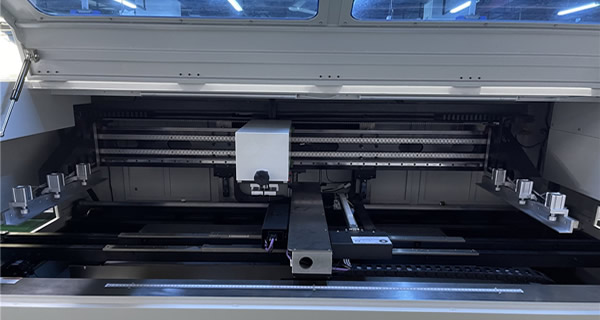

The cleaning unit is separated from CCD camera, which can minimize the camera & stop axis load, improve the PCB positioning precision and speed.  Stencil cleaning system is automatic and effective. Three models  of Dry cleaning. Wet cleaning and Vacuum cleaning can be selected to use individually and multiply.

The cleaning unit is separated from CCD camera, which can minimize the camera & stop axis load, improve the PCB positioning precision and speed.

Stencil cleaning system is automatic and effective. Three models  of Dry cleaning. Wet cleaning and Vacuum cleaning can be selected to use individually and multiply.

Uniform ring light, high brightness coaxial light and advanced upper/lower visionsystem Full range of light compensation, Automatic and accurate recognized of alltype MARK points.

Uniform ring light, high brightness coaxial light and advanced upper/lower visionsystem Full range of light compensation, Automatic and accurate recognized of alltype MARK points. Applicable for tin plating, copper plating, gold plating, tin spraying. FPC and other types PCB with different colors, able to ensure high accuracy.

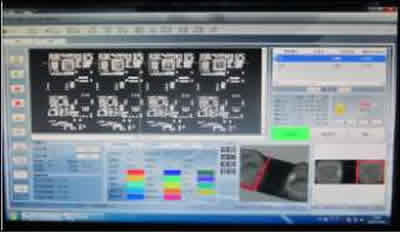

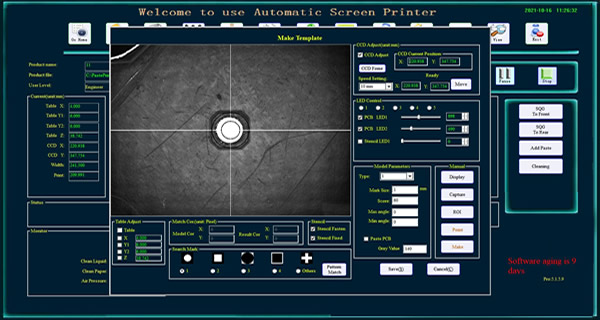

Using Windows 10 operation interface, and easy to learn for user.

Using Windows 10 operation interface, and easy to learn for user. Programming is designed with teaching and navigation function, guidance is available on every step.

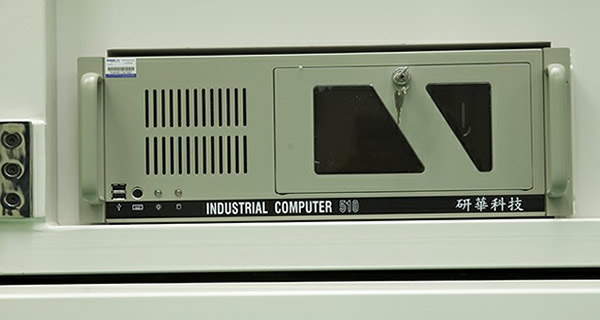

High quality electrical parts ensure machine long service life.

High quality electrical parts ensure machine long service life.



Fully-Automatic Screen Printer

Stencil Cleaning System

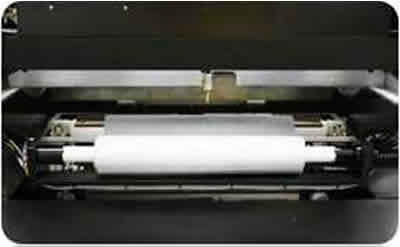

3 types of under stencil cleaning: dry, wet and vacuum. These 3 modes can be individually selected or combined for using. System allows manual cleaning within its operation menu which shortens cleaning time and improves production efficiency.

Stencil Cleaning System

BEFORE CLEANING

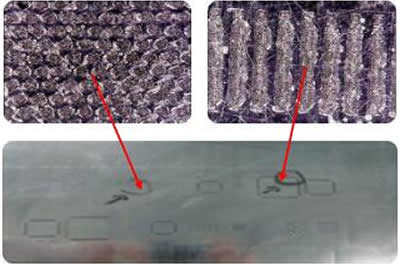

Blocked the opening of stencil by solder paste and choose 2 areas (IC and BGA )to check cleaning result.

BEFORE CLEANING

CLEANING RESULT

Conclusion: blocked holes and IC can be cleaned completely. Customer could set up cleaning module (wet, dry and vacuum modes) depends on difficulty of stencil to improve productivity and ensure cleaning quality.

CLEANING RESULT

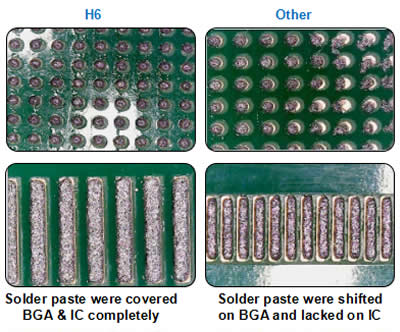

Printing Result Comparation

500X Microscope Inspection

Printing Result Comparation

Conclusion: Printing result is perfect, no misalignment, shift, solder bridge, lack solder, etc.

Printing Result Comparation

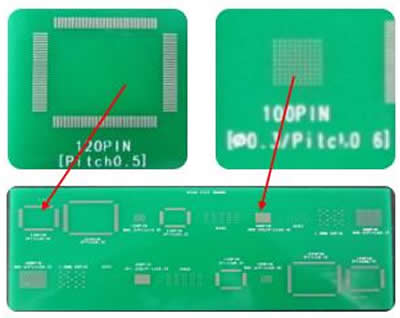

Use same sample to test H4E and other brand to check IC and BGA.

Printing Result Comparation (SPI)

SPI inspection

Printing Result Comparation (SPI)

SPI inspection result:

Production QTY:     192PCS
Pass QTY:     189PCS
Defective QTY:     3PCS
Pass rate:      98.438%
Defective rate:       1.562%

Printing Result Comparation (SPI)

Conclusion: This PCB has many difficult IC and small pads, after inspection, result is good, machine can ensure printing quality and accuracy in production line.



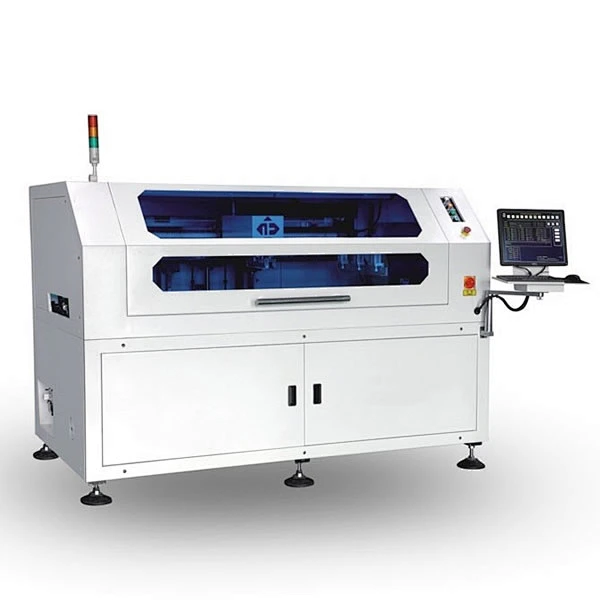

Fully Automatic Screen Printer H12 & H15 Features:

● Arch bridge type suspending direct-connected scraper, programmable printing head.

● Double sliders ensures the printing head moving accuracy and stability when scraper is running back and forth.

● Programmable motor controls conveying speed and conveys PCB in the precise position.

● The cleaning unit is separated from CCD camera, which can minimize the load of motor, improve the positioning precision and speed.

● Automatic conveyor width adjustment.

● Auto stencil cleaning(Dry/Wet/Vacuum).

● Automatic 2D paste inspection.



Fully Automatic Screen Printer H12 & H15 Specification:

  Model

  H12

  H15

  Screen Frames

  Min Size   737×300mm   1100×300mm
  Max Size   1500×750mm   1800×750mm
  Thickness   25~40mm   25~40mm

  PCB Min Size

  80×50mm

  80×50mm

  PCB Max Size

  Standard :1200×350mm   Standard :1500×450mm

  PCB Thickness

  0.8~6mm

  0.8~6mm

  PCB Warpage

 <1%  <1%

  Conveying Height

  900±20mm

  900±20mm

  Conveying Direction

  Left-Right; Right-Left; Left-Left;  Right-Right   Left-Right; Right-Left; Left-Left; Right-Right

  Board Location

  Support System   Magnetic Pin/Up-down table adjusted/support block   Magnetic Pin/Up-down table adjusted/support block
  Clamping System   Side clamping, Automation retractable Z pressure   Side clamping, Automation retractable Z pressure

  Printer Head

  Two independent motorised printhead   Two independent motorised printhead

  Squeegee Speed

  6~200mm/sec   6~200mm/sec

  Squeegee Pressure

  0~15kg

  0~15kg

  Squeegee Angel

  60°   60°

  Squeegee Type

  Stainless steel(standard)

  Stainless steel(standard)

  Stencil Separation Speed

  0.1~20mm/sec (Programmable)   0.1~20mm/sec (Programmable)

  Cleaning System

  Dry 、Wet 、 Vacuum (Programmable)   Dry 、Wet 、 Vacuum (Programmable)

  Table Adjustment Ranges

  X: ±10mm; Y: ±10mm; θ: ±2°   X: ±10mm; Y: ±10mm; θ: ±2°

  Solder Paste Inspection

  2D Inspection(Standard)

  2D Inspection(Standard)

  Repeate Position Accuracy

  ±0.03mm   ±0.03mm

  Printing Accuracy

  ±0.03mm

  ±0.03mm

  Cycle Time

 <12s(Exclude Printing & Cleaning)  <12s(Exclude Printing & Cleaning)

  Product Changeover

 <5Min

 <5Min

  Air Required

  4.5~6kg/cm2   4.5~6kg/cm2

  Power Input

  AC:220 ±10%, 50/60HZ, 3KW

  AC:220 ±10%, 50/60HZ, 3KW

  Control Method

  PC Control   PC Control

  Machine Dimensions

  2210(L)×1213(W)×1510(H)mm

  2510(L)×1353(W)×1510(H)mm

  Machine Weight

  Approx:1500kg   Approx:1800kg
