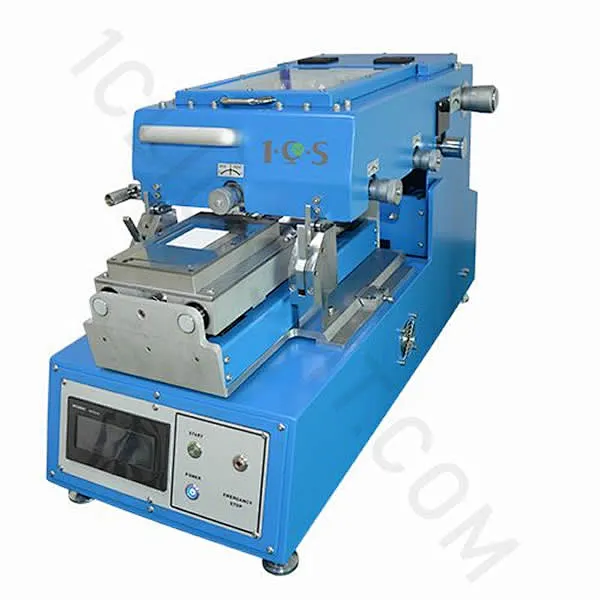

Thick Film Screen Printer Series

Application of WZ-1202 and WZ-1206 : thick film circuit, pressure sensor (piezoresistive type, capacitance type), glass glazed potentiometer, dielectric antenna, ceramic metallization, microwave oven magnetron RFID, automobile oil level sensor, air quality sensor, integrated LED

Application of WZ-1206C : Auto, military, aerospace, medical applications of chip resistor and capacitor, printed circuit boards, chip components, solar cells, circuit/antennas and other electronic components, can realize buried hole printing, hole printing, printing circuit printing and resistance

Max Print Size:

WZ-1202RS/75x70 mm

WZ-1206RS/160x160mm

WZ-1206CRS/160x160mm

Machine dimension:

WZ-1202RS/790(L)*370(W)*458(H)mm

WZ-1206RS/1030(L)*508(W)*522(H)mm

WZ-1206CRS/1030(L)*508(W)*522(H)mm

Thick Film Screen Printer Series Details

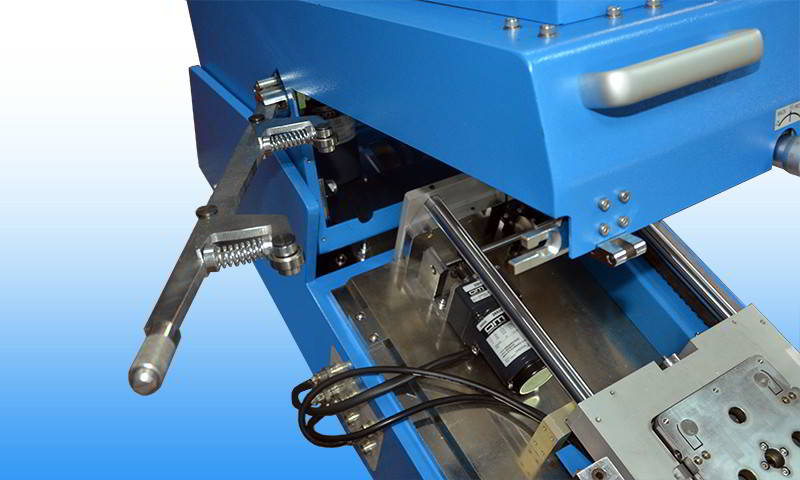

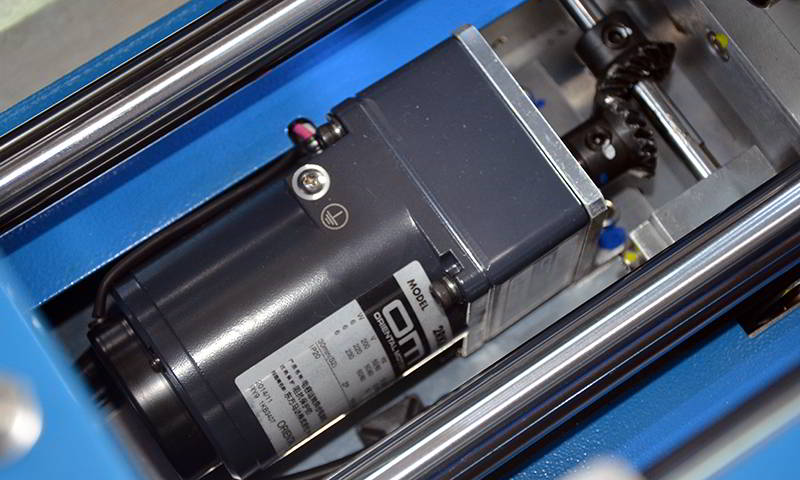

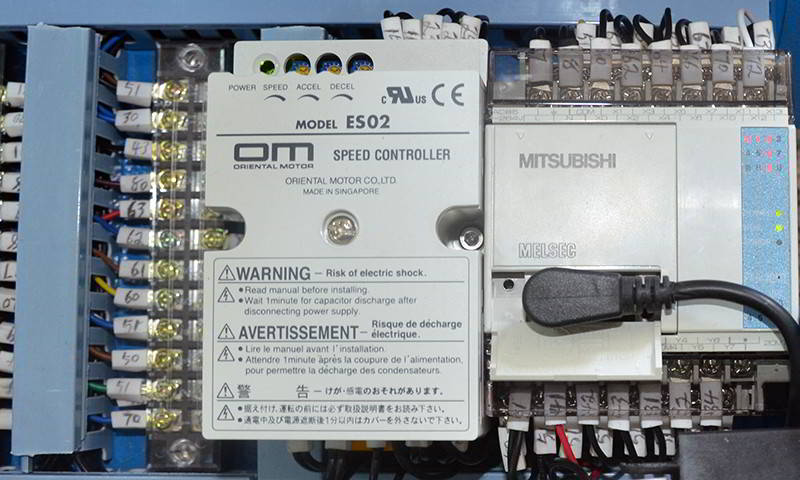

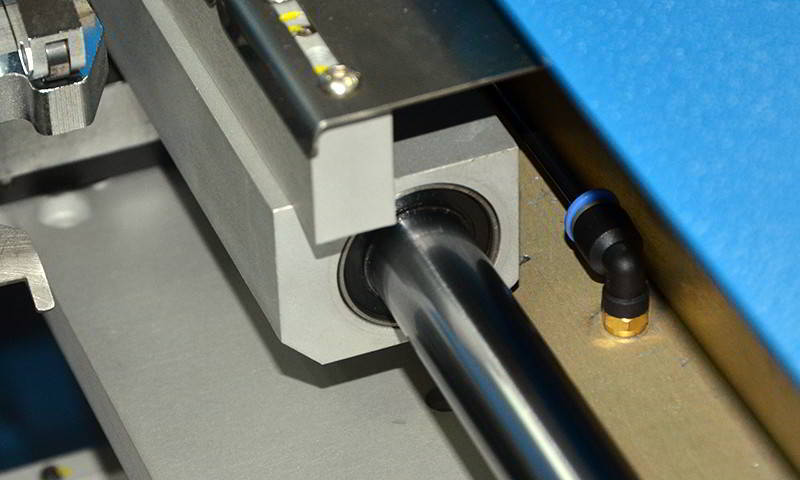

*Ultra-high resolution servo motor and ball screw to* *ensure constant, fast printing speed*	*Mitsubishi PLC control, man-machine* *dialogue* *interface, digital set*

Machine, electric, hydraulic trinity localization way, ensure micron grade positioning

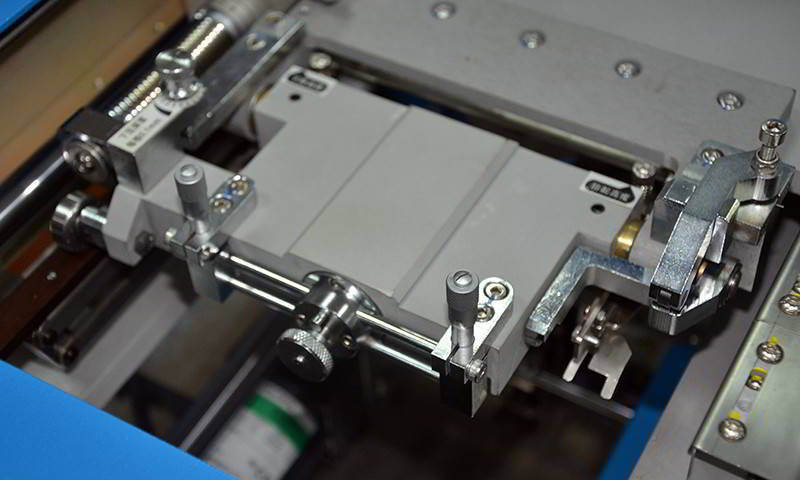

Main pressure adjustment, auxiliary clearance compensation, flexible float scraper, make sure that the pressure balance transfer

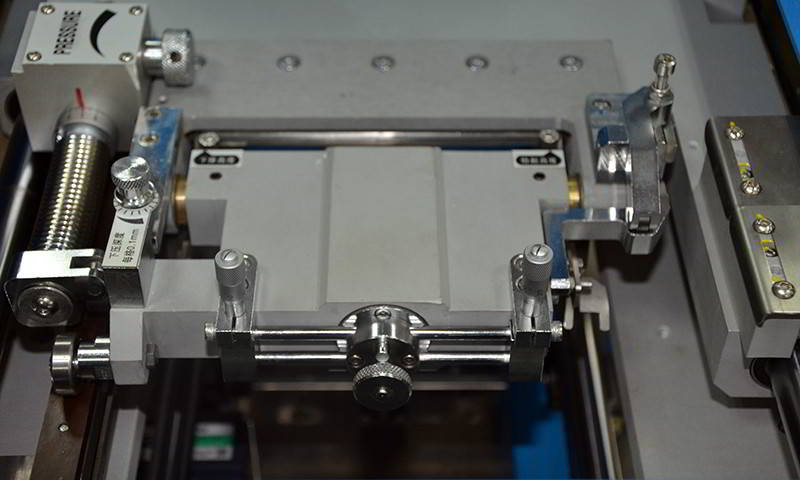

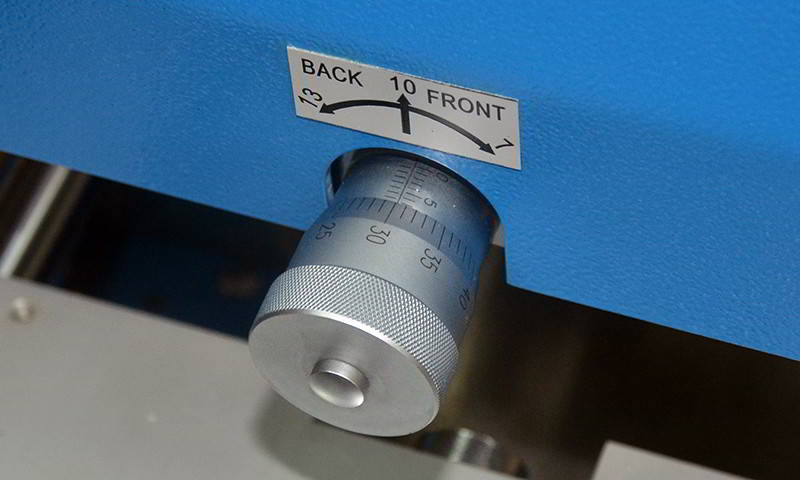

*Four degrees of freedom screen frame adjustment and quick change of the net frame humanized design*

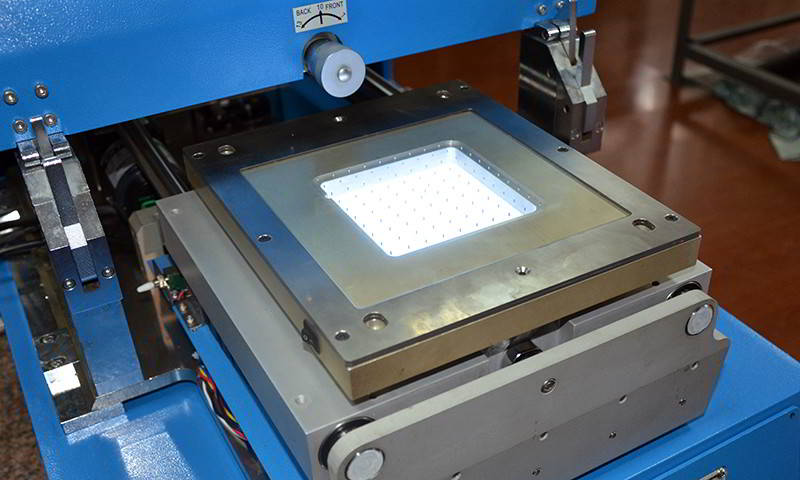

*Unique design of via backlight printing platform, through the squeegee printing and vacuum to* *ensure that the paste can completely cover the via hole*

Thick Film Screen Printer Series Applications

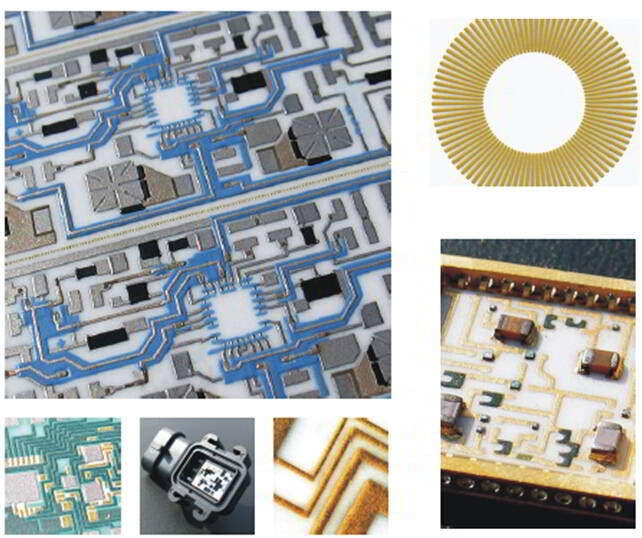

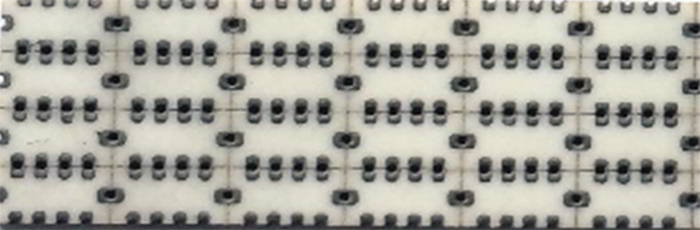

*Integrated Circuit*

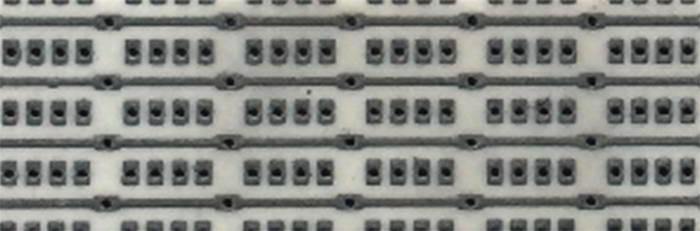

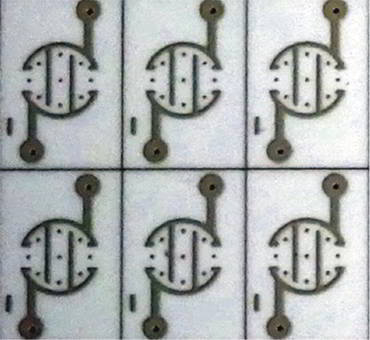

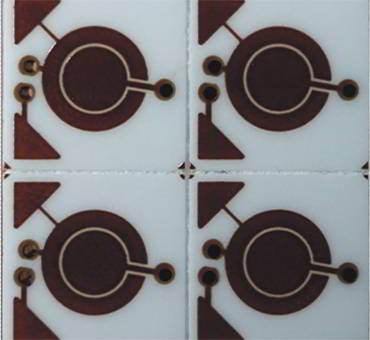

*LED PTH Hole Printing*	*Capacitive Pressure Transducer Printing*

*Top Side of Printing PTH Hole*

*Bottom Side of Printing PTH Hole*

Thick Film Screen Printer Series - Specifications
Model	WZ-1202RS	WZ-1206RS	WZ-1206CRS
Frame Size	252mm-185mm	356mm-305mm
Maximum PCB Size (X /Y)	75mmx 70mm	160mmx 160mm
Print Accuracy	0.003mm
Silk Screen Adjustable Scope	X +/-0.5mm Y+/-0.5mm Z 0-3mm
Print length	110mm	208mm
Print Speed	7-350mm/s (adjusted by touch screen)
Flood Coat Speed	7-350mm/s (adjusted by touch screen)
Print Pressure	0-10kgf
Snap off Speed	0.07-10mm/s
Snap off Route	0-2mm
Air Knife	Yes
Print Vacuum System	No	Yes
Squeegee Length	50mm/83mm/110mm/137mm/164mm
Print Table Up & Down Route	15mm
Print Mode	Flood-Print Print-Flood
Power Supply	1PH 220V 50HZ
Vacuum	Oilless Vacuum Pump(outside)	Miniature 40-watt oil-free vacuum pump(inside)
Dimension	790(L)370(W)458(H)mm	1030(L)508(W)522(H)mm
Weight	95kg	165kg

Free accessories as below :
NO.	ITEM NAME	DESCRIPTION	QUANTITY	UNIT
1	Vacuum Pump	TPS-20	1	pcs
2	Screen Frame	25218510.5mm	2	pcs
3	Ink Reset squeegee	96mm	2	pcs
4	Plastic squeegee (83mm) & Squeegee Press Piece		1	pcs
5	Squeegee Sectional Fixture		1	pcs
6	Screen Frame Fixation		1	set
7	Power Line		1	pcs
8	foot switch		7	set
9	Allen wrench		1	pcs
10	Micrometer wrench		1	pcs
11	Stainless steel screw		20	pcs
12	Squeegee		5	set
13	Micrormeter		1	set
14	relay(Omron 24V)	Omron 24V	1	set
15	relay(Omron 220V)	Omron 220V	1	set
16	Fuses		4	set
