Pneumatic Stencil Cleaner HC-6S
Pneumatic Stencil Cleaner HC-6S

Pneumatic Stencil Cleaner HC-6S

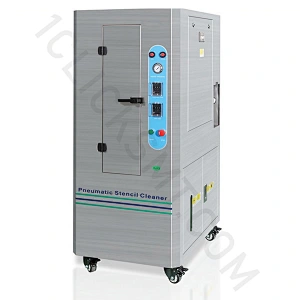

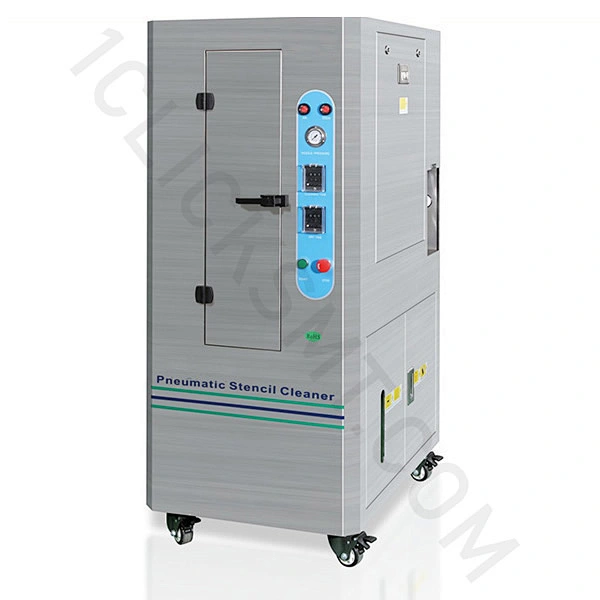

HC-6S peumatic stencil cleaner is suited for solder past , red glue on stencil cleaning ,it adopt full pneumatic control without power supply to avoid fire risk . 3 stage precision filtering system greatly prolong cleaning liquid service life . High quality parts ensures long service life of machine.

Waste water recycling and reuse by filter system

Waste water recycling and reuse by filter system

Inlet air pressure regulator, which filter the oil and water in the compressed air.

Inlet air pressure regulator, which filter the oil and water in the compressed air.

Stainless steel liquid tank with level display , which can  contain various types of  acid and alkali resistant cleaning liquid.

Stainless steel liquid tank with level display , which can contain various types of acid and alkali resistant cleaning liquid.

Germany made Hengstler pneumatic timer .

Germany made Hengstler pneumatic timer .

USA made Ingersoll RandIp neumatic diaphragm pump.

USA made Ingersoll RandIp neumatic diaphragm pump.

10 μm filtering screen(filter impurities and labels).

10 μm filtering screen(filter impurities and labels).

5 μm  filter (filtering tiny particles and solder paste).

5 μm filter (filtering tiny particles and solder paste).

1 μm (filter micro particles and rosin).

Adjustable holder design fixing the stencil firmly.

Adjustable holder design fixing the stencil firmly. suitable for different sizes of stencil cleaning. Maximum size 750X750X40 (mm).

Removable chute: easy to maintain, clean and maintain.

S-type exhaust pipe design effectively reduce vaporized liquid.

S-type exhaust pipe design effectively reduce vaporized liquid.

HC-6S Pneumatic Stencil Cleaner Features:

● HC-6S peumatic stencil cleaner is suited for solder past , red glue on stencil cleaning, and squeegee cleaning etc.

● Full pneumatic control without power supply to avoid fire risk.

● High precision 3 class filtering system ensure cleaning quality.

● Cleaning plus air drying process to ensure cleanliness.

● The liquid pressure can be displayed by the hydraulic gauge on the operating panel.

● The machine is made of 304 stainless steel, which is durable, acid resistant and alkaline resistant.

● One-button operation, easy operation to complete cleaning, air drying process.

● Equipped with high quality parts such as USA made Ingersoll RandIp neumatic diaphragm pump,Germany made Hengstler pneumatic timer,which ensure long service life of machine.

HC-6S Pneumatic Stencil Cleaner specification :

Model

HC-6S

Stencil size

Max L750 × W750 × H40(mm)

Cleaning fluid capacity

40L(Max)

Optimum liquid usage

35L

Cleaning method

360 ° rotating cleaning fluid injection and high pressure air injection (cleaning and drying)

Cleaning time

2-5 minutes (conventional process)

Drying time

2-5 minutes (conventional process)

External air pressure

0.45Mpa ~ 0.7Mpa

Filtering system

Three-stage filtering

Level 1 filter

10 μm filtering screen(filter impurities and labels)

Level 2 filter

5 μm (filtering tiny particles and solder paste)

Level 3 filter

1 μm (filter micro particles and rosin)

Exhaust port size

Φ120 × H40(mm)

Air consumption

400-600L/Min

Machine net weight

200kg

Machine size(mm)

L945 × W650 × H1645(mm)

Application

HC-6S Pneumatic Stencil Cleaner configuration :

HC-6S Pneumatic Stencil Cleaner includes :

● HC-6S Pneumatic Stencil Cleaner*1 set

● 1μm filter core *1pcs

● 5μm filter core *1pcs

Optional configuration:

● 5μm filter (consumable parts , service life : around 1 months)

● 1μm filter (consumable parts, service life : around 1 months)

● 10μm filtering screen (consumable parts ,service life : around 3 months)

● Vacuum filter (consumable parts ,service life : around 3 months)
