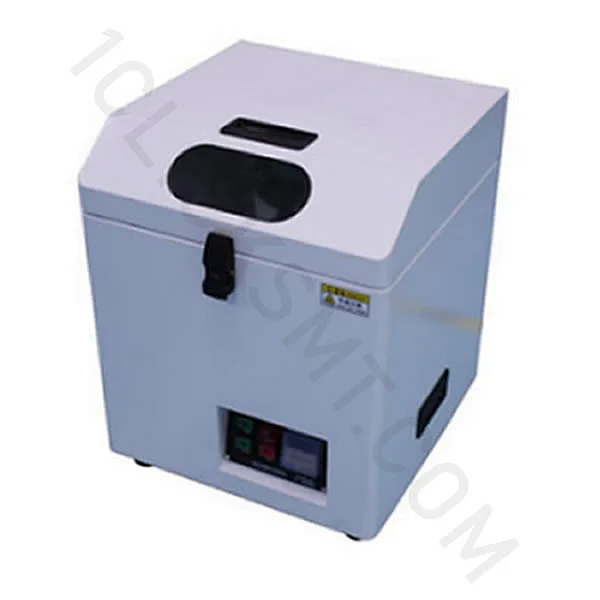

Solder Paste Mixer SPM-900

Solder Paste Mixer SPM-900

The ESP-900 solder paste mixer provide powerful solder paste mixing capacity.Anyone can prepare the well mixed solder paste to simplify the printing process in STM line.

ESP-900 Solder Paste Mixer Details

● Easy to Operation

The operation of ESP-900 solder paste mixer is very simple.Loading the original solder paste container into universal holder then press "Start" button. The ESP-900 will mix the solder paste, after your setting time the machine will stop automatically. The well mixed solder paste is ready for printing .Setting the timer by press the increasing and decreasing button. The LED display the setting time.

● Well Mixing Capacity

The SPM-900 solder paste mixer has two rotation parts : 900rpm/min of arm rotation and 450 rpm/min of container ,it can provide powerful solder paste mixing capacity.Anyone can prepare the well mixed solder paste to simplify the printing process in STM line.

● Flexibility

The ESP-900 solder paste mixer equipped with universal solder paste container holders. Which can hold most of commercial solder paste container. The holders are very easy to load and unload the solder paste container.

● Precise Operation Time Control

The ESP-900 equipped with electronic time and LED display. It is very easy to operate and the setting range from 6 seconds to 9.9 minutes by 6seconds index.

● Low Maintenance

The ESP-900 equipped with digital timer .It is very easy to operate and set time range.

Image of Before-After Mixing


ESP-900 - Specifications



Arm Rotation Speed

Approx 900 RPM / MIN

Container Rotation Speed

Approx 450 RPM / MIN

Solder Container

500g two container can be loaded

Maximum diameter of container(mm) 62mm Max or specify
Maximum height of container(mm) 70mm Max or specify

Power supply

AC 220V 50HZ 1PH

Exterior structure

Metal frame with paint processing

Power Consumption

300W max

External Dimension L*W*H(mm)
