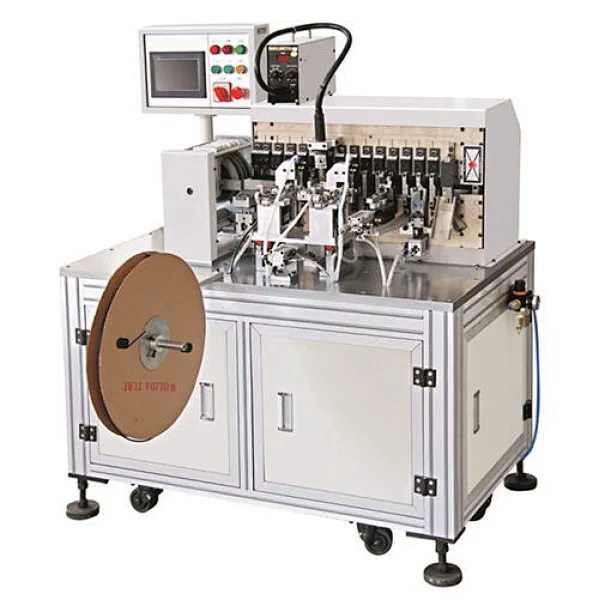

Automatic tube insertion and forming machine LF-617
Automatic tube insertion and forming machine LF-617

Automatic tube insertion and forming machine LF-617

LF-617 is an customized automatic tube inserting ,lead cutting and forming machine for taped or loose packed axial components.It is suited to automatically insert Teflon tube and heat shrinkable into component body or lead,then cut the lead and form it .

Full Automatic working station, completely manual labor.

● Full Automatic working station, completely manual labor.

Fiber sensor for component and tube exhaust detect.

● Fiber sensor for component and tube exhaust detect.

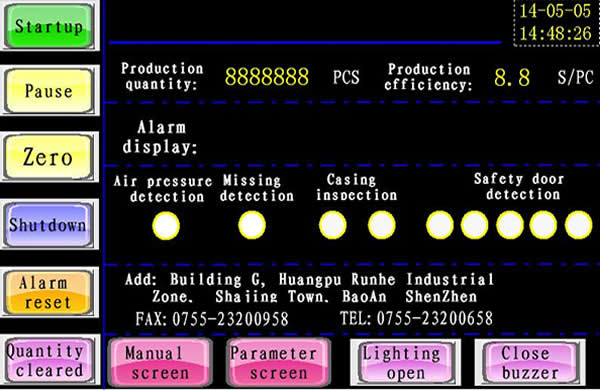

Full English interface, easy to operate.

● Full English interface, easy to operate. realize full automatic production just by press start up button.

Samples made by Automatic tube insertion and forming machine  LF-617

● Samples made by Automatic tube insertion and forming machine LF-617

Automatic tube insertion and forming machine LF-617 Specification

Model

LF-617

Suitable components

Axial components , resistor , fuse ,etc

Component feeding mode

Tape feeder or vibration bowl feeder (optional )

Suitable tube type

Round Heat shrinkble , teflon tube.

Teflon tube size required

Min 0.5mm+ lead diameter

Forming die

Customized according to requirement( lead pitch is fixed for different dies)

Component exhaust detect

Yes

Tube exhaust detect

Yes

Capacity

Approx 1500 pcs / Hour

Power

1000W

Air requirement

0.4-0.6Mpa

Power

220V,50HZ

machine Size

Approx L1480×W880×H1830mm

Weight

Approx 700KG
